West Coast Mini-Meet...continues in WA for a few days.....
02-12-2008, 06:56 PM
#131
Senior Member
True Car Nut
Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Likes: 0
Received 0 Likes
on
0 Posts
Wish you were here too, Paul. The odd angles are toed in and out because of the valve/port stagger. Just like the grand national.
(message also brought to you by the much better-looking Admin)
(message also brought to you by the much better-looking Admin)
02-12-2008, 09:25 PM
#135
Senior Member
True Car Nut
Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Jim W
Say hi to Kimmy for me!
We don't see her around these parts much anymore.
We don't see her around these parts much anymore.
This is
Jim, believe it or not, Kim asked about you yesterday. Told her you were doing fine, and she puked when she heard you bought a GP.
02-12-2008, 09:41 PM
#136
Senior Member
Expert Gearhead
Pdad aka Billy Wren...lol, nice incognitio work there.
Tell Kim that we couldnt find a decent Bonneville around here, not ONE
Give her a high five for me, she'* probably to old for a hug anyway...
Tell Kim that we couldnt find a decent Bonneville around here, not ONE
Give her a high five for me, she'* probably to old for a hug anyway...
02-12-2008, 09:52 PM
#137
Junior Member
Posts like a Ricer Type-R
Thread Starter
Will do, Jimzilla. She'll be back this coming weekend for another flush of the 'ol ricer trans. Seems to have helped, so we'll go after another 1/3 of the fluid.
Lots of pics will be up later tonight. MAJOR progress pics. Finalizing the IC stuff, things stacked up REALLY nice. Again, Pdad has saved my sore
and back today. Good to have such a damn good wrench around here. Just bouncing stuff off him and fabricating with two opinions is immensely invaluable. Paul, you'd have been very busy here had you made it.

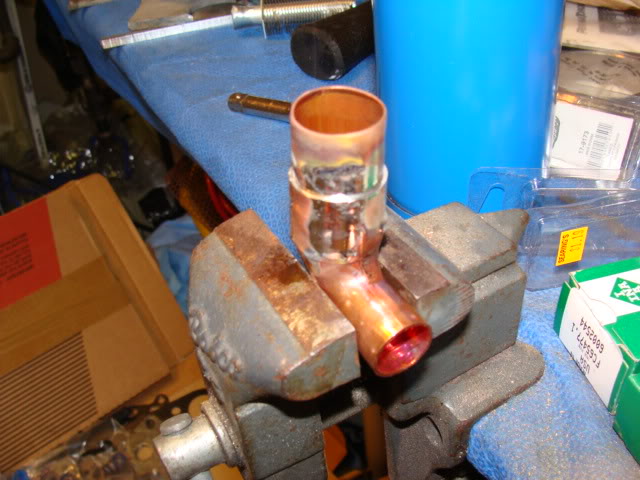

Off to pickup a take 'n bake pizza, then back to soldering the FINAL fitting angles on the IC core.
Pics will be up in a couple hours.
Lots of pics will be up later tonight. MAJOR progress pics. Finalizing the IC stuff, things stacked up REALLY nice. Again, Pdad has saved my sore
and back today. Good to have such a damn good wrench around here. Just bouncing stuff off him and fabricating with two opinions is immensely invaluable. Paul, you'd have been very busy here had you made it.Off to pickup a take 'n bake pizza, then back to soldering the FINAL fitting angles on the IC core.
Pics will be up in a couple hours.
02-12-2008, 10:23 PM
#138
Junior Member
Posts like a Ricer Type-R
Thread Starter

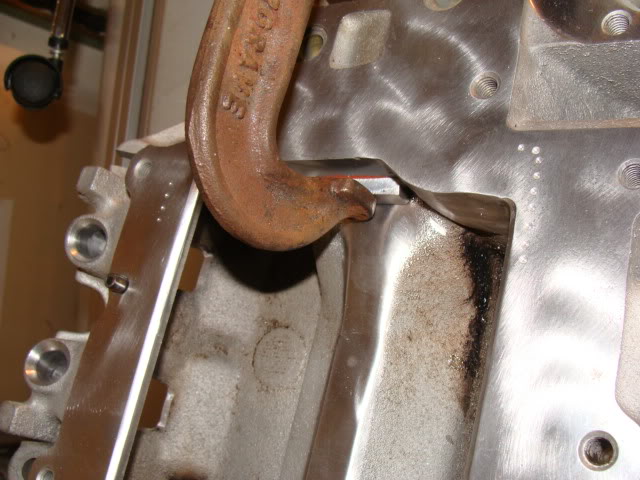

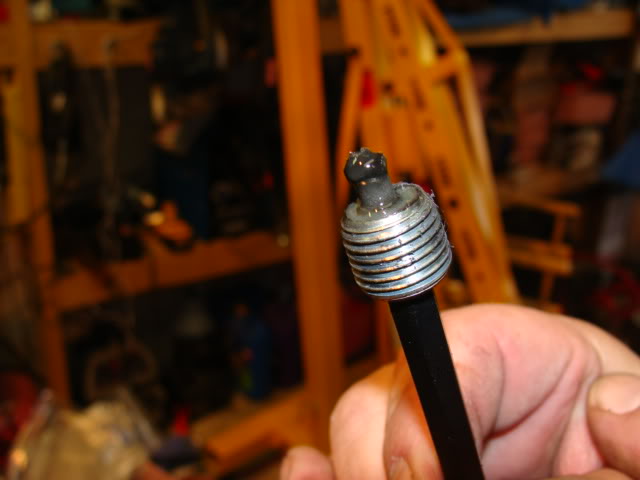

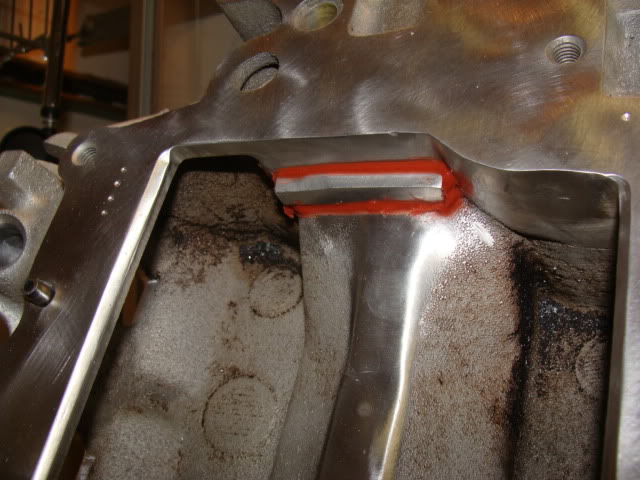

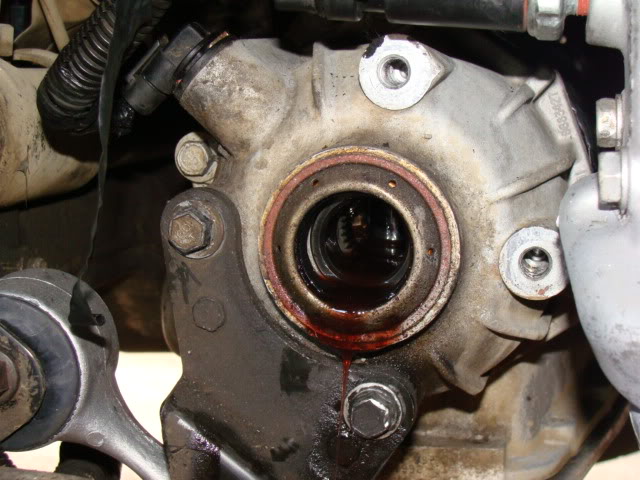

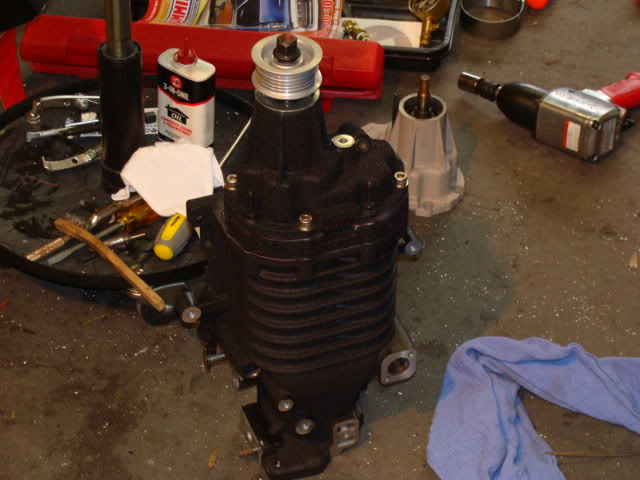

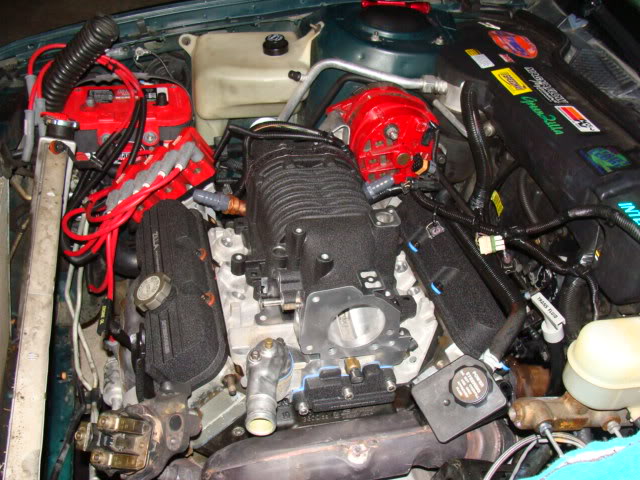

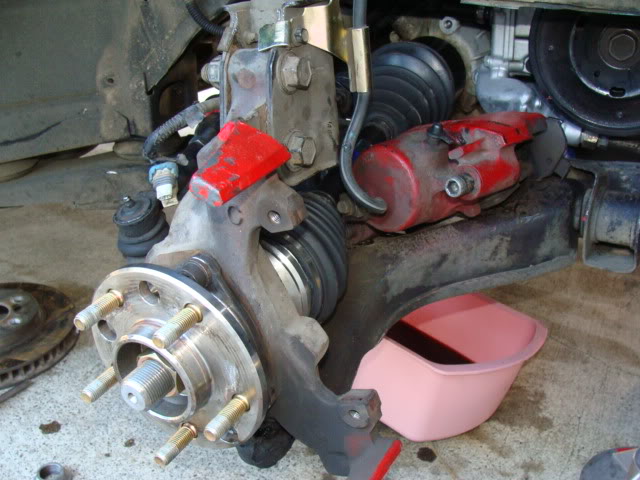

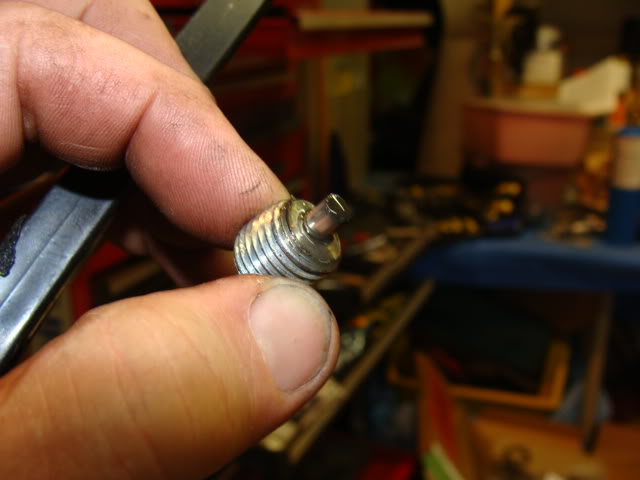

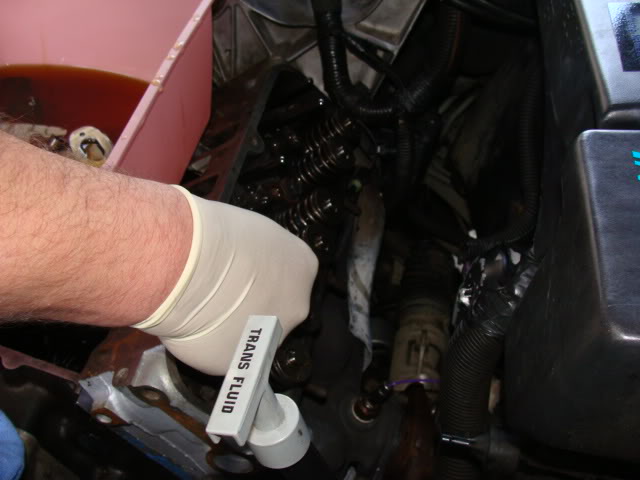

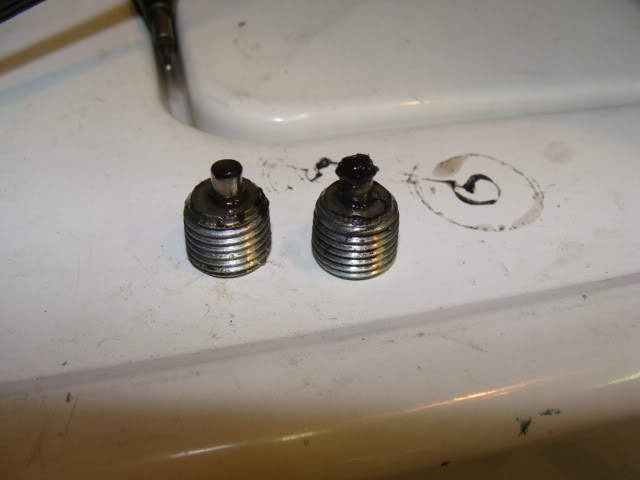

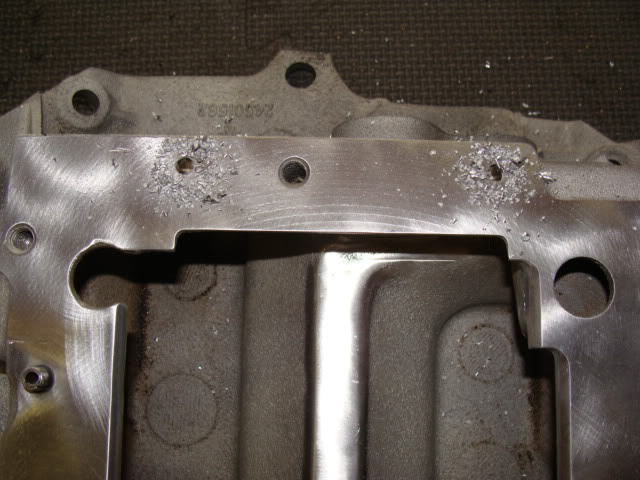

Alotta pics. New axle went in, set up some plugs for the LIM, two to allow holes to solder the final connections, one for the new post-IC air temp probe. Lots of other progress, ask questions if you have any. The LIM and SC pics coming later are only a test-fit for IC inlet and outlet angles. Also shown is what the magnetic nosedrive fill and drain plugs picked up in 1000 miles or so on the Zilla:

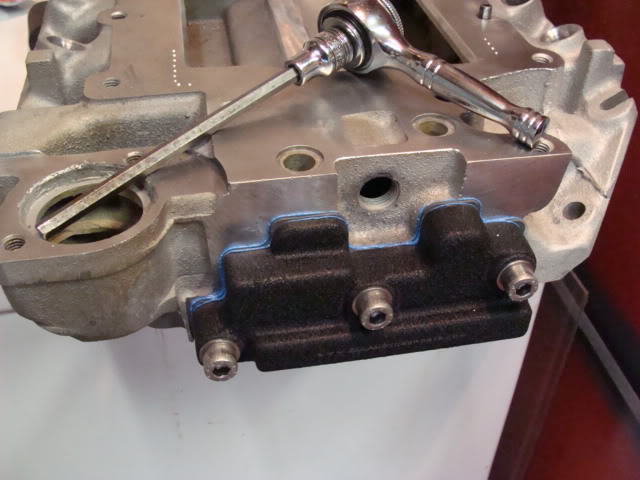

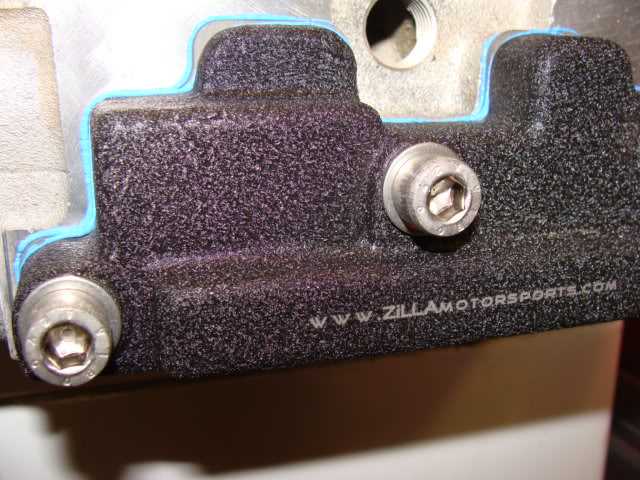

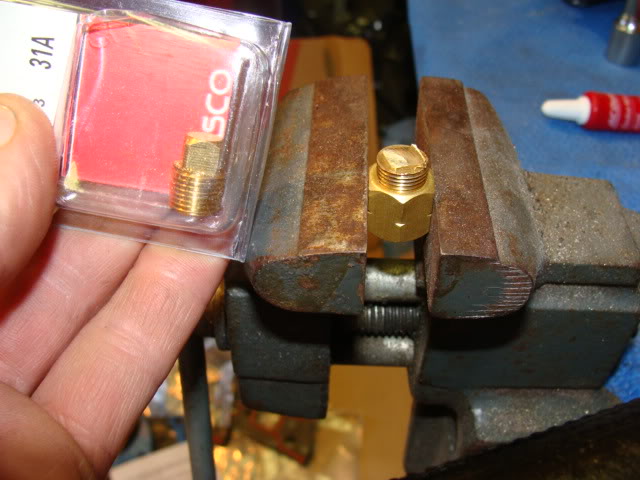

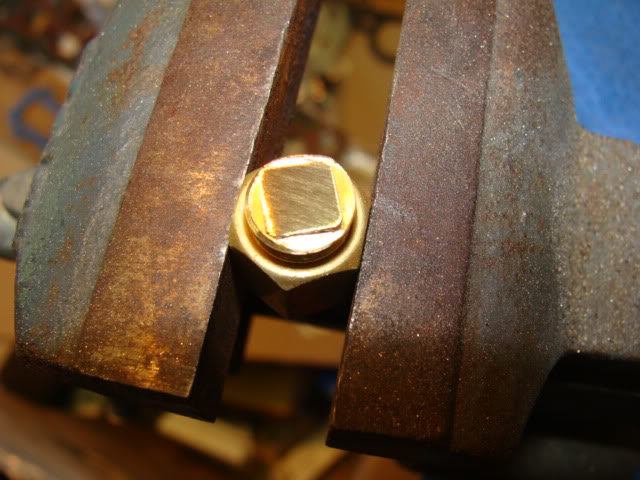

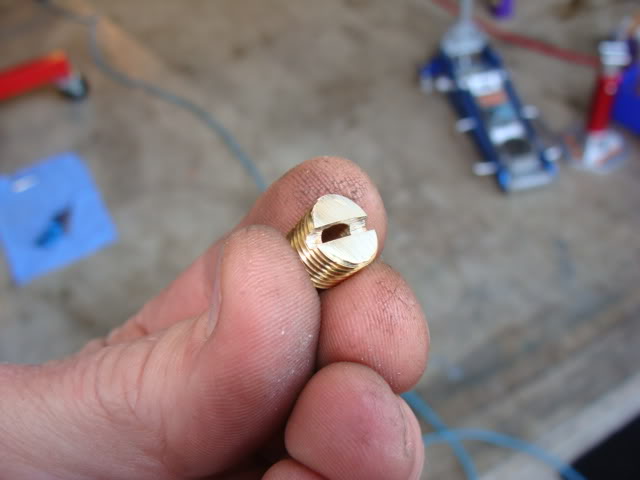

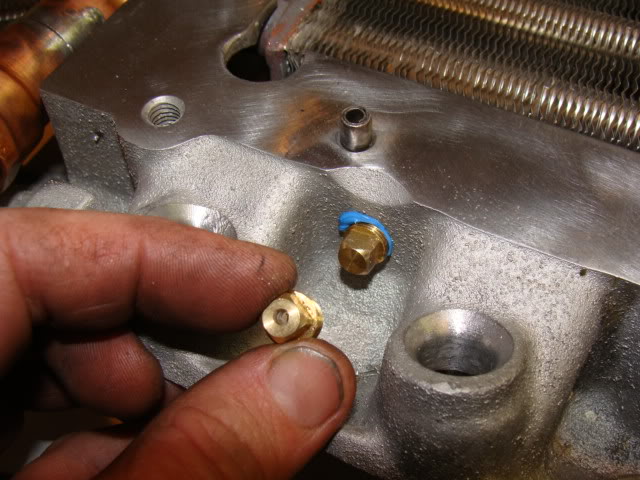

Showing the temporary plug, and the intended plug drilled for the temperature sensor when it arrives:

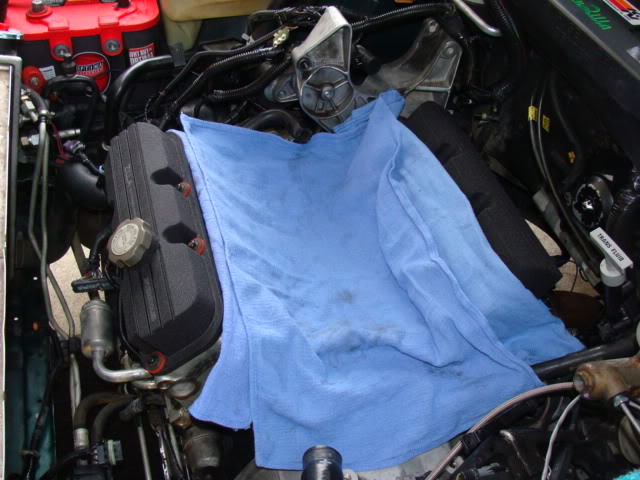

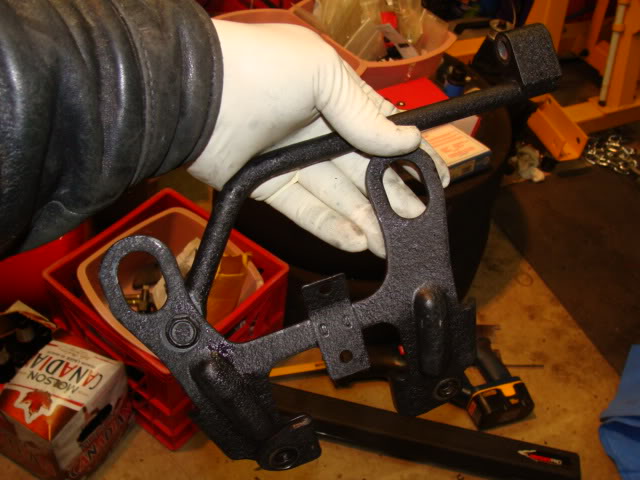

Wrinkle paint held up very well. These hoist brackets put up with install last winter, hoisting out the old, hoisting in the new, and everything in between:

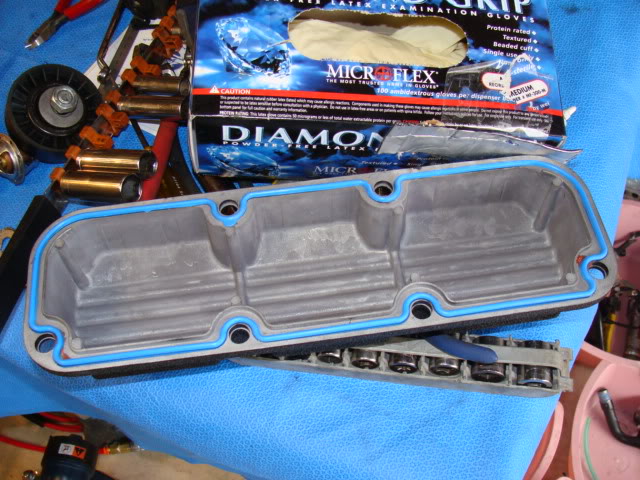

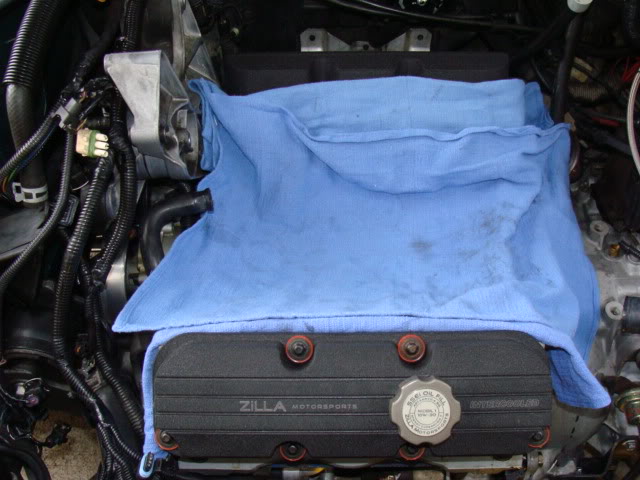

Valve covers shown are the aluminum covers with the wrinkle paint.

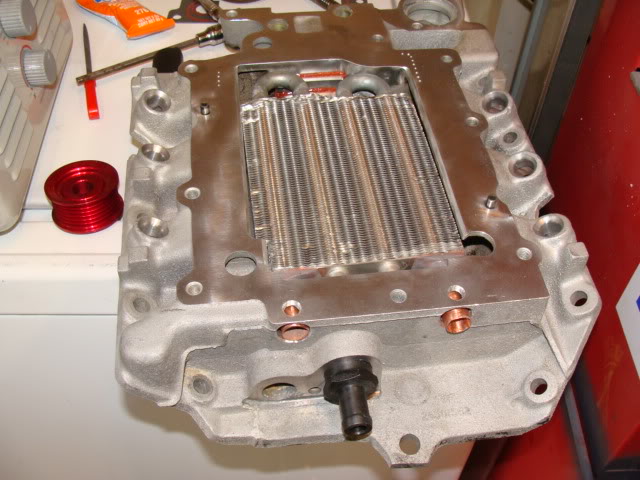

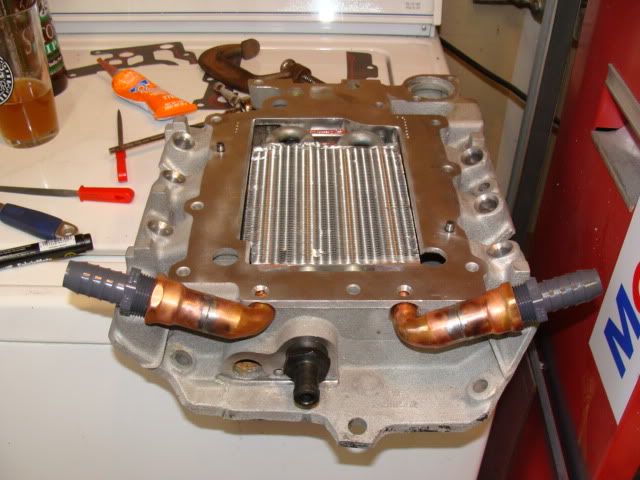

Keep in mind, this intercooler is just a prototype unless it performs flawlessly, and I don't feel like mucking with it any more. It may very likely be re-done inside the LIM before WCBF '08.
Showing the temporary plug, and the intended plug drilled for the temperature sensor when it arrives:
Wrinkle paint held up very well. These hoist brackets put up with install last winter, hoisting out the old, hoisting in the new, and everything in between:
Valve covers shown are the aluminum covers with the wrinkle paint.
Keep in mind, this intercooler is just a prototype unless it performs flawlessly, and I don't feel like mucking with it any more. It may very likely be re-done inside the LIM before WCBF '08.
02-12-2008, 10:45 PM
#140
Junior Member
Join Date: Jun 2002
Posts: 0
Likes: 0
Received 0 Likes
on
0 Posts
I know you guys are probably very tired or drunk as hell but some of the pics need some info.
Like what are those holes above the intercooler feed and return lines and how are your going to seal :?:
What is that brass plug for :?:
Like what are those holes above the intercooler feed and return lines and how are your going to seal :?:
What is that brass plug for :?:
