so i have started the swap of the locking gas door, ELC, FE2 and the HUD yesterday. started at 7 in the am and stopped working at 9pm..... got lots done but still not even close to done..lol
list of things done
Gas door lock wired in
rear FE2 springs installed
rear FE2 sway bar installed
rear air assist struts installed
ELC inflator timer relay that selector valve mounted
ELC height adjustment arm mounted
seats removed
dash removed
ya it was busy
here are some pics
here are the difference between the FE1 bar and the FE2 bar
FE1 on the top FE2 on the bottom
![Name: HPIM1572.jpg
Views: 109
Size: 67.5 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61173d1501332441-great-swap-done-pics-added-pg-2-hpim1572.jpg)
left is the FE1 right is the FE2
![Name: HPIM1573.jpg
Views: 111
Size: 66.3 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61174d1501332441-great-swap-done-pics-added-pg-2-hpim1573.jpg)
![Name: HPIM1574.jpg
Views: 112
Size: 25.4 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61175d1501332441-great-swap-done-pics-added-pg-2-hpim1574.jpg)
JLD is the FE2 JLB is the FE1
![](https://i7.photobucket.com/albums/y285/1993sle2/the%20great%20swap/HPIM1577.jpg)
FE2 on left FE1 on right
![Name: HPIM1578.jpg
Views: 118
Size: 64.4 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61176d1501332441-great-swap-done-pics-added-pg-2-hpim1578.jpg)
Endlinks after 13 years and 90K
Note. This endlink WAS NOT broken the bolt snapped on removal
passenger side
![Name: HPIM1579.jpg
Views: 113
Size: 130.6 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61177d1501332441-great-swap-done-pics-added-pg-2-hpim1579.jpg)
driver side
![Name: HPIM1582.jpg
Views: 105
Size: 33.4 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61178d1501332441-great-swap-done-pics-added-pg-2-hpim1582.jpg)
rear springs
little note about the rear springs, i really looked closely at the springs before i put them on, the coil diameter was exactly the same...now it gets interesting....there were 8 coils that made up the FE1 but only 7 that mnade up the FE2......both of my springs measured in at 15mm
![Name: HPIM1583.jpg
Views: 112
Size: 46.8 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61179d1501332441-great-swap-done-pics-added-pg-2-hpim1583.jpg)
FE1 rear spring
![Name: HPIM1587.jpg
Views: 114
Size: 32.5 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61180d1501332441-great-swap-done-pics-added-pg-2-hpim1587.jpg)
FE2 rear spring
![Name: HPIM1588.jpg
Views: 116
Size: 27.9 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61181d1501332441-great-swap-done-pics-added-pg-2-hpim1588.jpg)
inflator timer relay and the selector valve
![](https://i7.photobucket.com/albums/y285/1993sle2/the%20great%20swap/HPIM1592.jpg)
rear FE2 spring and the ELC arm
![Name: HPIM1593.jpg
Views: 123
Size: 62.2 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61182d1501332441-great-swap-done-pics-added-pg-2-hpim1593.jpg)
![Name: HPIM1594.jpg
Views: 31
Size: 57.1 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61183d1501332441-great-swap-done-pics-added-pg-2-hpim1594.jpg)
dash gone
![Name: HPIM1595.jpg
Views: 38
Size: 74.7 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61184d1501332441-great-swap-done-pics-added-pg-2-hpim1595.jpg)
![Name: HPIM1597.jpg
Views: 39
Size: 73.3 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61185d1501332441-great-swap-done-pics-added-pg-2-hpim1597.jpg)
and stick a fork in me....im done for tonight
list of things done
Gas door lock wired in
rear FE2 springs installed
rear FE2 sway bar installed
rear air assist struts installed
ELC inflator timer relay that selector valve mounted
ELC height adjustment arm mounted
seats removed
dash removed
ya it was busy
here are some pics
here are the difference between the FE1 bar and the FE2 bar
FE1 on the top FE2 on the bottom
![Name: HPIM1572.jpg
Views: 109
Size: 67.5 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61173d1501332441-great-swap-done-pics-added-pg-2-hpim1572.jpg)
left is the FE1 right is the FE2
![Name: HPIM1573.jpg
Views: 111
Size: 66.3 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61174d1501332441-great-swap-done-pics-added-pg-2-hpim1573.jpg)
![Name: HPIM1574.jpg
Views: 112
Size: 25.4 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61175d1501332441-great-swap-done-pics-added-pg-2-hpim1574.jpg)
JLD is the FE2 JLB is the FE1
![](https://i7.photobucket.com/albums/y285/1993sle2/the%20great%20swap/HPIM1577.jpg)
FE2 on left FE1 on right
![Name: HPIM1578.jpg
Views: 118
Size: 64.4 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61176d1501332441-great-swap-done-pics-added-pg-2-hpim1578.jpg)

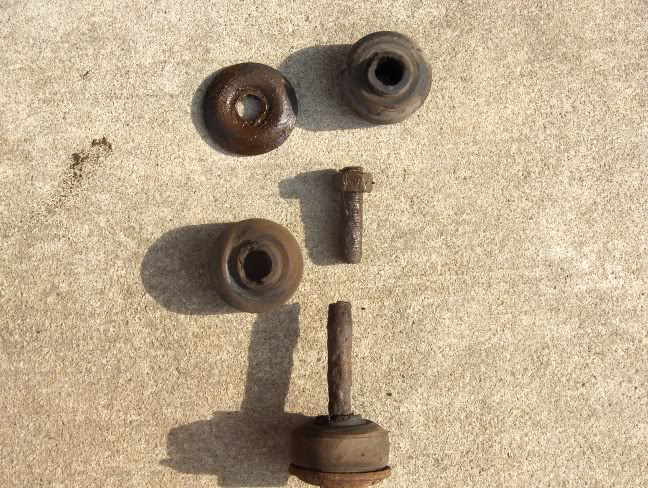

Endlinks after 13 years and 90K
Note. This endlink WAS NOT broken the bolt snapped on removal
passenger side
![Name: HPIM1579.jpg
Views: 113
Size: 130.6 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61177d1501332441-great-swap-done-pics-added-pg-2-hpim1579.jpg)
driver side
![Name: HPIM1582.jpg
Views: 105
Size: 33.4 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61178d1501332441-great-swap-done-pics-added-pg-2-hpim1582.jpg)
rear springs
little note about the rear springs, i really looked closely at the springs before i put them on, the coil diameter was exactly the same...now it gets interesting....there were 8 coils that made up the FE1 but only 7 that mnade up the FE2......both of my springs measured in at 15mm
![Name: HPIM1583.jpg
Views: 112
Size: 46.8 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61179d1501332441-great-swap-done-pics-added-pg-2-hpim1583.jpg)
FE1 rear spring
![Name: HPIM1587.jpg
Views: 114
Size: 32.5 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61180d1501332441-great-swap-done-pics-added-pg-2-hpim1587.jpg)

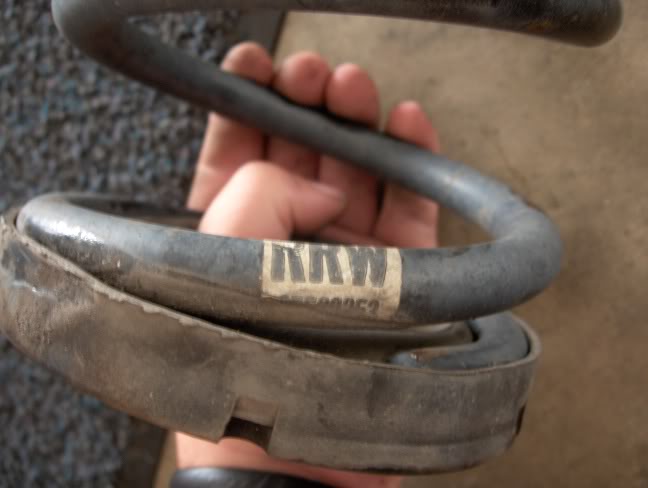

FE2 rear spring
![Name: HPIM1588.jpg
Views: 116
Size: 27.9 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61181d1501332441-great-swap-done-pics-added-pg-2-hpim1588.jpg)
inflator timer relay and the selector valve
![](https://i7.photobucket.com/albums/y285/1993sle2/the%20great%20swap/HPIM1592.jpg)
rear FE2 spring and the ELC arm
![Name: HPIM1593.jpg
Views: 123
Size: 62.2 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61182d1501332441-great-swap-done-pics-added-pg-2-hpim1593.jpg)
![Name: HPIM1594.jpg
Views: 31
Size: 57.1 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61183d1501332441-great-swap-done-pics-added-pg-2-hpim1594.jpg)

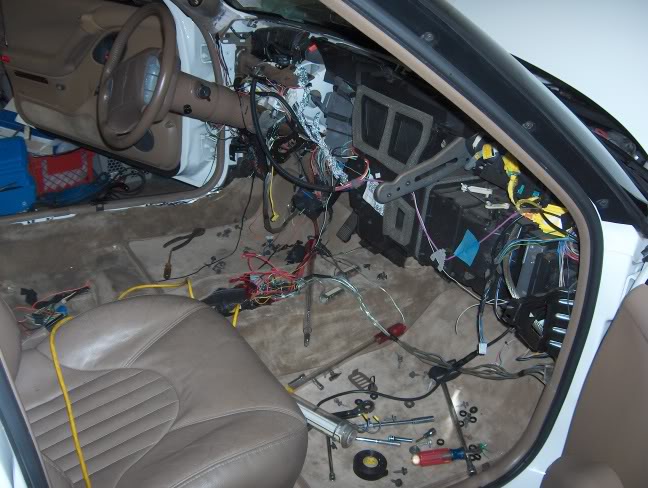

dash gone
![Name: HPIM1595.jpg
Views: 38
Size: 74.7 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61184d1501332441-great-swap-done-pics-added-pg-2-hpim1595.jpg)
![Name: HPIM1597.jpg
Views: 39
Size: 73.3 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61185d1501332441-great-swap-done-pics-added-pg-2-hpim1597.jpg)
and stick a fork in me....im done for tonight
![Name: HPIM1599.jpg
Views: 31
Size: 45.1 KB](https://www.gmforum.com/attachments/your-ride-gm-pictures-videos-89/61186d1501332441-great-swap-done-pics-added-pg-2-hpim1599.jpg)
