My 1963 and 1964 Pontiac Parisienne projects
#11
Senior Member
Posts like a Turbo

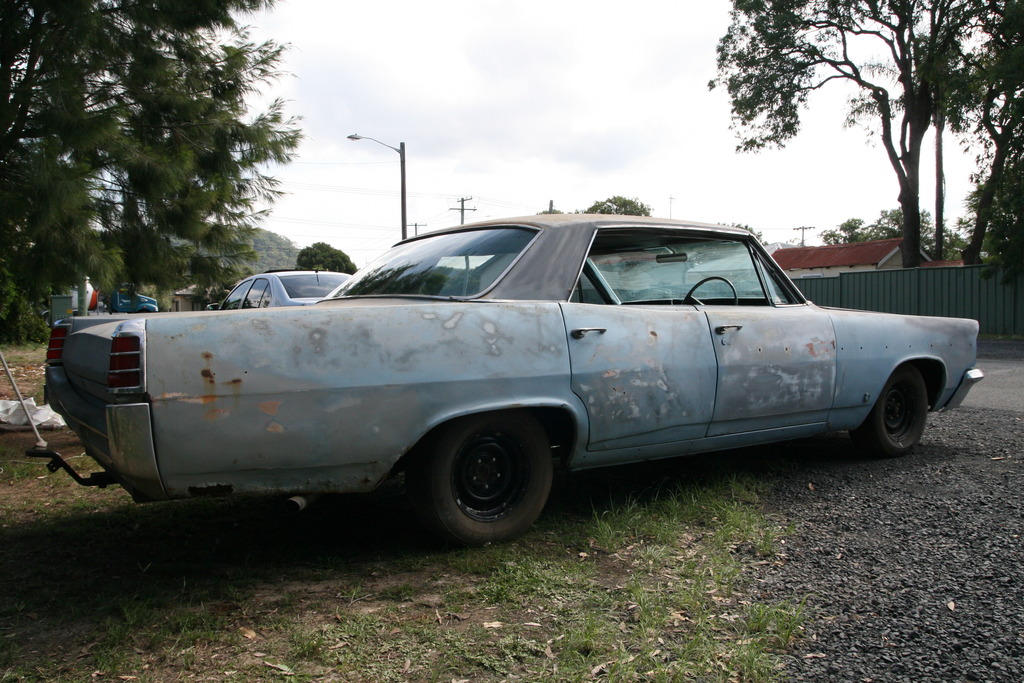

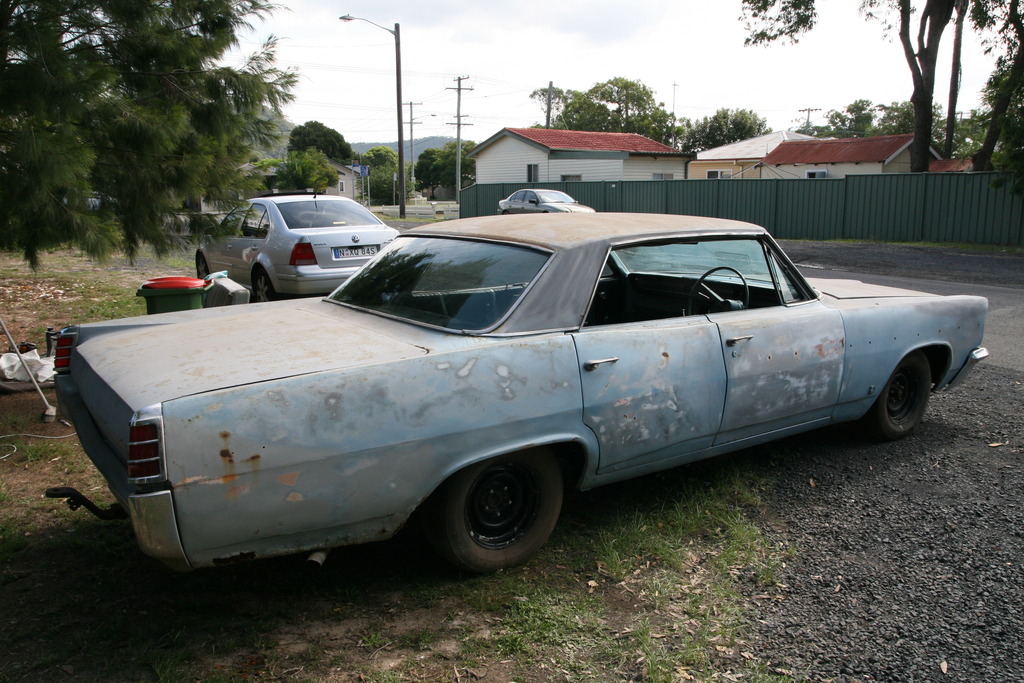

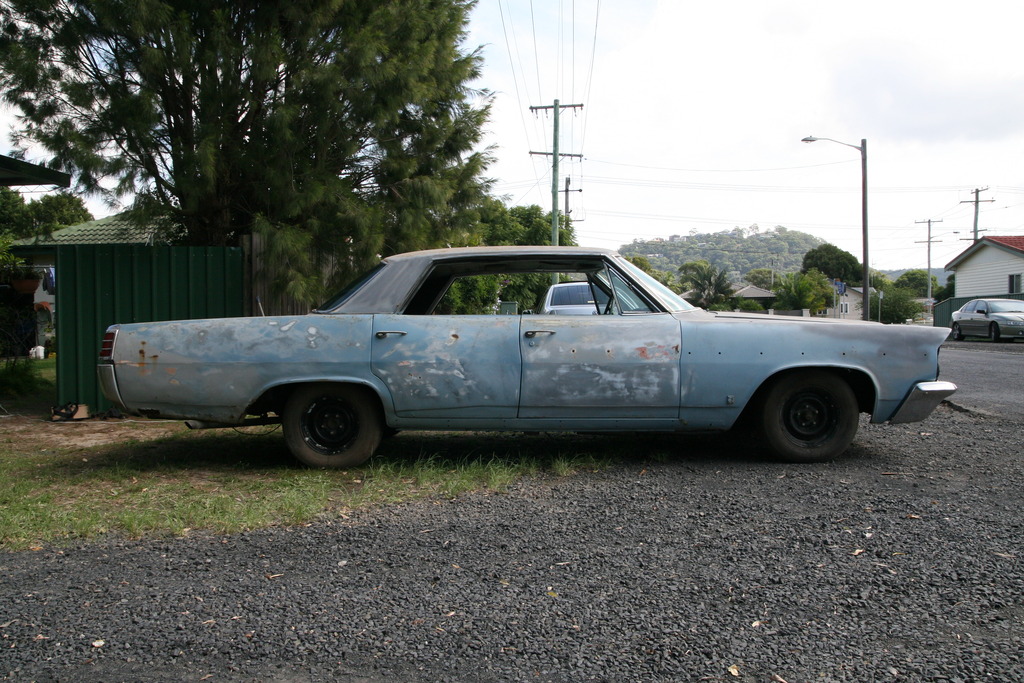

Your brothers for sure, not sure about yours without seeing the full body shot. But I'm sure it is, since it came with the Chevy motor. One way to know for sure. Look at the frame right in the middle. If the frame is a big heavy X frame with a center bearing support for the driveshaft. Then it is the narrower Chevy frame. The Pontiac frame would be a perimeter frame. Meaning, the frame would kick outwards (a 90 degree outward turn) right at the firewall and run right behind the rocker panels. Then it kicks back in right in front of the rear tires.
Mark
Mark
Mark
Mark
#12
Senior Member
True Car Nut
I think he was saying you have a Pontiac that was built on a Chevy frame, with a Chevy drive-train, since the Chevy frame was a bit narrower than the Pontiac Wide-Track frames when they came out.
Oh wait, just noticed Mark already replied, my bad, I have been having internet issues lately.
Oh wait, just noticed Mark already replied, my bad, I have been having internet issues lately.
The following users liked this post:
WilliamE (02-14-2016)
#14
Haha thanks guys. I'm pretty sure I must also have the Chevy frame, as I have a center bearing support crossmember for the 2 piece tailshaft?
Do the wide track bodies not have this?
Do the wide track bodies not have this?
#15
Senior Member
Posts like a Turbo
Correct. The true wide body US Pontiac frame uses a perimeter frame, so there is no X down the middle, and the perimeter frame uses a long, one piece driveshaft. So you definitely have the Chevy frame too. Which means it has the weaker Chevy 10 bolt Hotchkiss style drop out center section rear differential. The Pontiacs had a much stronger rear differential. The Pontiac rears were even used on early dragsters because they were so strong.
Mark
Mark
