engine performance wiring diagram
The following users liked this post:
CathedralCub (07-13-2024)
#2
Senior Member
![](https://www.gmforum.com/images/ranks/veteran_marine_corp.png)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
There'* many. Click on the breadcrumbs to view them. Entire manual is there.
Operation CHARM: Car repair manuals for everyone.
Home >> Pontiac >> 2005 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls Diagram 1![](https://charm.li/images/DM15Q313/gm150/940668581/)
Next Diagram Engine Controls Diagram 2
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
pro multis · About Operation CHARM
Operation CHARM: Car repair manuals for everyone.
Home >> Pontiac >> 2005 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls Diagram 1

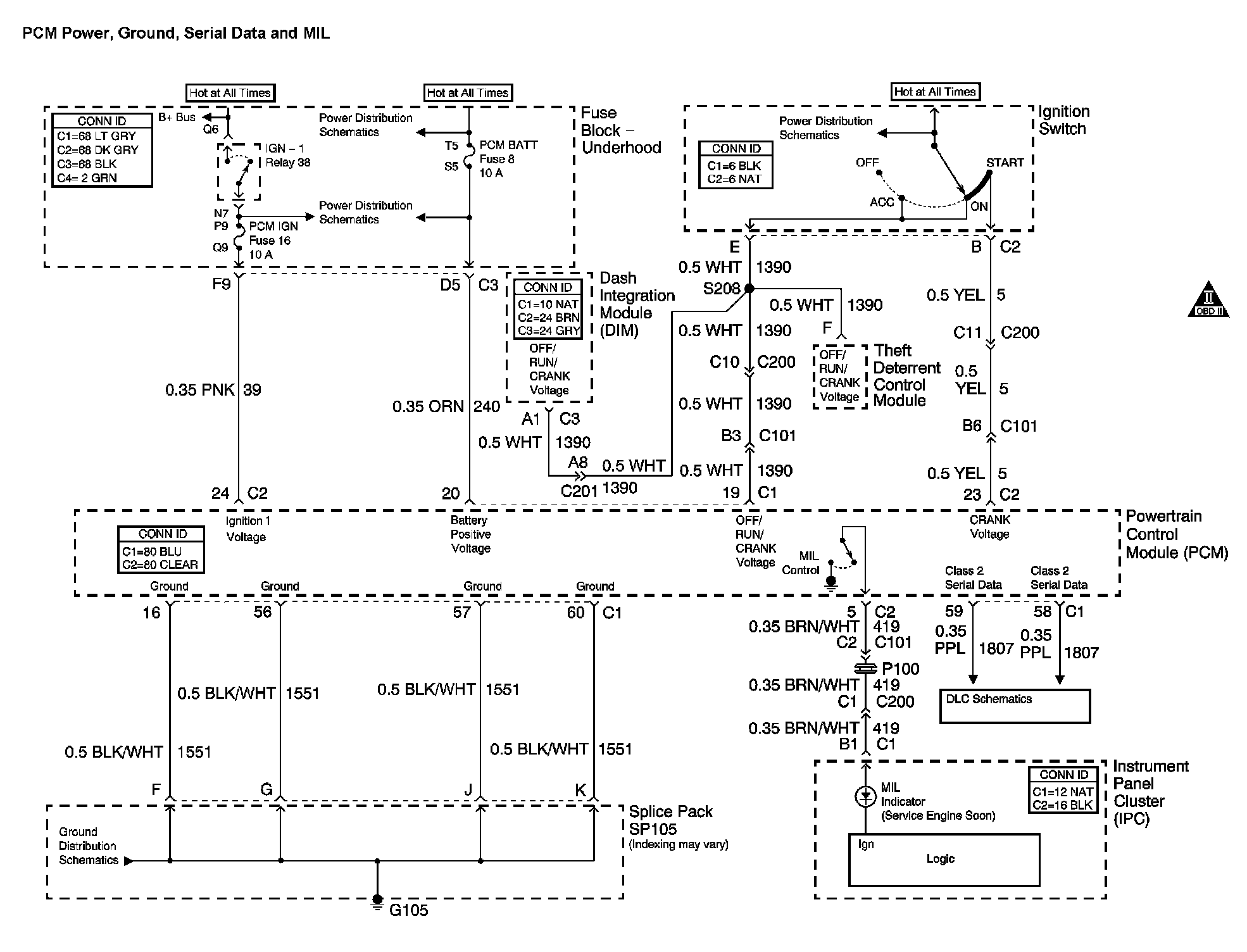

Engine Controls Diagram 1
Engine Controls Diagram 1:
Next Diagram Engine Controls Diagram 2
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
pro multis · About Operation CHARM
