Can't figure out how to remove Blower Motor Resistor from my '04 Grand Prix
#1
![Default](https://www.gmforum.com/images/icons/icon1.gif)

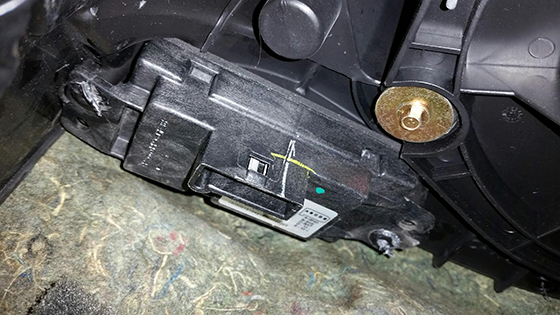

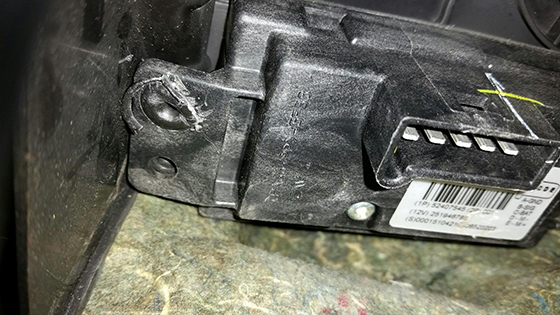

I posted this earlier but didn't have great pictures. I am trying to remove the Blower Motor Resistor on my '04 Grand Prix. The location and screws are apparently a little different from the '03 and earlier models (which are easier) because they face more forward I believe and you can remove the screws with a nut driver. I can't for the life of me figure it out. I have tried every size allen wrench that fits in the "screw" and a few small flat head screw drivers as well. I even tried to just pry the screws out (which is why they look scratched up) but there is no give at all. On the '04, it is located at the very back under the passenger dash, facing straight down. Pretty much touching the firewall and the floor. Almost no room at all to get a tool of any good size in there, certainly not my head to get a good look at the screws. My phone can barely get back there at all to take a picture.
I'd really like to get this pulled out without taking it to a shop, so any suggestions would be much appreciated!
I posted this earlier but didn't have great pictures. I am trying to remove the Blower Motor Resistor on my '04 Grand Prix. The location and screws are apparently a little different from the '03 and earlier models (which are easier) because they face more forward I believe and you can remove the screws with a nut driver. I can't for the life of me figure it out. I have tried every size allen wrench that fits in the "screw" and a few small flat head screw drivers as well. I even tried to just pry the screws out (which is why they look scratched up) but there is no give at all. On the '04, it is located at the very back under the passenger dash, facing straight down. Pretty much touching the firewall and the floor. Almost no room at all to get a tool of any good size in there, certainly not my head to get a good look at the screws. My phone can barely get back there at all to take a picture.
I'd really like to get this pulled out without taking it to a shop, so any suggestions would be much appreciated!
![](https://www.gmforum.com/attachments/pontiac-168/14011-cant-figure-out-how-remove-blower-motor-resistor-my-04-grand-prix-1myphy0.jpg?dateline=1452300549)
I'd really like to get this pulled out without taking it to a shop, so any suggestions would be much appreciated!
I posted this earlier but didn't have great pictures. I am trying to remove the Blower Motor Resistor on my '04 Grand Prix. The location and screws are apparently a little different from the '03 and earlier models (which are easier) because they face more forward I believe and you can remove the screws with a nut driver. I can't for the life of me figure it out. I have tried every size allen wrench that fits in the "screw" and a few small flat head screw drivers as well. I even tried to just pry the screws out (which is why they look scratched up) but there is no give at all. On the '04, it is located at the very back under the passenger dash, facing straight down. Pretty much touching the firewall and the floor. Almost no room at all to get a tool of any good size in there, certainly not my head to get a good look at the screws. My phone can barely get back there at all to take a picture.
I'd really like to get this pulled out without taking it to a shop, so any suggestions would be much appreciated!
![](https://www.gmforum.com/attachments/pontiac-168/14011-cant-figure-out-how-remove-blower-motor-resistor-my-04-grand-prix-1myphy0.jpg?dateline=1452300549)
