Been getting the rails welded in.

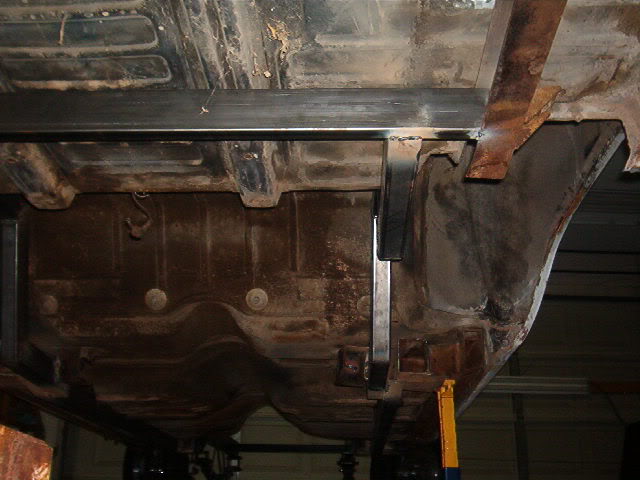

![Name: rollerrockers2002.jpg
Views: 407
Size: 48.6 KB](https://www.gmforum.com/attachments/pontiac-168/19463d1501209658-1963-pontiac-catalina-massive-project-build-thread-rollerrockers2002.jpg)
![Name: rollerrockers2006.jpg
Views: 431
Size: 45.8 KB](https://www.gmforum.com/attachments/pontiac-168/19464d1501209658-1963-pontiac-catalina-massive-project-build-thread-rollerrockers2006.jpg)
Took off the trunk and cut out the inside reinforcement panel. Cut the weight in half. Then I removed the hinges and all the parafinalia that supports them.
![](https://i601.photobucket.com/albums/tt97/marks73turbota/rollerrockers2001.jpg)

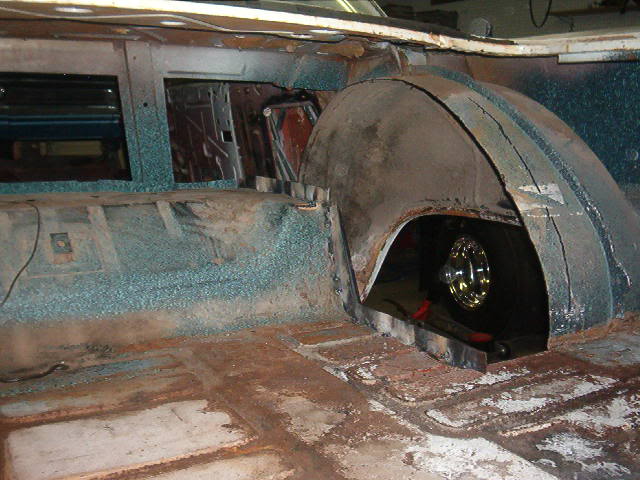

Then I spent today cutting out the passenger side wheelwell and lined the floor cut edge with angle to support the new inner wall of the wheel tub.
![Name: WHEELWELLS001.jpg
Views: 396
Size: 59.0 KB](https://www.gmforum.com/attachments/pontiac-168/19465d1501209658-1963-pontiac-catalina-massive-project-build-thread-wheelwells001.jpg)
Next I have to cut out the drivers side. Then I can finally get the tires/wheels into the their final resting place and measure for the width. Then I can take the rear end to the guy to widen it. Once that is done I can get the axles and I can mock up the rear placement and finish putting in the cross members for the springs and shocks. I'm trying to get it to a roller condition so I can take it to a Pontiac show around Easter.
Mark L
![Name: rollerrockers2002.jpg
Views: 407
Size: 48.6 KB](https://www.gmforum.com/attachments/pontiac-168/19463d1501209658-1963-pontiac-catalina-massive-project-build-thread-rollerrockers2002.jpg)
![Name: rollerrockers2006.jpg
Views: 431
Size: 45.8 KB](https://www.gmforum.com/attachments/pontiac-168/19464d1501209658-1963-pontiac-catalina-massive-project-build-thread-rollerrockers2006.jpg)
Took off the trunk and cut out the inside reinforcement panel. Cut the weight in half. Then I removed the hinges and all the parafinalia that supports them.
![](https://i601.photobucket.com/albums/tt97/marks73turbota/rollerrockers2001.jpg)
Then I spent today cutting out the passenger side wheelwell and lined the floor cut edge with angle to support the new inner wall of the wheel tub.
![Name: WHEELWELLS001.jpg
Views: 396
Size: 59.0 KB](https://www.gmforum.com/attachments/pontiac-168/19465d1501209658-1963-pontiac-catalina-massive-project-build-thread-wheelwells001.jpg)

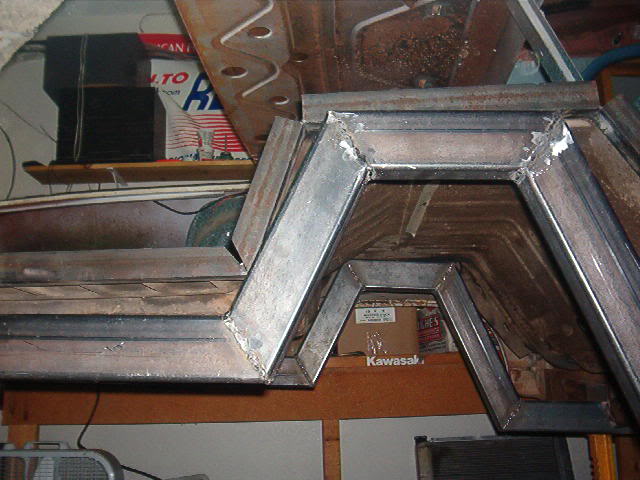

![Name: WHEELWELLS003.jpg
Views: 409
Size: 53.9 KB](https://www.gmforum.com/attachments/pontiac-168/19466d1501209658-1963-pontiac-catalina-massive-project-build-thread-wheelwells003.jpg)
Next I have to cut out the drivers side. Then I can finally get the tires/wheels into the their final resting place and measure for the width. Then I can take the rear end to the guy to widen it. Once that is done I can get the axles and I can mock up the rear placement and finish putting in the cross members for the springs and shocks. I'm trying to get it to a roller condition so I can take it to a Pontiac show around Easter.
Mark L
#33
Senior Member
Posts like a Turbo
Thread Starter
![Default](https://www.gmforum.com/images/icons/icon1.gif)

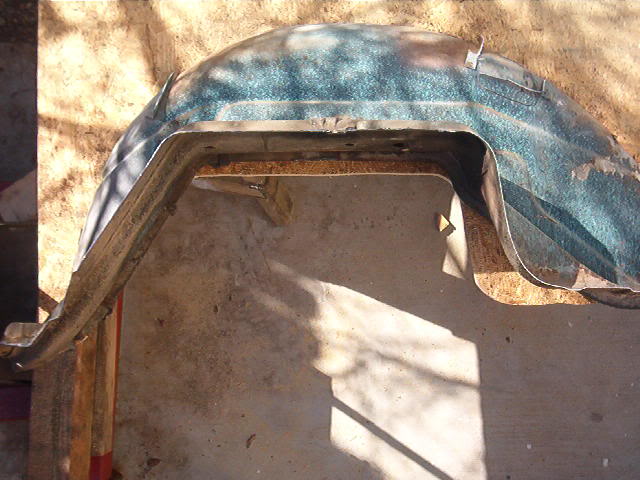

Did some more on the tubs. I used the old metal I cut out to shape the bottom of the tub form (out of press board),
![Name: TUBBUILD001.jpg
Views: 399
Size: 56.1 KB](https://www.gmforum.com/attachments/pontiac-168/19416d1501209586-1963-pontiac-catalina-massive-project-build-thread-tubbuild001.jpg)
Then turned it around to form the top curve of the form. Which came out like this.
![Name: TUBBUILD002.jpg
Views: 406
Size: 51.0 KB](https://www.gmforum.com/attachments/pontiac-168/19417d1501209586-1963-pontiac-catalina-massive-project-build-thread-tubbuild002.jpg)
This is how it ended up inside the trunk against the angle iron edges.
![Name: TUBBUILD004.jpg
Views: 368
Size: 56.2 KB](https://www.gmforum.com/attachments/pontiac-168/19418d1501209586-1963-pontiac-catalina-massive-project-build-thread-tubbuild004.jpg)
![Name: TUBBUILD005.jpg
Views: 430
Size: 58.2 KB](https://www.gmforum.com/attachments/pontiac-168/19419d1501209586-1963-pontiac-catalina-massive-project-build-thread-tubbuild005.jpg)
Once I'm happy with the fit I'll form the wall of the tub on the form with an extra 1.5 inches over the top. I'll use the form to bend and hammer the top overlap over the top of the form to make the top angle. Then I'll form the wide curved tub by laying it over the top of the old wheelwell still remaining. And span across over the form with another added 1.5 overlap. I'll bend and hammer that edge over the form again forming two overlapping edges that will get tack welded together once everything is in place.
I hope. I did that on my '67 Nova years ago and it turned out well.
Mark L
![Name: TUBBUILD001.jpg
Views: 399
Size: 56.1 KB](https://www.gmforum.com/attachments/pontiac-168/19416d1501209586-1963-pontiac-catalina-massive-project-build-thread-tubbuild001.jpg)
Then turned it around to form the top curve of the form. Which came out like this.
![Name: TUBBUILD002.jpg
Views: 406
Size: 51.0 KB](https://www.gmforum.com/attachments/pontiac-168/19417d1501209586-1963-pontiac-catalina-massive-project-build-thread-tubbuild002.jpg)
This is how it ended up inside the trunk against the angle iron edges.
![Name: TUBBUILD004.jpg
Views: 368
Size: 56.2 KB](https://www.gmforum.com/attachments/pontiac-168/19418d1501209586-1963-pontiac-catalina-massive-project-build-thread-tubbuild004.jpg)
![Name: TUBBUILD005.jpg
Views: 430
Size: 58.2 KB](https://www.gmforum.com/attachments/pontiac-168/19419d1501209586-1963-pontiac-catalina-massive-project-build-thread-tubbuild005.jpg)
Once I'm happy with the fit I'll form the wall of the tub on the form with an extra 1.5 inches over the top. I'll use the form to bend and hammer the top overlap over the top of the form to make the top angle. Then I'll form the wide curved tub by laying it over the top of the old wheelwell still remaining. And span across over the form with another added 1.5 overlap. I'll bend and hammer that edge over the form again forming two overlapping edges that will get tack welded together once everything is in place.
I hope. I did that on my '67 Nova years ago and it turned out well.
Mark L
#35
Senior Member
Posts like a Turbo
Thread Starter
![Default](https://www.gmforum.com/images/icons/icon1.gif)
A little 110 Sears using .030 wire. I aso have a lincoln 225 AC stick welder but it is older than dirt. Bought it from a guy back in '72 that was mating two smashed Road Runners together to sell. He'd buy up everything that was smashed front or rear, cut them at a certain spot and mate the two good halves back together. When I got it from him it was old.

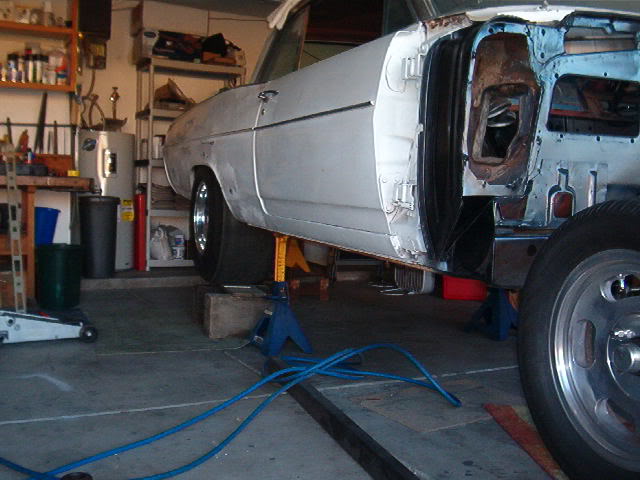

I got the drivers side all cut out, the inner tub wall done (again with the drivers side cut out making a form) and finally put in both rear wheels/rims to get a final rear axle width. Still need to build and install the tubs.The axle is getting widened right now. This is the final placement of the tire/rim unit.

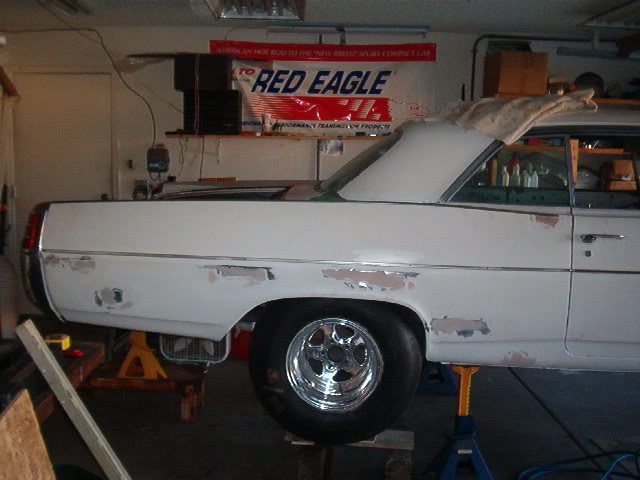

![Name: TIRESANDWHEELWELLS001.jpg
Views: 422
Size: 52.1 KB](https://www.gmforum.com/attachments/pontiac-168/19159d1501209194-1963-pontiac-catalina-massive-project-build-thread-tiresandwheelwells001.jpg)
![Name: TIRESANDWHEELWELLS002.jpg
Views: 425
Size: 43.6 KB](https://www.gmforum.com/attachments/pontiac-168/19160d1501209194-1963-pontiac-catalina-massive-project-build-thread-tiresandwheelwells002.jpg)

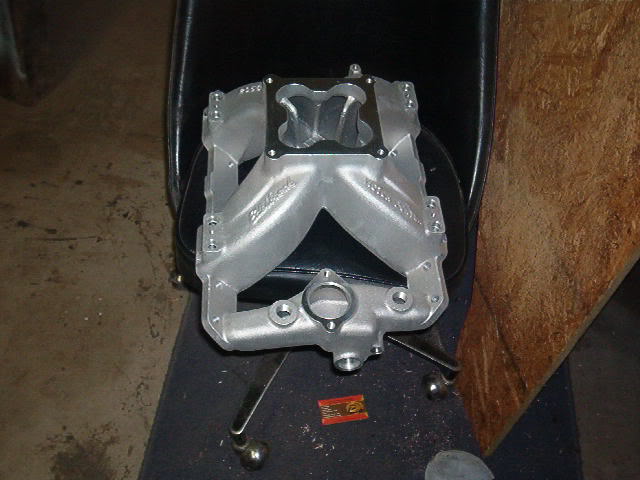

Edelbrock was having a firesale of their dominator flanged EFI Victor manifolds for $168.00. So I had to jump at that. So now I'm tryig to figure out how to finance an EFI changeover. This is th emanifold.
![Name: EFIMAnifold001.jpg
Views: 415
Size: 44.3 KB](https://www.gmforum.com/attachments/pontiac-168/19161d1501209194-1963-pontiac-catalina-massive-project-build-thread-efimanifold001.jpg)
So I'm moving right along. Mark L
I got the drivers side all cut out, the inner tub wall done (again with the drivers side cut out making a form) and finally put in both rear wheels/rims to get a final rear axle width. Still need to build and install the tubs.The axle is getting widened right now. This is the final placement of the tire/rim unit.
![Name: TIRESANDWHEELWELLS001.jpg
Views: 422
Size: 52.1 KB](https://www.gmforum.com/attachments/pontiac-168/19159d1501209194-1963-pontiac-catalina-massive-project-build-thread-tiresandwheelwells001.jpg)
![Name: TIRESANDWHEELWELLS002.jpg
Views: 425
Size: 43.6 KB](https://www.gmforum.com/attachments/pontiac-168/19160d1501209194-1963-pontiac-catalina-massive-project-build-thread-tiresandwheelwells002.jpg)
Edelbrock was having a firesale of their dominator flanged EFI Victor manifolds for $168.00. So I had to jump at that. So now I'm tryig to figure out how to finance an EFI changeover. This is th emanifold.
![Name: EFIMAnifold001.jpg
Views: 415
Size: 44.3 KB](https://www.gmforum.com/attachments/pontiac-168/19161d1501209194-1963-pontiac-catalina-massive-project-build-thread-efimanifold001.jpg)
So I'm moving right along. Mark L
#37
Senior Member
Posts like a Turbo
Thread Starter
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Hey guys. So sorry for not keeping up. I've been building all along but never remembered to come back to this board. I've been keeping a journal on several other boards blew out the previous hard drive and I'm still recovering some files. Found an old copy of the desktop and I saw your board again.
Basically I got most of the frame all done except for going back under and gusseting the weld seams. I still have to make a crossmember over the rear end for the shocks and springs. I have the DOM tubing to build the ladder bars but have not started that yet. Biggest accomplishments have been getting the rearend widened to fit the widetrack Pontiac. The rearend guy laughed his *** off when I told him I had to widen it. Said he'* never widened one before.
![Name: morewheelwells006.jpg
Views: 469
Size: 54.5 KB](https://www.gmforum.com/attachments/pontiac-168/17813d1501206906-1963-pontiac-catalina-massive-project-build-thread-morewheelwells006.jpg)

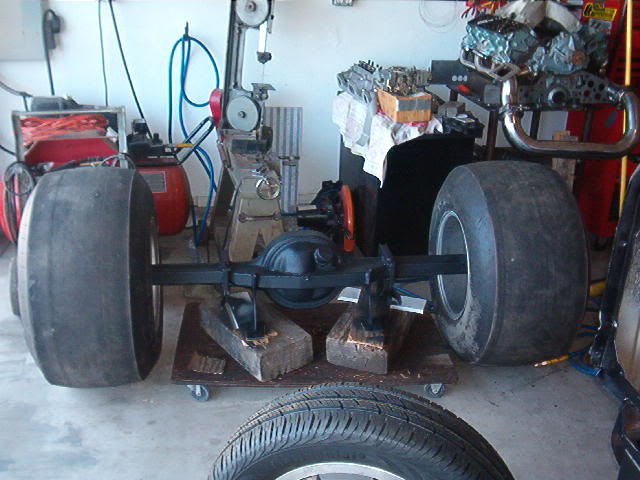

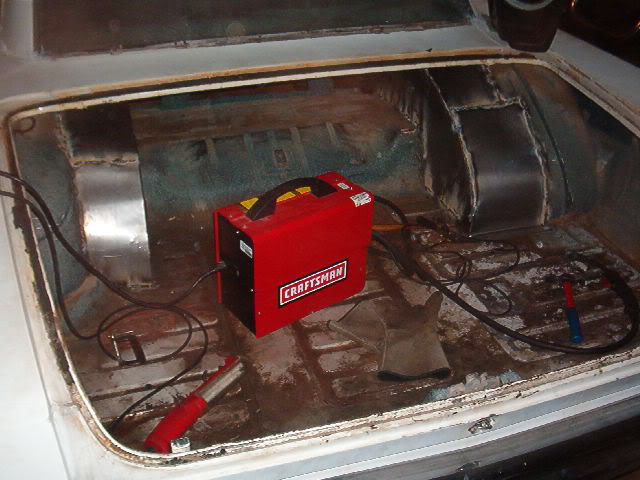

I got all the rear wheelwells tubbed and painted. Then I built the rear package shelf and seat back firewall. Still working onthat stuff.
![Name: morewheelwells003.jpg
Views: 453
Size: 48.1 KB](https://www.gmforum.com/attachments/pontiac-168/17814d1501206906-1963-pontiac-catalina-massive-project-build-thread-morewheelwells003.jpg)
![Name: morewheelwells002.jpg
Views: 415
Size: 55.4 KB](https://www.gmforum.com/attachments/pontiac-168/17815d1501206906-1963-pontiac-catalina-massive-project-build-thread-morewheelwells002.jpg)
![Name: Interiortins001.jpg
Views: 415
Size: 43.1 KB](https://www.gmforum.com/attachments/pontiac-168/17816d1501206906-1963-pontiac-catalina-massive-project-build-thread-interiortins001.jpg)
Not sure how many pics I can place in a single post so I'm going to go to a new one.
Mark L
I cut out the firewall, moved it back and tacked in in place, then I filled it all in with sheet metal.
[img]
Basically I got most of the frame all done except for going back under and gusseting the weld seams. I still have to make a crossmember over the rear end for the shocks and springs. I have the DOM tubing to build the ladder bars but have not started that yet. Biggest accomplishments have been getting the rearend widened to fit the widetrack Pontiac. The rearend guy laughed his *** off when I told him I had to widen it. Said he'* never widened one before.
![Name: morewheelwells006.jpg
Views: 469
Size: 54.5 KB](https://www.gmforum.com/attachments/pontiac-168/17813d1501206906-1963-pontiac-catalina-massive-project-build-thread-morewheelwells006.jpg)
I got all the rear wheelwells tubbed and painted. Then I built the rear package shelf and seat back firewall. Still working onthat stuff.
![Name: morewheelwells003.jpg
Views: 453
Size: 48.1 KB](https://www.gmforum.com/attachments/pontiac-168/17814d1501206906-1963-pontiac-catalina-massive-project-build-thread-morewheelwells003.jpg)
![Name: morewheelwells002.jpg
Views: 415
Size: 55.4 KB](https://www.gmforum.com/attachments/pontiac-168/17815d1501206906-1963-pontiac-catalina-massive-project-build-thread-morewheelwells002.jpg)
![Name: Interiortins001.jpg
Views: 415
Size: 43.1 KB](https://www.gmforum.com/attachments/pontiac-168/17816d1501206906-1963-pontiac-catalina-massive-project-build-thread-interiortins001.jpg)
Not sure how many pics I can place in a single post so I'm going to go to a new one.
Mark L
I cut out the firewall, moved it back and tacked in in place, then I filled it all in with sheet metal.
[img]
#39
Senior Member
Posts like a Turbo
Thread Starter
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I cut out the firewall, moved it back and tacked in in place, then I filled it all in with sheet metal.
![Name: 001-1.jpg
Views: 389
Size: 50.8 KB](https://www.gmforum.com/attachments/pontiac-168/17810d1501206880-1963-pontiac-catalina-massive-project-build-thread-001-1.jpg)
![Name: STEERINGsupportandfirewall002.jpg
Views: 445
Size: 48.6 KB](https://www.gmforum.com/attachments/pontiac-168/17811d1501206880-1963-pontiac-catalina-massive-project-build-thread-steeringsupportandfirewall002.jpg)
I also got the steering wheel mount and the brake pedal assembly all built in.
![](https://i601.photobucket.com/albums/tt97/marks73turbota/MOREbrakes001.jpg)
New seat location mounts. I decided to go back to the original bench seat.
[/img]http://i601.photobucket.com/albums/tt97/marks73turbota/seatmount.jpg[/img]

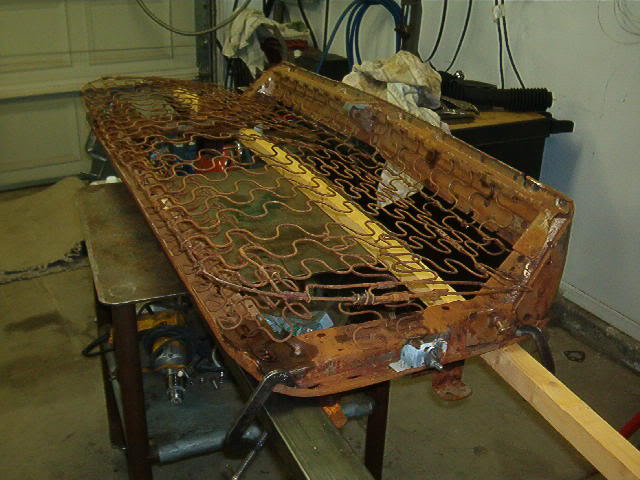

I'm going to do the interior in black vinyl but for now I'm doing the seat in two Indian blankets. I rebuilt the seat and attached the blankets. I still have to clip down all the loose ends of the blanket to finish, and split the seat back blanket to make basically slip on seat covers.
![Name: BareseatandIndianBlanket001.jpg
Views: 502
Size: 56.7 KB](https://www.gmforum.com/attachments/pontiac-168/17812d1501206880-1963-pontiac-catalina-massive-project-build-thread-bareseatandindianblanket001.jpg)
![](https://i601.photobucket.com/albums/tt97/marks73turbota/Indiancoverseat010.jpg)
I'll get the seat redone later by an upholsterer to match the interior.
Mark L
![Name: 001-1.jpg
Views: 389
Size: 50.8 KB](https://www.gmforum.com/attachments/pontiac-168/17810d1501206880-1963-pontiac-catalina-massive-project-build-thread-001-1.jpg)
![Name: STEERINGsupportandfirewall002.jpg
Views: 445
Size: 48.6 KB](https://www.gmforum.com/attachments/pontiac-168/17811d1501206880-1963-pontiac-catalina-massive-project-build-thread-steeringsupportandfirewall002.jpg)
I also got the steering wheel mount and the brake pedal assembly all built in.
![](https://i601.photobucket.com/albums/tt97/marks73turbota/MOREbrakes001.jpg)
New seat location mounts. I decided to go back to the original bench seat.
[/img]http://i601.photobucket.com/albums/tt97/marks73turbota/seatmount.jpg[/img]
I'm going to do the interior in black vinyl but for now I'm doing the seat in two Indian blankets. I rebuilt the seat and attached the blankets. I still have to clip down all the loose ends of the blanket to finish, and split the seat back blanket to make basically slip on seat covers.
![Name: BareseatandIndianBlanket001.jpg
Views: 502
Size: 56.7 KB](https://www.gmforum.com/attachments/pontiac-168/17812d1501206880-1963-pontiac-catalina-massive-project-build-thread-bareseatandindianblanket001.jpg)
![](https://i601.photobucket.com/albums/tt97/marks73turbota/Indiancoverseat010.jpg)
I'll get the seat redone later by an upholsterer to match the interior.
Mark L
#40
Senior Member
Posts like a Turbo
Thread Starter
![Default](https://www.gmforum.com/images/icons/icon1.gif)
New seat location pic, I screwed it up on the previous.
![Name: seatmount.jpg
Views: 368
Size: 56.3 KB](https://www.gmforum.com/attachments/pontiac-168/17805d1501206880-1963-pontiac-catalina-massive-project-build-thread-seatmount.jpg)
![Name: 007.jpg
Views: 425
Size: 53.2 KB](https://www.gmforum.com/attachments/pontiac-168/17806d1501206880-1963-pontiac-catalina-massive-project-build-thread-007.jpg)
I used an extra 400 block to mock up the engine configuration and placement. Had to modify the front engine plate for the turbo headers and had a great deal on a Moon front timing cover. A friend had an original top fuel Hilborn fuel pump off of a local (Lopers Speed Shop) dragster and he gave it to me to see if I could incorporate it into the build. Like, he didn't have to ask me twice. I tried to find a spud that would drive the pump off of the cam as would be original to the pump, but no one makes one and I don't have the funds to make one. So I dry attached the pump to the Moon cover so it just sits on th ecover, non operational. But I'm going to plumb the fuel system to the carb by using a high flow electric pump and filter back at the tank. Run the fuel conventionally up to the bypass regulator at the carb, but, run the return line down and through the Hilborn pump. To the uninformed the fule supply line will look like it comes through the pump to the regulator. This is how the pump looks on the cover.
![Name: FRONTCOVER002.jpg
Views: 401
Size: 50.7 KB](https://www.gmforum.com/attachments/pontiac-168/17807d1501206880-1963-pontiac-catalina-massive-project-build-thread-frontcover002.jpg)

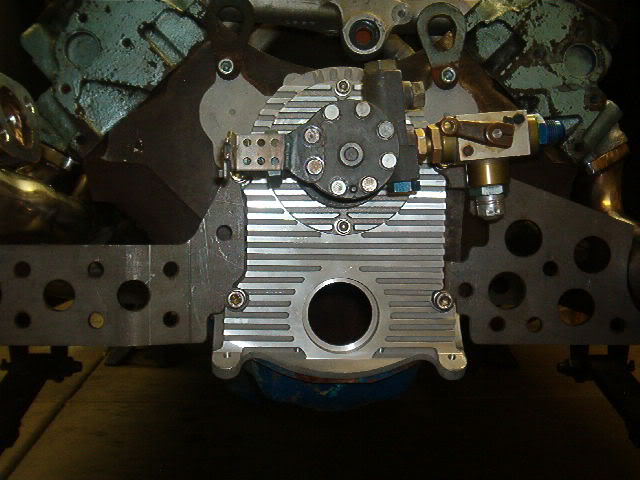

And the cover and motor plate on the motor.
