That'* the OE waterpump? You have another thread with an AC Delco that looks quite different, fin wise. Hmmmm interesting find there.
#135
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Zilla Motorsports got distracted today. Did some custom intakes on all 3 of these. Jeep Liberty, Chevy full-size 4x4, and a Z71 Tahoe:
#136
Junior Member
Posts like a Ricer Type-R
Thread Starter
![Default](https://www.gmforum.com/images/icons/icon1.gif)
The two Chevy'* shown are both different. There'* nothing to gut on either. Just drill some extra holes in the box. WHERE you drill does matter, so I need a better idea of what year/box design you have. I've done several of both types.
#137
Junior Member
Posts like a Ricer Type-R
Thread Starter
![Default](https://www.gmforum.com/images/icons/icon1.gif)

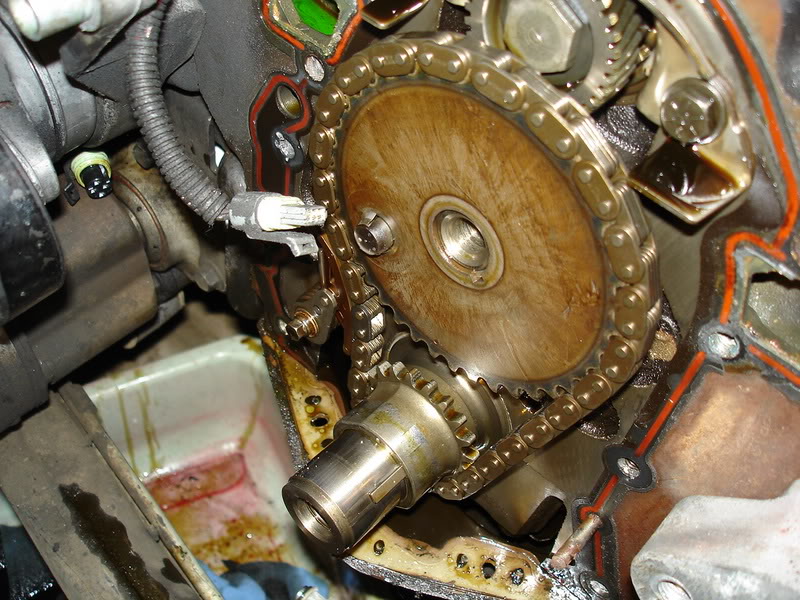

Hello, little buddy. You were lodged between the LIM and timing cover for so long, I felt it was time to release you. Out of the goodness of my heart, I let you fall onto my oiled up timing chain to bask in the goodness and power of my 3800, in the hopes it would revive you. ALAS! You were too far gone. So now I reverently place you on top of the stack of extra parts for my beloved car.
![](https://i14.photobucket.com/albums/a315/willwren/DSC03671.jpg)
![Name: DSC03672.jpg
Views: 10
Size: 128.4 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/51262d1501312643-zillas-rebuild-exhaust-mod-revealed-gauges-going-dsc03672.jpg)
![](https://i14.photobucket.com/albums/a315/willwren/DSC03671.jpg)
![Name: DSC03672.jpg
Views: 10
Size: 128.4 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/51262d1501312643-zillas-rebuild-exhaust-mod-revealed-gauges-going-dsc03672.jpg)
![Name: DSC03673.jpg
Views: 12
Size: 141.6 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/51263d1501312643-zillas-rebuild-exhaust-mod-revealed-gauges-going-dsc03673.jpg)
#138
Senior Member
True Car Nut
Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,135
Likes: 0
Received 0 Likes
on
0 Posts
![SSEimatt93 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
LOL Poor Bee...
I bet that timing chain was due for a replacement by now, all the abuse that is
I bet that timing chain was due for a replacement by now, all the abuse that is
![Laughing](https://www.gmforum.com/gm/images/smilies/icon_lol.gif)
#139
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Those pictures look so familar, my camshaft magnet decided to disintegrate last summer after many years of service. Luckily I had a backup car so I was able to do it right and take my time replacing the works - seals, timing set, dampner, sensors, and all new gaskets.
BTW, It looks like the be is bowing to you motor
BTW, It looks like the be is bowing to you motor
![Laughing](https://www.gmforum.com/gm/images/smilies/icon_lol.gif)
#140
DINOSAURUS BOOSTUS
![](/images/badges/Gearhead.png)
Expert Gearhead
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Bill...a shot fo the front of the timing cover where the impeller would be. Thanks
PS..I see you found your way to Autozone for the socket
PS..I see you found your way to Autozone for the socket
![Cool](https://www.gmforum.com/gm/images/smilies/icon_cool.gif)
