Any autoparts shop should have the kits. It'* just a thread with a hole in the center that'* also threaded. I see no reason why it wouldn't hold just fine. Although the size difference is a bit close.
#12
Senior Member
True Car Nut
Thread Starter
Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Likes: 0
Received 0 Likes
on
0 Posts
![xtremerevolution is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
In any case, I have a machine shop doing the work for me now. They'll drill out the holes and put in solid inserts for the 5/16" bolts. The rockers can't be drilled through since the fulcrum is hardened steel. My other option was to contact yella terra for a different fulcrum size, but I doubt they're going to have anything for me.
#13
Senior Member
True Car Nut
Join Date: Feb 2003
Location: Philly
Posts: 4,508
Likes: 0
Received 0 Likes
on
0 Posts
![95naSTA is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
In any case, I have a machine shop doing the work for me now. They'll drill out the holes and put in solid inserts for the 5/16" bolts. The rockers can't be drilled through since the fulcrum is hardened steel. My other option was to contact yella terra for a different fulcrum size, but I doubt they're going to have anything for me.
You may want to do whatever porting etc. you want to do first then have the machine shop do a valve job while they're there.
#14
Senior Member
True Car Nut
Thread Starter
Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Likes: 0
Received 0 Likes
on
0 Posts
![xtremerevolution is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I'll do some light porting after I get the heads back.
#15
Senior Member
True Car Nut
Thread Starter
Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Likes: 0
Received 0 Likes
on
0 Posts
![xtremerevolution is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
So I cleaned up the heads with a wire brush and they look great.
I later discovered that the rocker bolts on these heads are 3/8", and on mine they're 5/16", which is a big problem because I have roller rockers on there and the fulcrums are hardened steel and can't be drilled. So for another $160, I took them to a machine shop and had them drill out the original threads, tap them, and screw in 1/2" to 5/16" inserts. I needed them to be very precise, so its not something I could have done without a drill press.
I also tore apart most of my engine and got the front head off. Still need to get to the rear one after I disconnect the downpipe, but most everything is off the engine. The head I took off really doesn't look too bad. All of the valves seem to be in decent shape, so we'll see if the burned valve is on the rear head.

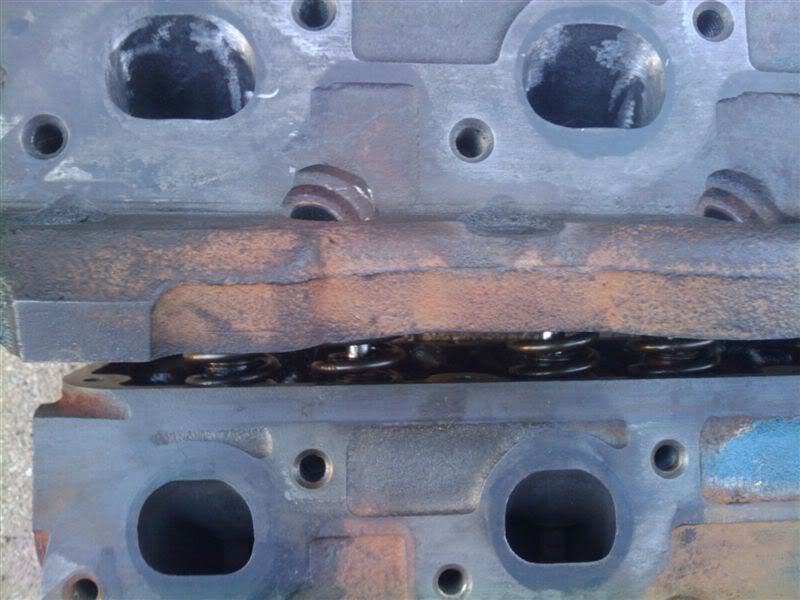

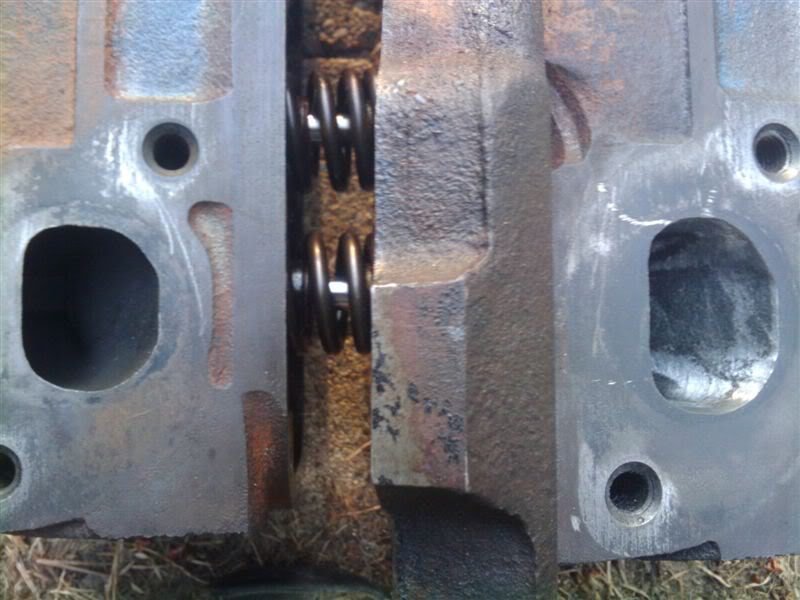

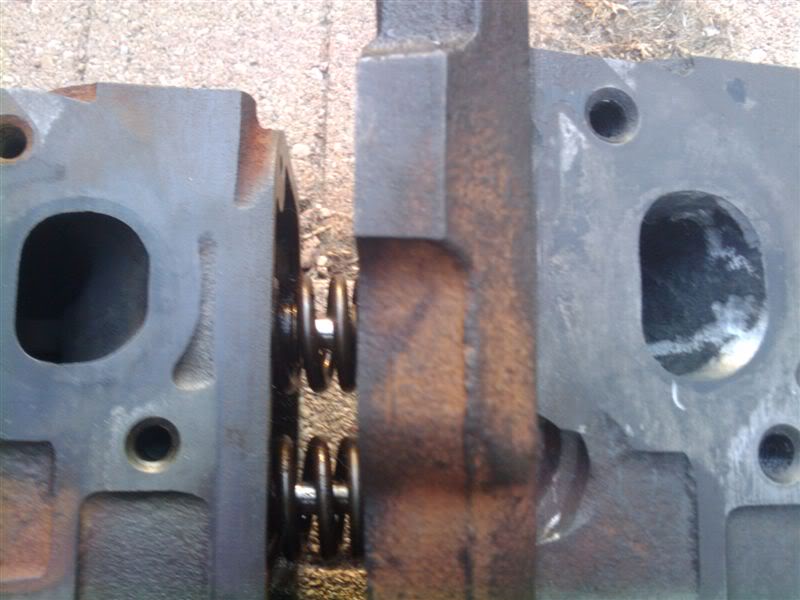

After a while I got sick of unbolting **** so i started porting my new heads, and made some massive improvements with the exhaust ports. I'm 100% sure this will make a huge difference. You can see the size of the actual exhaust manifold in black around the port, just to give you an idea of how tiny these ports really are.
This was all done with grinding stones on my dremel and my cordless drill. I wish I had my air die grinder back.
![Name: 2010-03-31181218.jpg
Views: 129
Size: 61.7 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25256d1501268452-l27-heads-rockers-3-8-bolts-2010-03-31181218.jpg)
![Name: 2010-03-31181246.jpg
Views: 130
Size: 66.1 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25257d1501268452-l27-heads-rockers-3-8-bolts-2010-03-31181246.jpg)
![Name: 2010-03-31181239.jpg
Views: 124
Size: 57.2 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25258d1501268452-l27-heads-rockers-3-8-bolts-2010-03-31181239.jpg)
![Name: 2010-03-31181234.jpg
Views: 130
Size: 67.5 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25259d1501268452-l27-heads-rockers-3-8-bolts-2010-03-31181234.jpg)

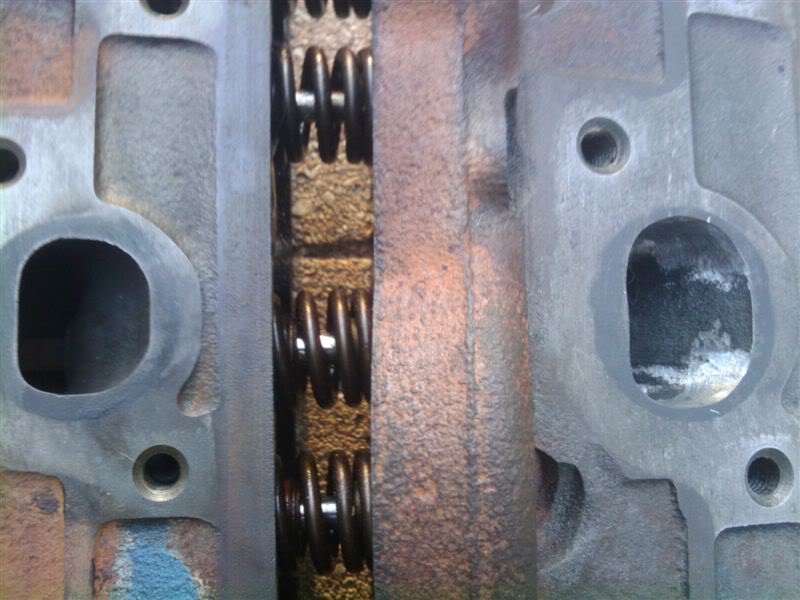

I kept the ports d-shaped as they were from the factory because A. there isn't much you can do with the floor of the ports as far as flow goes, and B. they were made that way to prevent reversion.
I still have to do some light sanding to smooth out the ports a bit, but that'* where I am so far.
I later discovered that the rocker bolts on these heads are 3/8", and on mine they're 5/16", which is a big problem because I have roller rockers on there and the fulcrums are hardened steel and can't be drilled. So for another $160, I took them to a machine shop and had them drill out the original threads, tap them, and screw in 1/2" to 5/16" inserts. I needed them to be very precise, so its not something I could have done without a drill press.
I also tore apart most of my engine and got the front head off. Still need to get to the rear one after I disconnect the downpipe, but most everything is off the engine. The head I took off really doesn't look too bad. All of the valves seem to be in decent shape, so we'll see if the burned valve is on the rear head.
After a while I got sick of unbolting **** so i started porting my new heads, and made some massive improvements with the exhaust ports. I'm 100% sure this will make a huge difference. You can see the size of the actual exhaust manifold in black around the port, just to give you an idea of how tiny these ports really are.
This was all done with grinding stones on my dremel and my cordless drill. I wish I had my air die grinder back.
![Name: 2010-03-31181218.jpg
Views: 129
Size: 61.7 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25256d1501268452-l27-heads-rockers-3-8-bolts-2010-03-31181218.jpg)
![Name: 2010-03-31181246.jpg
Views: 130
Size: 66.1 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25257d1501268452-l27-heads-rockers-3-8-bolts-2010-03-31181246.jpg)
![Name: 2010-03-31181239.jpg
Views: 124
Size: 57.2 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25258d1501268452-l27-heads-rockers-3-8-bolts-2010-03-31181239.jpg)
![Name: 2010-03-31181234.jpg
Views: 130
Size: 67.5 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25259d1501268452-l27-heads-rockers-3-8-bolts-2010-03-31181234.jpg)
I kept the ports d-shaped as they were from the factory because A. there isn't much you can do with the floor of the ports as far as flow goes, and B. they were made that way to prevent reversion.
I still have to do some light sanding to smooth out the ports a bit, but that'* where I am so far.
Last edited by xtremerevolution; 04-01-2010 at 01:01 PM.
#16
Retired Senior Admin
![](/images/badges/Gearhead.png)
Expert Gearhead
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 29 Likes
on
25 Posts
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_highpos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Looking good so far. Just be careful. there are cooling jackets in the head and you don't want to open one of them up. Here'* some light reading for you. http://www.popularhotrodding.com/eng.../photo_01.html
#17
Senior Member
True Car Nut
Thread Starter
Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Likes: 0
Received 0 Likes
on
0 Posts
![xtremerevolution is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Looking good so far. Just be careful. there are cooling jackets in the head and you don't want to open one of them up. Here'* some light reading for you. http://www.popularhotrodding.com/eng.../photo_01.html
Don't worry, I once made the mistake of hitting a water jacket on a Jaguar V12 head. I was PISSED. Then again, I was also reckless. I definitely won't be doing that again.
This is as far as I'm going to open up. I'm not going to remove the valves to do work around the bowl much, but this really felt like a restriction point. I'll do some minor cleaning up on the intake ports, but I won't be cutting into too much material.
I also just noticed I had 3 of the photos duplicated, so I updated that post with the right photos.
Last edited by xtremerevolution; 04-01-2010 at 01:02 PM.
#18
![Default](https://www.gmforum.com/images/icons/icon1.gif)
As a retired mechanical engineer I can tell you better make sure you have your rocker arms drilled properly and they have to be taken apart to do the job right.
Also if you have somebody installing Helicoils this has to be done properly and you can have them installed with some Locktite or you can install some special inserts (more expensive)
Either way you have to spend some more money. Sorry I could not give you a cheaper answer.
Velo.
Also if you have somebody installing Helicoils this has to be done properly and you can have them installed with some Locktite or you can install some special inserts (more expensive)
Either way you have to spend some more money. Sorry I could not give you a cheaper answer.
Velo.
#19
Senior Member
True Car Nut
Thread Starter
Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Likes: 0
Received 0 Likes
on
0 Posts
![xtremerevolution is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
As a retired mechanical engineer I can tell you better make sure you have your rocker arms drilled properly and they have to be taken apart to do the job right.
Also if you have somebody installing Helicoils this has to be done properly and you can have them installed with some Locktite or you can install some special inserts (more expensive)
Either way you have to spend some more money. Sorry I could not give you a cheaper answer.
Velo.
Also if you have somebody installing Helicoils this has to be done properly and you can have them installed with some Locktite or you can install some special inserts (more expensive)
Either way you have to spend some more money. Sorry I could not give you a cheaper answer.
Velo.
#20
Senior Member
True Car Nut
Thread Starter
Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Likes: 0
Received 0 Likes
on
0 Posts
![xtremerevolution is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Got some more porting work done today.
There are some pretty big casting imperfections that I smoothed out. Keep a close eye on the before and after shots of the floor of the intake ports, and the edges of the exhaust ports near the valve seat. Also look at the casting around the valve guide.

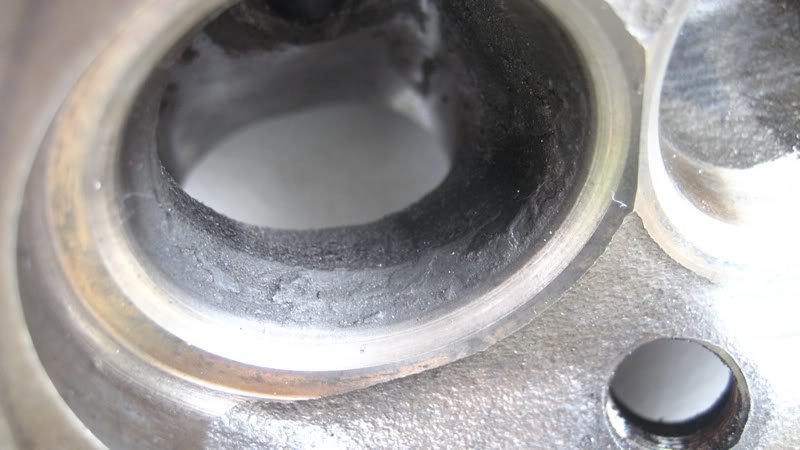

Ridges on the exhaust port:
![Name: IMG_4182.jpg
Views: 141
Size: 52.0 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25194d1501268337-l27-heads-rockers-3-8-bolts-img_4182.jpg)

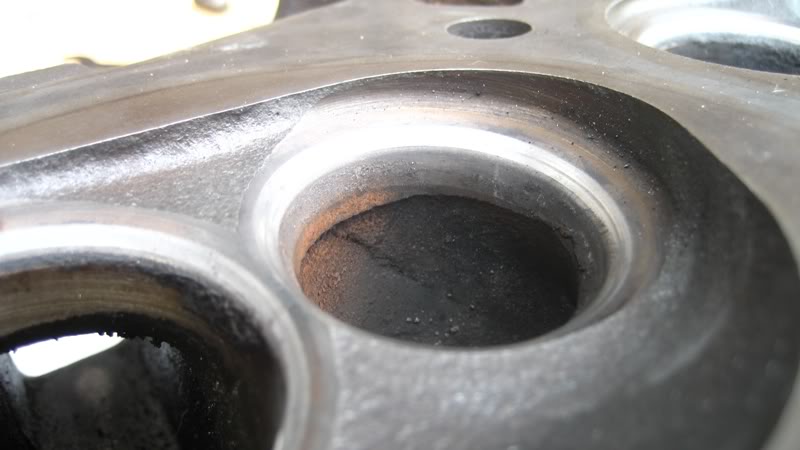

Ridge on the floor of the intake port:
![](https://i16.photobucket.com/albums/b37/SirMaverick00/95%20Buick%20Regal/IMG_4183.jpg)
![Name: IMG_4186.jpg
Views: 119
Size: 42.9 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25195d1501268337-l27-heads-rockers-3-8-bolts-img_4186.jpg)
Casting around valve guide:
![Name: IMG_4191.jpg
Views: 120
Size: 66.3 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25196d1501268337-l27-heads-rockers-3-8-bolts-img_4191.jpg)

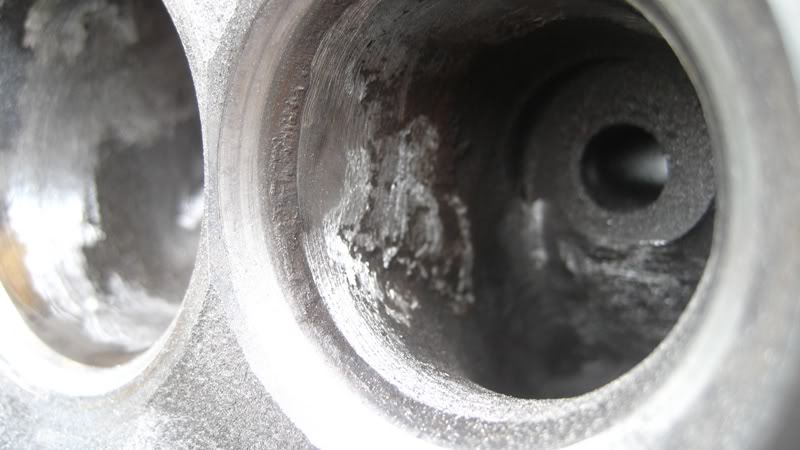

Other rough casting imperfections:
![](https://i16.photobucket.com/albums/b37/SirMaverick00/95%20Buick%20Regal/IMG_4192.jpg)
![Name: IMG_4194.jpg
Views: 127
Size: 51.3 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25197d1501268337-l27-heads-rockers-3-8-bolts-img_4194.jpg)

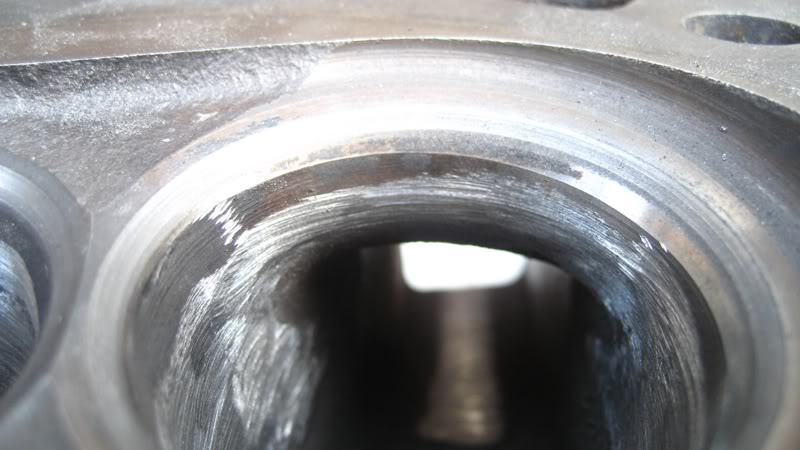

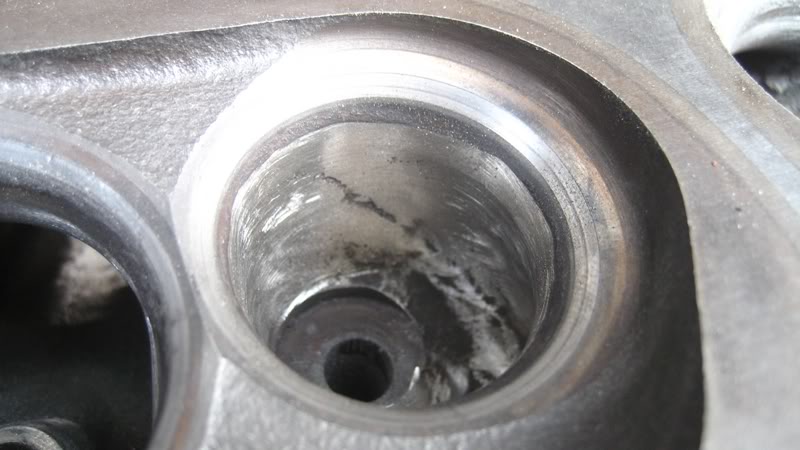

After shots:
![](https://i16.photobucket.com/albums/b37/SirMaverick00/95%20Buick%20Regal/IMG_4198.jpg)
![](https://i16.photobucket.com/albums/b37/SirMaverick00/95%20Buick%20Regal/IMG_4199.jpg)
![Name: IMG_4200.jpg
Views: 124
Size: 54.6 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25198d1501268337-l27-heads-rockers-3-8-bolts-img_4200.jpg)
![Name: IMG_4203.jpg
Views: 125
Size: 56.2 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25199d1501268337-l27-heads-rockers-3-8-bolts-img_4203.jpg)
![Name: IMG_4204.jpg
Views: 120
Size: 57.4 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25200d1501268337-l27-heads-rockers-3-8-bolts-img_4204.jpg)
There are some pretty big casting imperfections that I smoothed out. Keep a close eye on the before and after shots of the floor of the intake ports, and the edges of the exhaust ports near the valve seat. Also look at the casting around the valve guide.
Ridges on the exhaust port:
![Name: IMG_4182.jpg
Views: 141
Size: 52.0 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25194d1501268337-l27-heads-rockers-3-8-bolts-img_4182.jpg)
Ridge on the floor of the intake port:
![](https://i16.photobucket.com/albums/b37/SirMaverick00/95%20Buick%20Regal/IMG_4183.jpg)
![Name: IMG_4186.jpg
Views: 119
Size: 42.9 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25195d1501268337-l27-heads-rockers-3-8-bolts-img_4186.jpg)
Casting around valve guide:
![Name: IMG_4191.jpg
Views: 120
Size: 66.3 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25196d1501268337-l27-heads-rockers-3-8-bolts-img_4191.jpg)
Other rough casting imperfections:
![](https://i16.photobucket.com/albums/b37/SirMaverick00/95%20Buick%20Regal/IMG_4192.jpg)
![Name: IMG_4194.jpg
Views: 127
Size: 51.3 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25197d1501268337-l27-heads-rockers-3-8-bolts-img_4194.jpg)
After shots:
![](https://i16.photobucket.com/albums/b37/SirMaverick00/95%20Buick%20Regal/IMG_4198.jpg)
![](https://i16.photobucket.com/albums/b37/SirMaverick00/95%20Buick%20Regal/IMG_4199.jpg)
![Name: IMG_4200.jpg
Views: 124
Size: 54.6 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25198d1501268337-l27-heads-rockers-3-8-bolts-img_4200.jpg)
![Name: IMG_4203.jpg
Views: 125
Size: 56.2 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25199d1501268337-l27-heads-rockers-3-8-bolts-img_4203.jpg)
![Name: IMG_4204.jpg
Views: 120
Size: 57.4 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25200d1501268337-l27-heads-rockers-3-8-bolts-img_4204.jpg)
![Name: IMG_4205.jpg
Views: 127
Size: 72.0 KB](https://www.gmforum.com/attachments/performance-brainstorming-tuning-96/25201d1501268337-l27-heads-rockers-3-8-bolts-img_4205.jpg)
