No hole that I saw, so that means out it goes. That code must have already been turned off in my
PCM, because we didn't have time to turn it off before I left your place and I haven't seen anything yet. I don't know which will be more exciting, the extra power I'm going to have, or having my vehicle with remote start again! It'* going to be sitting over in a friends shop till I can come back next weekend, looks like I'm going to have to dig my truck out of my grandparents yard.. 2wd in 2ft of snow with the back tires in a mud rut.
PCM, because we didn't have time to turn it off before I left your place and I haven't seen anything yet. I don't know which will be more exciting, the extra power I'm going to have, or having my vehicle with remote start again! It'* going to be sitting over in a friends shop till I can come back next weekend, looks like I'm going to have to dig my truck out of my grandparents yard.. 2wd in 2ft of snow with the back tires in a mud rut.
#53
-- SITE DONATOR --
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I was collecting all the torque specs that I'm going to need for tonight, but still can't find the toruqe for the superchargers tensioner. Does anybody have this? Also the tensioner/alt bracket (I think that'* what it is) that has the coolant elbows. Torque specs on that?
#55
-- SITE DONATOR --
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Well guys, I'm almost done. Unfortunately neither of the new belts fit.... still a few inches short it seems. Another thing I'm concerned with is the pressure building up in the valve covers. I let it run for about 5 minutes to bleed the cooling system and warm up the oil for another oil change, and when I shut it off I could hear the pressure escaping around the gasket for the oil filler cap. When I took it off there was a lot of pressure built up that came hissing out. Could that be what cracked the front one before? Do I need to get a breather?
#56
Senior Member
Posts like a Northstar
Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Likes: 0
Received 0 Likes
on
0 Posts
![Rockstar04 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Well guys, I'm almost done. Unfortunately neither of the new belts fit.... still a few inches short it seems. Another thing I'm concerned with is the pressure building up in the valve covers. I let it run for about 5 minutes to bleed the cooling system and warm up the oil for another oil change, and when I shut it off I could hear the pressure escaping around the gasket for the oil filler cap. When I took it off there was a lot of pressure built up that came hissing out. Could that be what cracked the front one before? Do I need to get a breather?
#57
-- SITE DONATOR --
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
So I know I need to order a valve cover breather, and the engine still needs tuned. I'm going to go to the auto stores tomorrow to try and find a belt that work for the SC. 685 and 680 from ZZP do not fit, they are still a few inches short even though the 685 says its for my setup. Anyone know the appropriate belt to use with a stage 2 IC and 3.3 pulley?
I got the IC pump hooked up and pumping, had to adjust the clamps a bit. I've got plenty of pictures I'll put up soon. I'm going to have to try and rig up some kind of breather tomorrow, probably attach a small filter to the oil filler extension just to get me by until I get the breather.
#58
Retired Senior Admin
![](/images/badges/Gearhead.png)
Expert Gearhead
Thread Starter
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 29 Likes
on
25 Posts
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_highpos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
If I had known the PCV hole is offset I could have drilled that out. When you were here I tried putting on a stock length belt, 725 and that didn't fit. however, we were fighting the tensioner bolt.
#60
-- SITE DONATOR --
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Found a belt at o'reilly'* that fits perfect, also picked up a breather that is temporarily gorilla taped to the filler.

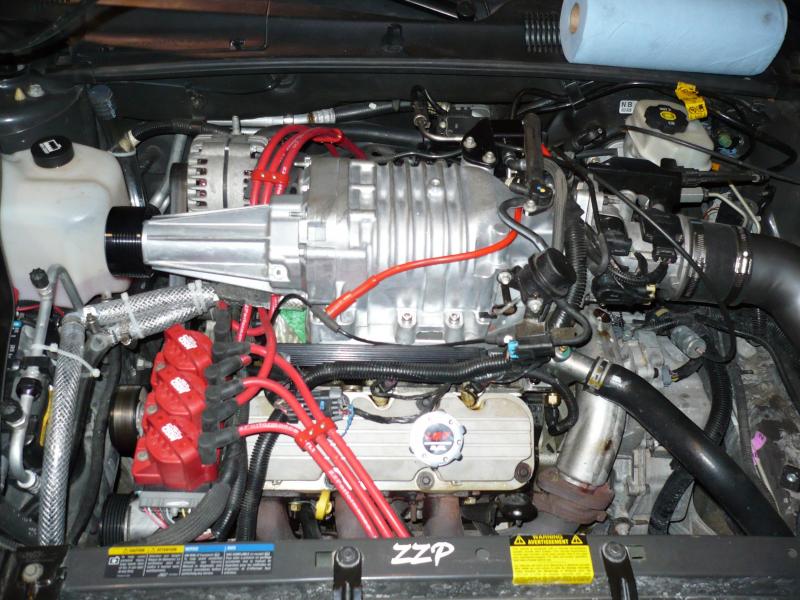

Before
![](https://www.gmforum.com/attachments/general-gm-chat-88/2005d1263159428-ymmot04-project-p1010609_2304x1728.jpg)

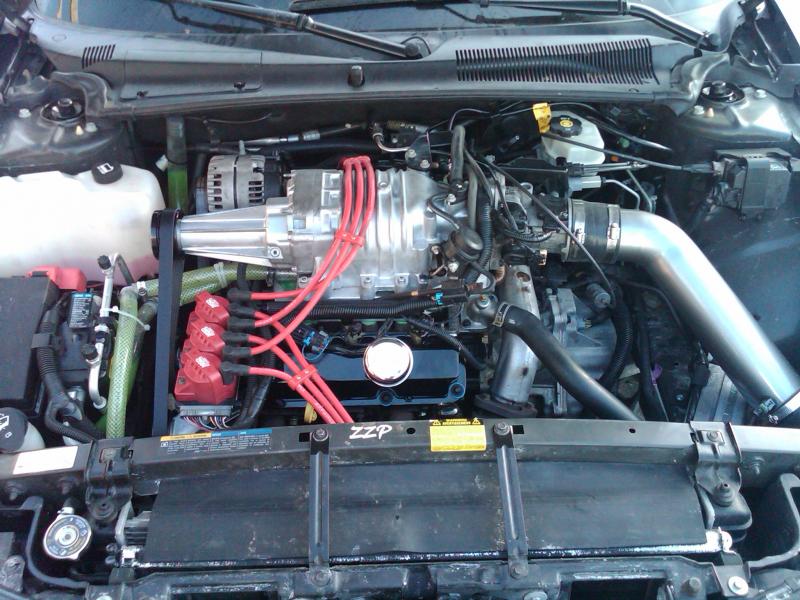

After
![](https://www.gmforum.com/attachments/general-gm-chat-88/2006d1263159428-ymmot04-project-img00027-20100110-1415.jpg)

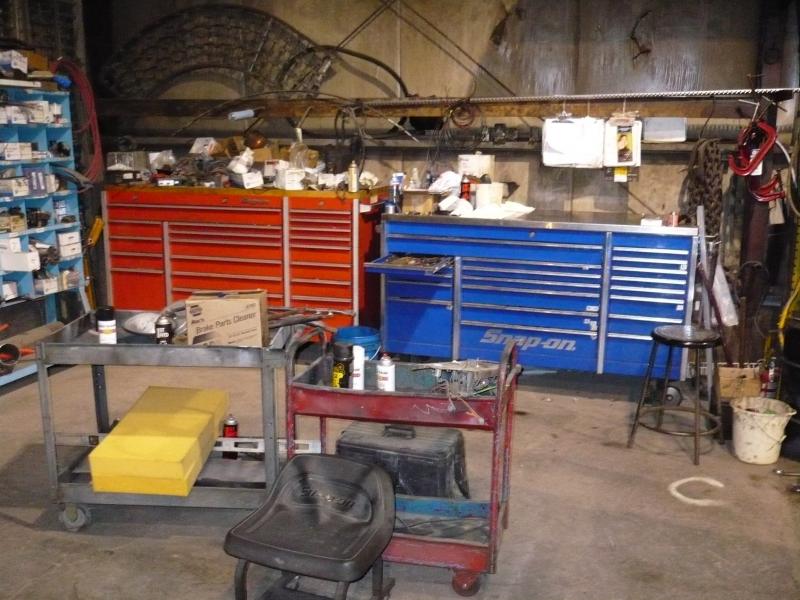

There was no shortage of tools
![](https://www.gmforum.com/attachments/general-gm-chat-88/2008d1263159667-ymmot04-project-p1010607.jpg)
I could have easily parked my car in the back of this truck with plenty of room to spare. You can't see the rest of it, there is quite a bit that didn't fit in the picture.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2007d1263159556-ymmot04-project-p1010608_2304x1728.jpg)
I took plenty of pictures in case any other members need a replacing the valve covers / tensioner for the SC.

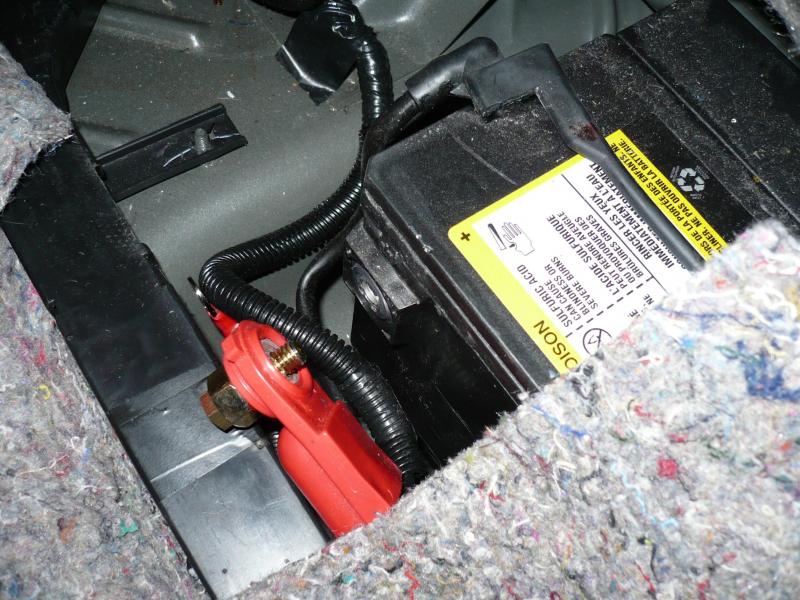

First thing, disconnect the battery. It would also be a good idea to remove both belts at this time to give yourself a little more room, they will need to come off later anyways.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2009d1263160073-ymmot04-project-p1010626_2304x1728.jpg)
Then it'* out with the coil packs. Disconnect the plug wires, remove the harness. It shares a nut on the left stud with the tensioner, then has another bolt on the right.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2010d1263160285-ymmot04-project-p1010611_2304x1728.jpg)

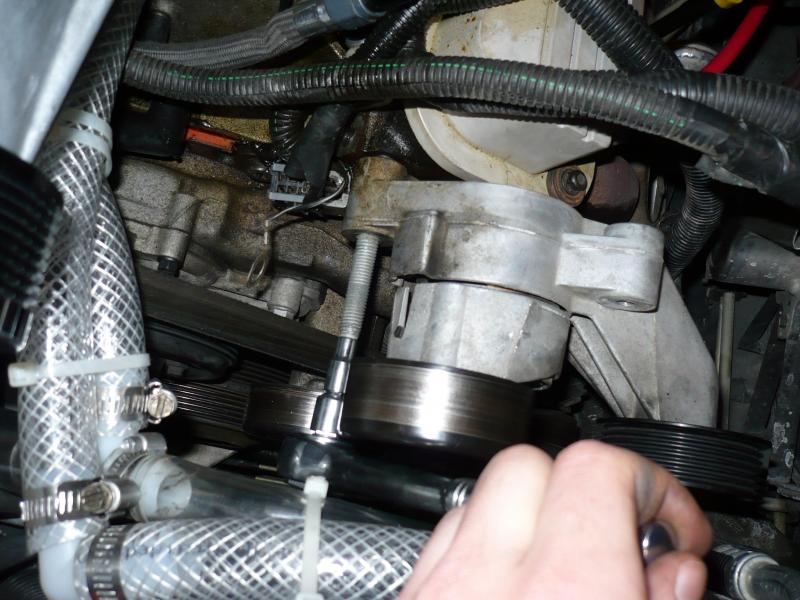

Remove the studs for the tensioner, I used a 1/4 socket, and they were standard thread.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2011d1263160446-ymmot04-project-p1010612_2304x1728.jpg)

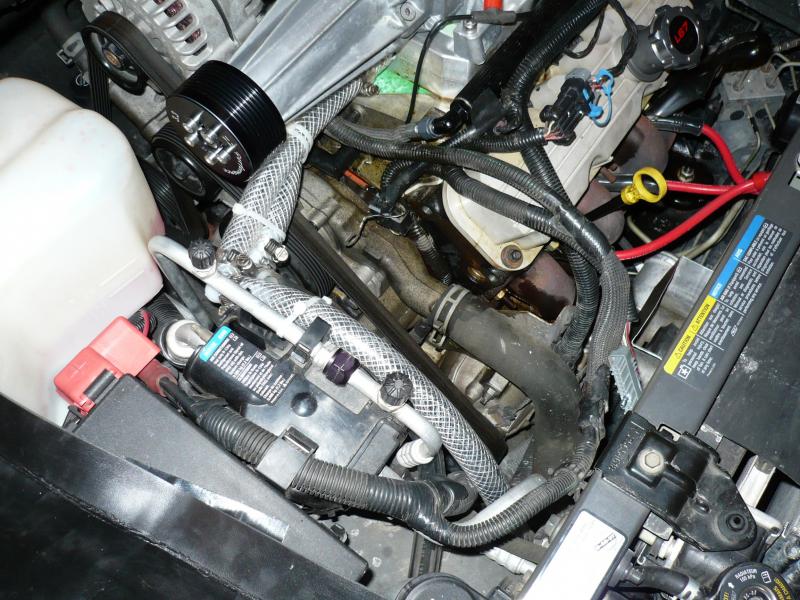

Tensioner removed.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2012d1263160756-ymmot04-project-p1010616_2304x1728.jpg)
Disconnect this harness
![](https://www.gmforum.com/attachments/general-gm-chat-88/2013d1263160853-ymmot04-project-p1010617_2304x1728.jpg)
Remove the bolt to free this ground up.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2014d1263160853-ymmot04-project-p1010618_2304x1728.jpg)

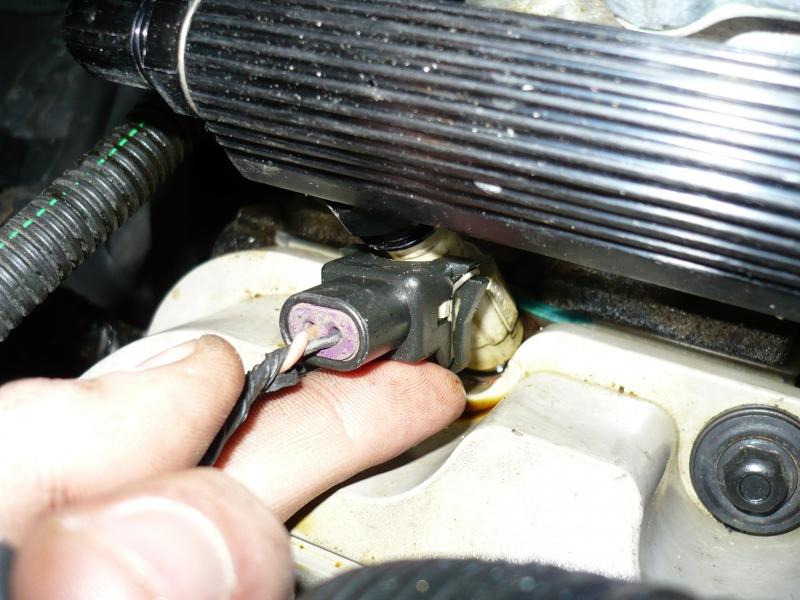

Unplug the injectors.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2015d1263160853-ymmot04-project-p1010619_2304x1728.jpg)
Disconnect all the sensors.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2016d1263160853-ymmot04-project-p1010620_2304x1728.jpg)

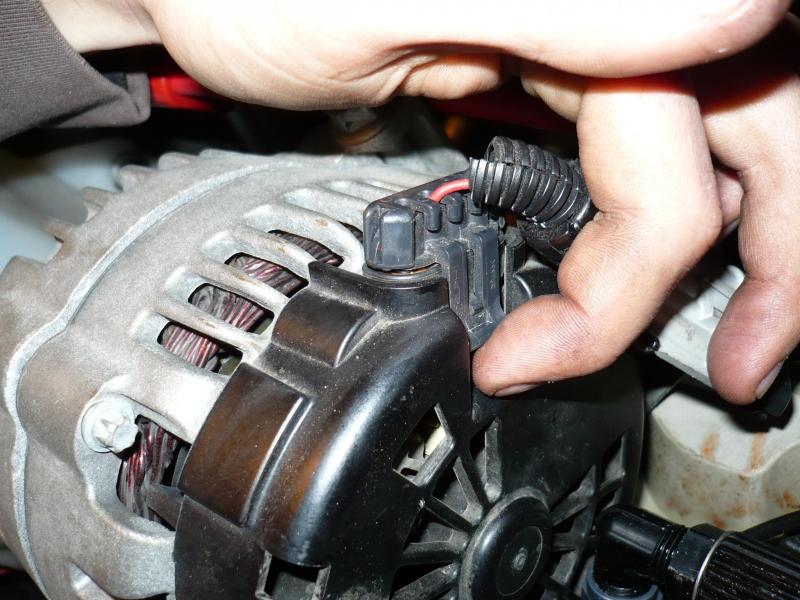

Unplug the alternator.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2017d1263161072-ymmot04-project-p1010623_2304x1728.jpg)

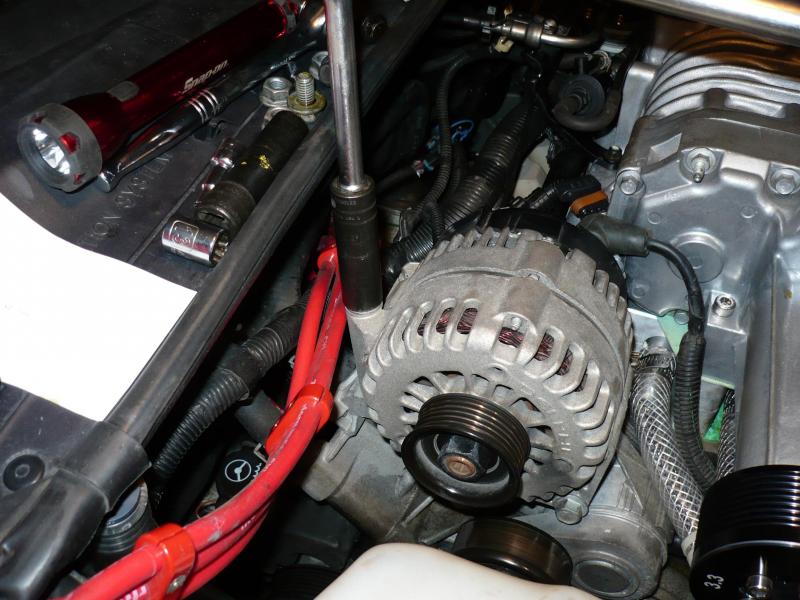

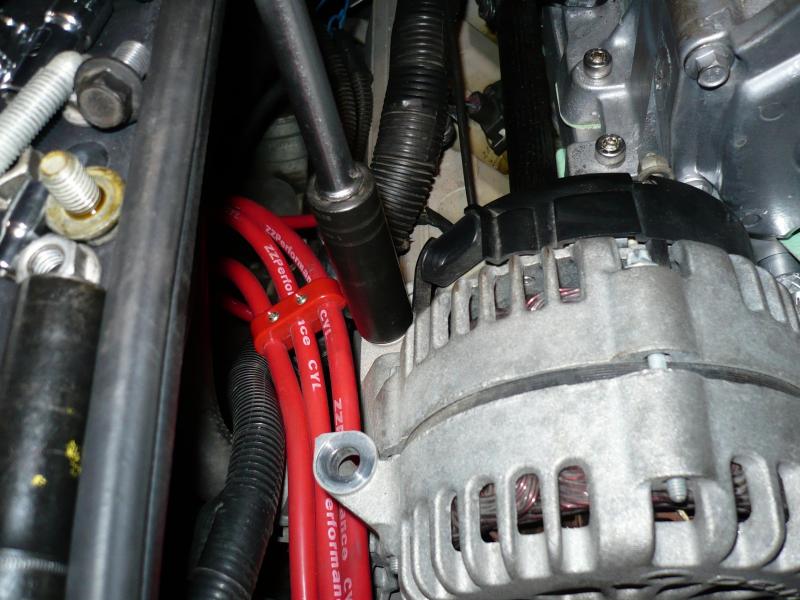

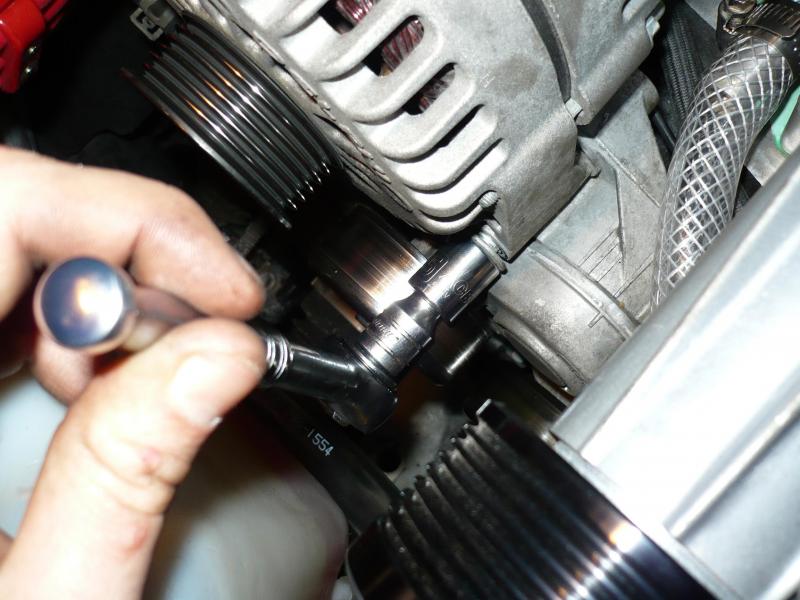

(Is your battery disconnected?) Remove the power cable for the alternator, then these bolts.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2018d1263161130-ymmot04-project-p1010624_2304x1728.jpg)
![](https://www.gmforum.com/attachments/general-gm-chat-88/2019d1263161248-ymmot04-project-p1010625_2304x1728.jpg)
![](https://www.gmforum.com/attachments/general-gm-chat-88/2020d1263161248-ymmot04-project-p1010628_2304x1728.jpg)
![](https://www.gmforum.com/attachments/general-gm-chat-88/2021d1263161248-ymmot04-project-p1010629_2304x1728.jpg)

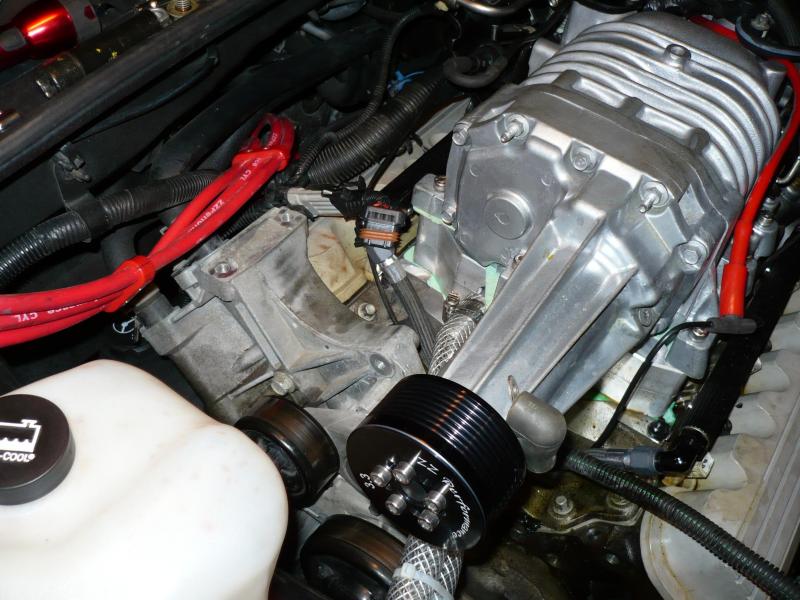

Alternators gone.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2022d1263161387-ymmot04-project-p1010630_2304x1728.jpg)
Drain the coolant.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2030d1263162056-ymmot04-project-p1010640_2304x1728.jpg)

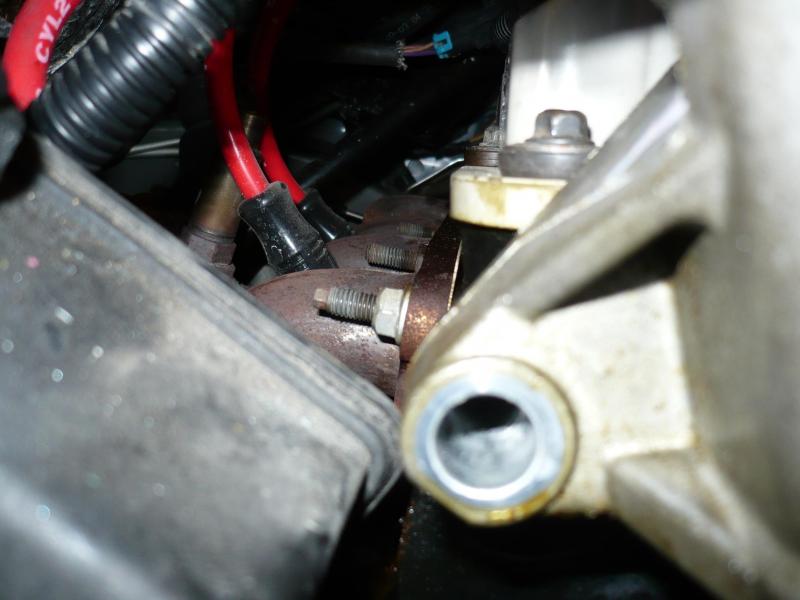

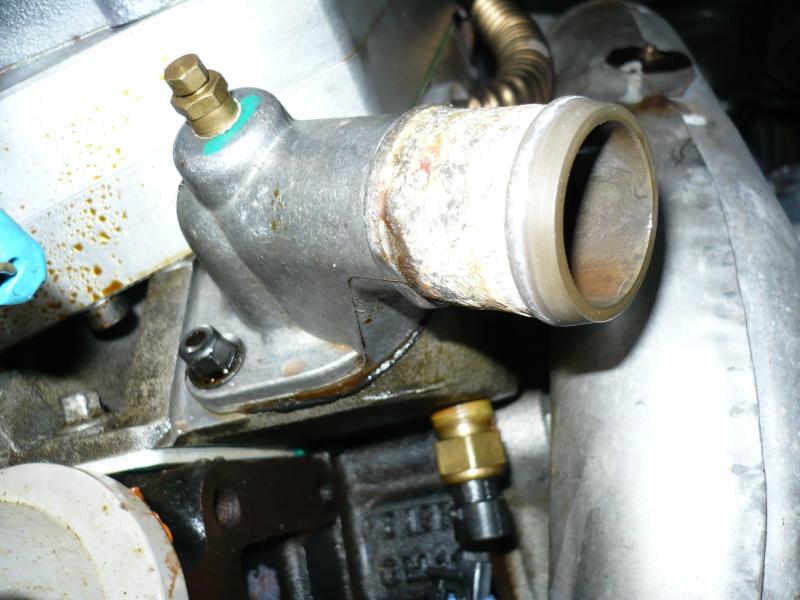

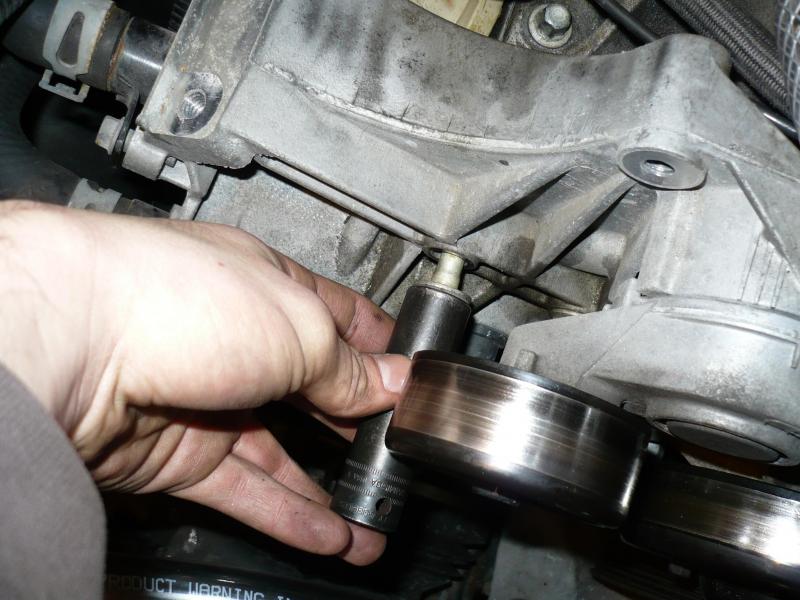

This has to come out.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2023d1263161596-ymmot04-project-p1010631_2304x1728.jpg)
![](https://www.gmforum.com/attachments/general-gm-chat-88/2024d1263161596-ymmot04-project-p1010632_2304x1728.jpg)
![](https://www.gmforum.com/attachments/general-gm-chat-88/2025d1263161596-ymmot04-project-p1010633_2304x1728.jpg)

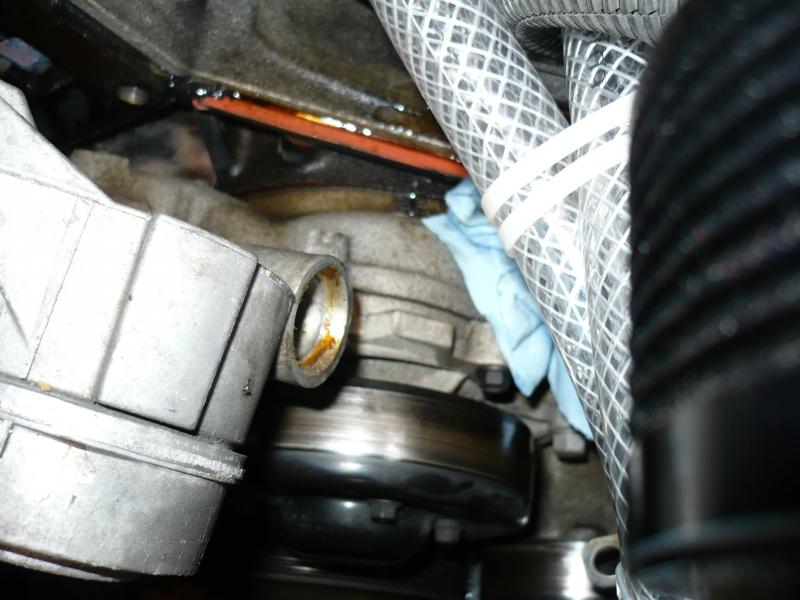

Might as well replace the coolant elbows, they are cheap and chances are they need replacement. Make sure you get any pieces of the coolant elbow out that stayed behind.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2026d1263161662-ymmot04-project-p1010635_2304x1728.jpg)
![](https://www.gmforum.com/attachments/general-gm-chat-88/2027d1263161685-ymmot04-project-p1010636_2304x1728.jpg)

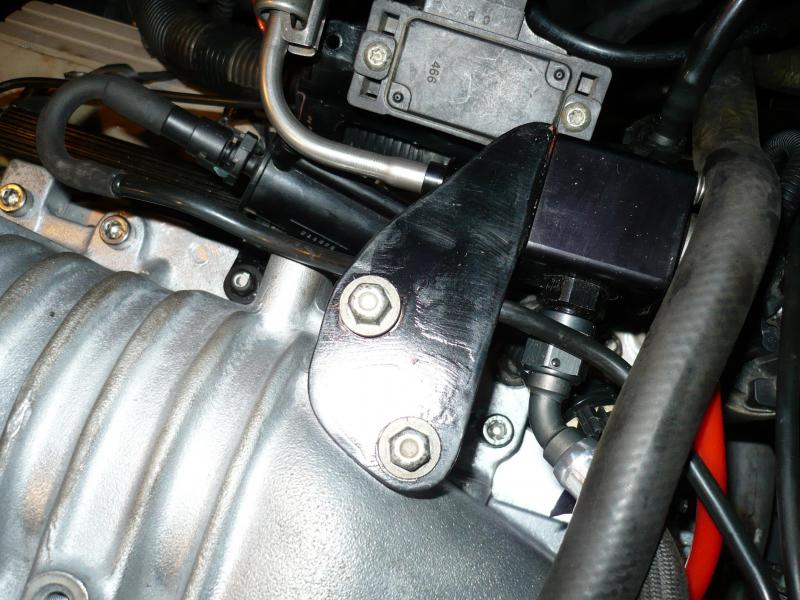

Get these out of the way.
![](https://www.gmforum.com/attachments/general-gm-chat-88/2028d1263161895-ymmot04-project-p1010637_2304x1728.jpg)
![](https://www.gmforum.com/attachments/general-gm-chat-88/2029d1263161895-ymmot04-project-p1010638_2304x1728.jpg)
There should now be plenty of room for removing and reinstalling the valve covers. Your going to want a torque wrench to ensure you get the correct torque when reinstalling them.
