what im doing to make these heated seats work
#1
BANNED
Thread Starter
Join Date: Mar 2004
Location: Purgatory
Posts: 0
Likes: 0
Received 0 Likes
on
0 Posts
![harofreak00 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)

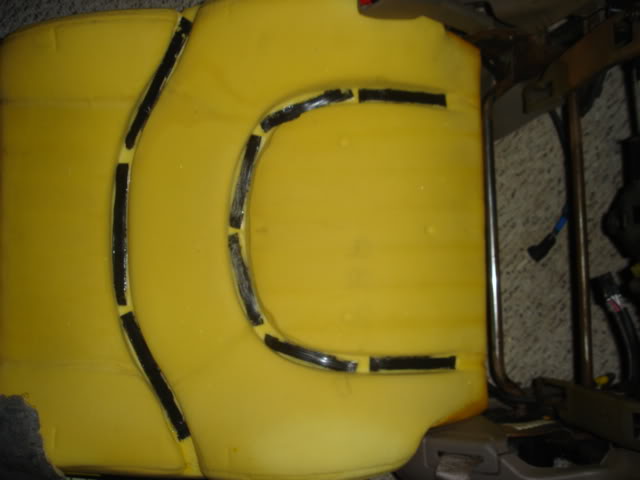

rear seat backs
![Name: DSC00399.jpg
Views: 92
Size: 29.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68216d1501346772-what-im-doing-make-these-heated-seats-work-dsc00399.jpg)

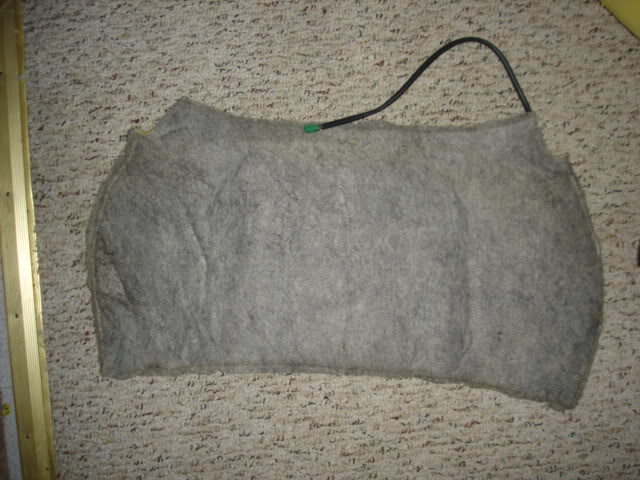

and this is the shape of the heated part... and in order for the velcro on the back of the seat to work correctly, there cant be anything there
![Name: DSC00393.jpg
Views: 95
Size: 65.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68217d1501346772-what-im-doing-make-these-heated-seats-work-dsc00393.jpg)
![Name: DSC00394.jpg
Views: 92
Size: 41.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68218d1501346772-what-im-doing-make-these-heated-seats-work-dsc00394.jpg)

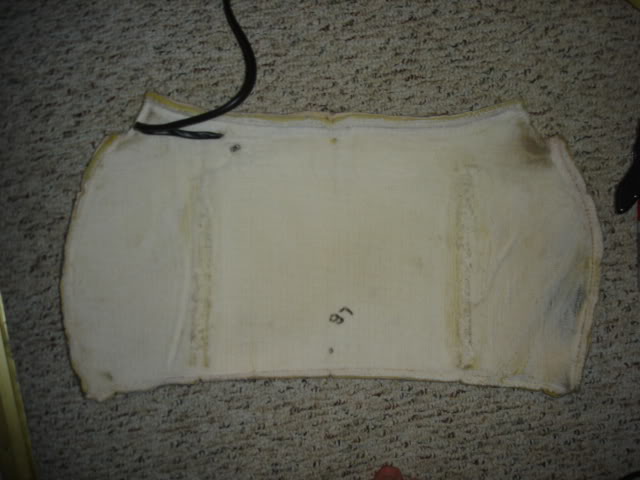

start tearing it apart
![Name: DSC00395.jpg
Views: 95
Size: 27.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68219d1501346772-what-im-doing-make-these-heated-seats-work-dsc00395.jpg)

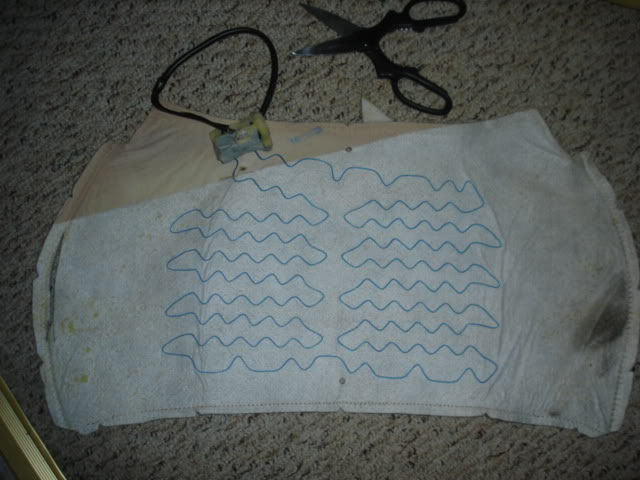

and you get this
![Name: DSC00396.jpg
Views: 88
Size: 51.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68220d1501346772-what-im-doing-make-these-heated-seats-work-dsc00396.jpg)

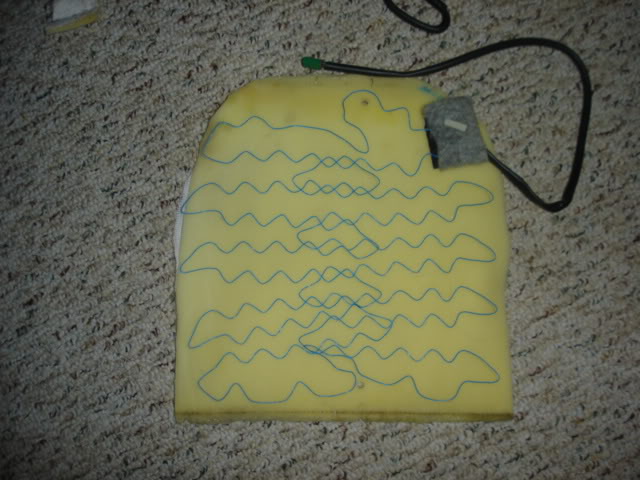

and then you make it the right size
![Name: DSC00397.jpg
Views: 95
Size: 61.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68221d1501346772-what-im-doing-make-these-heated-seats-work-dsc00397.jpg)

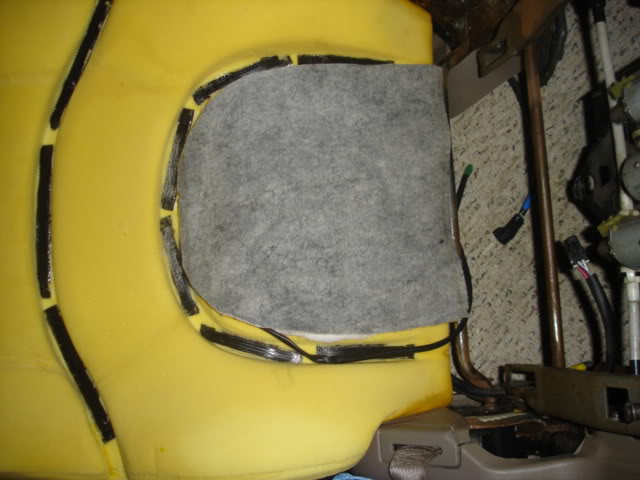

and it fits!
![Name: DSC00399.jpg
Views: 92
Size: 29.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68216d1501346772-what-im-doing-make-these-heated-seats-work-dsc00399.jpg)
and this is the shape of the heated part... and in order for the velcro on the back of the seat to work correctly, there cant be anything there
![Name: DSC00393.jpg
Views: 95
Size: 65.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68217d1501346772-what-im-doing-make-these-heated-seats-work-dsc00393.jpg)
![Name: DSC00394.jpg
Views: 92
Size: 41.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68218d1501346772-what-im-doing-make-these-heated-seats-work-dsc00394.jpg)
start tearing it apart
![Name: DSC00395.jpg
Views: 95
Size: 27.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68219d1501346772-what-im-doing-make-these-heated-seats-work-dsc00395.jpg)
and you get this
![Name: DSC00396.jpg
Views: 88
Size: 51.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68220d1501346772-what-im-doing-make-these-heated-seats-work-dsc00396.jpg)
and then you make it the right size
![Name: DSC00397.jpg
Views: 95
Size: 61.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68221d1501346772-what-im-doing-make-these-heated-seats-work-dsc00397.jpg)
and it fits!
![Name: DSC00398.jpg
Views: 90
Size: 44.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/68222d1501346772-what-im-doing-make-these-heated-seats-work-dsc00398.jpg)
#2
Administratus Emeritus
Certified Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Andrew, are the heating elements insulated enough to cross like that? Looks like your gonna have roast rump in the back seat.
![Shocked](https://www.gmforum.com/gm/images/smilies/icon_eek.gif)
#3
BANNED
Thread Starter
Join Date: Mar 2004
Location: Purgatory
Posts: 0
Likes: 0
Received 0 Likes
on
0 Posts
![harofreak00 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
ummm i sure hope so... they have that blue coating on them.... and if they are sitting on foam, it cant be that bad...
i dont really feel like rebending all those wires to get a pattern that will not touch itself...
any input is welcome though
i dont really feel like rebending all those wires to get a pattern that will not touch itself...
any input is welcome though
#4
Administratus Emeritus
Certified Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
It just worries me. I've put alot of heat cable on water pipes and there insulated pretty good but found over the years when you cross heating cable like that they tend to burn at cross points. and you have quite a few.
I would get an amp reading with one just turned on and watch meter cause I think your gonna see a dramatic rise in amps quickly. Either way it would be a good thing to buy a circuit breaker instead of fusing the lead to positive.
Or get BBQ sauce and put a sweet honey in the back
I would get an amp reading with one just turned on and watch meter cause I think your gonna see a dramatic rise in amps quickly. Either way it would be a good thing to buy a circuit breaker instead of fusing the lead to positive.
Or get BBQ sauce and put a sweet honey in the back
#5
Senior Member
True Car Nut
Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Likes: 0
Received 0 Likes
on
0 Posts
![corvettecrazy is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I would NOT let those wires cross. rebend them to a pattern where they dont cross. The last thing you want to do is start a fire in your seats, especially with that nice new leather.
#7
Administratus Emeritus
Certified Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
The problem there is as they heat, the places crossed are gonna get a little hotter causing resistance, which makes more heat and so on till spot frys. Looks like a worthy project but hate to see ya smoke new seats. They look bitchin.
![Very Happy](https://www.gmforum.com/gm/images/smilies/biggrin.gif)
#8
Senior Member
True Car Nut
Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Likes: 0
Received 0 Likes
on
0 Posts
![corvettecrazy is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
not sure if you are going to think about the layout before hand but you may want to try running the wires vertical, so they are in long strips, should make the bending process easier.
#9
BANNED
Thread Starter
Join Date: Mar 2004
Location: Purgatory
Posts: 0
Likes: 0
Received 0 Likes
on
0 Posts
![harofreak00 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
yeah i have something in my head about getting a flat piece of wood and drilling holes for dowels and then wrapping it around them vertical like you said... should need about 20 1" dowels
