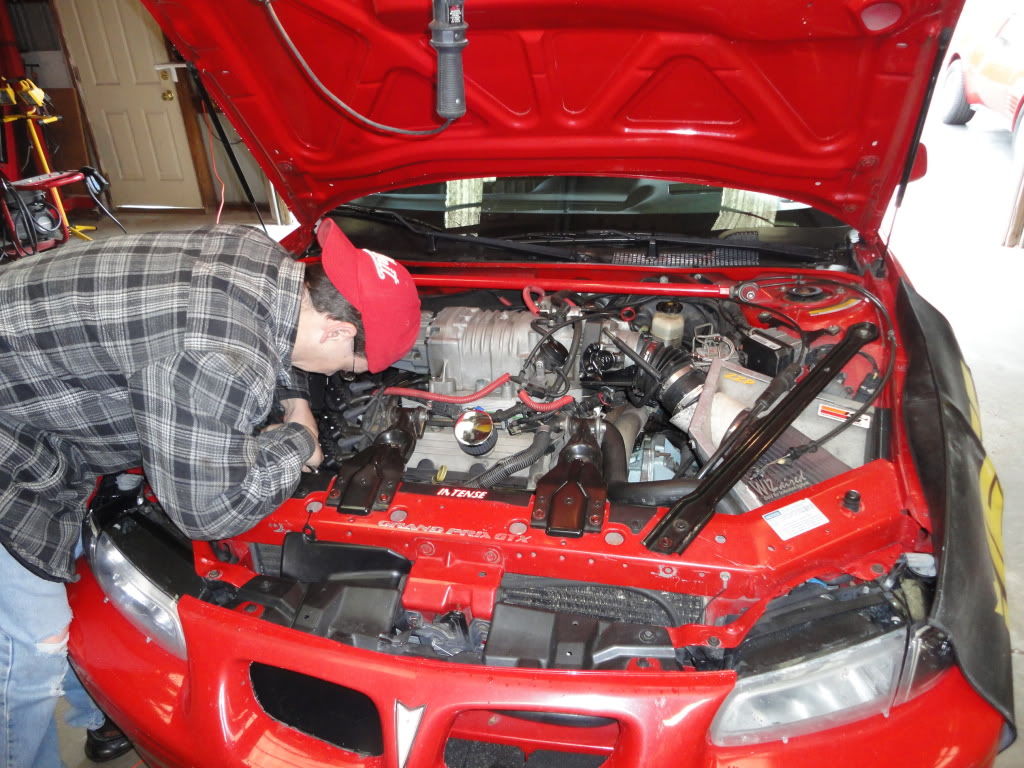

Working on a GP GTX today. Blown supercharger gasket, needs new valve seals, and he has broken 2 valve springs this year. time for a new set.
![Name: DSC00201.jpg
Views: 96
Size: 212.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24027d1501265896-springs-valve-seals-gaskets-dsc00201.jpg)

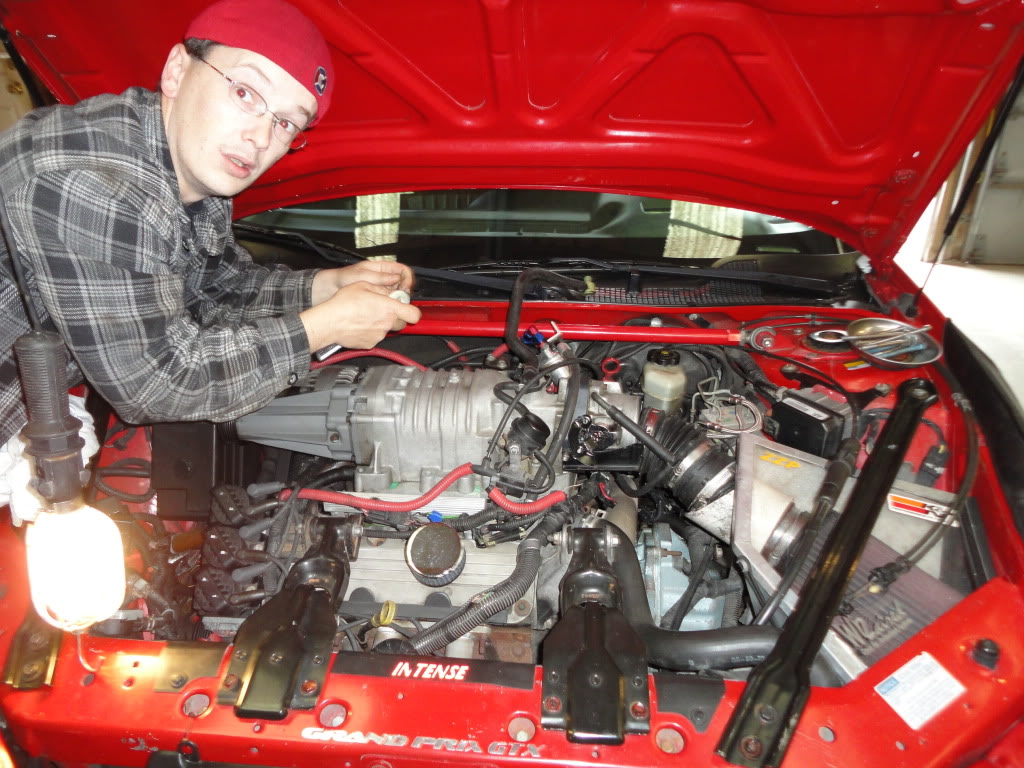

Oh my, what was that flash?
![Name: DSC00202.jpg
Views: 98
Size: 207.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24028d1501265896-springs-valve-seals-gaskets-dsc00202.jpg)
Supercharger off.
![Name: DSC00204.jpg
Views: 96
Size: 211.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24029d1501265896-springs-valve-seals-gaskets-dsc00204.jpg)
OK, I'm not going to say where these SC gaskets came from, but really, do they need to cut that area out?
![Name: DSC00205.jpg
Views: 97
Size: 146.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24030d1501265896-springs-valve-seals-gaskets-dsc00205.jpg)

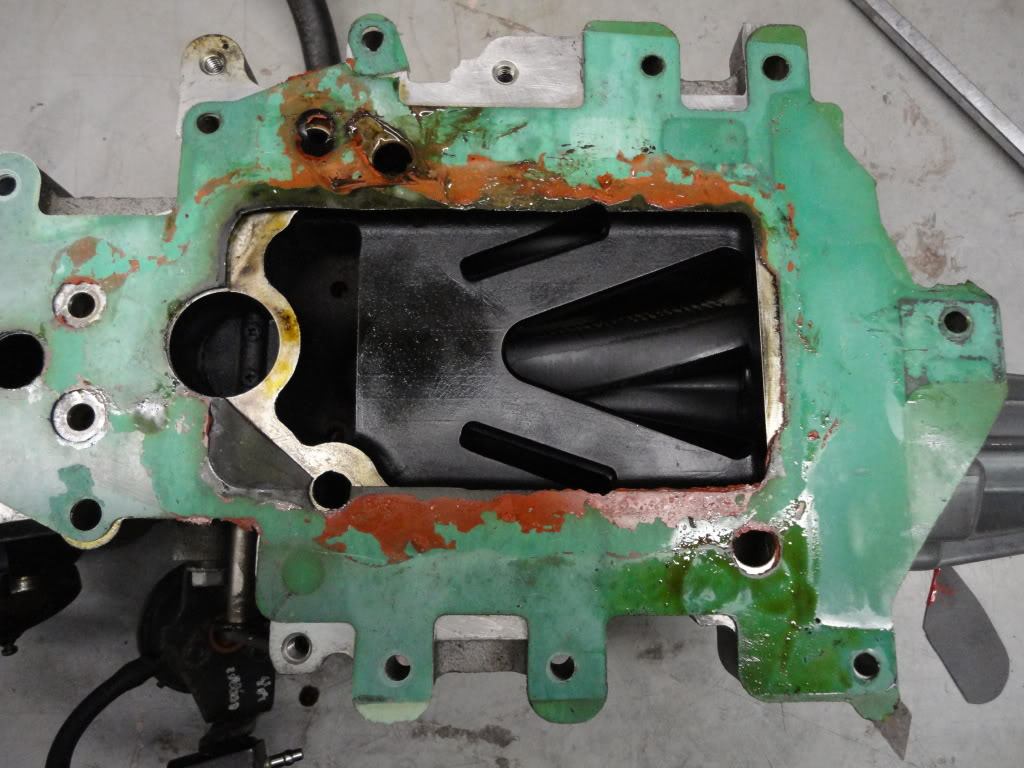

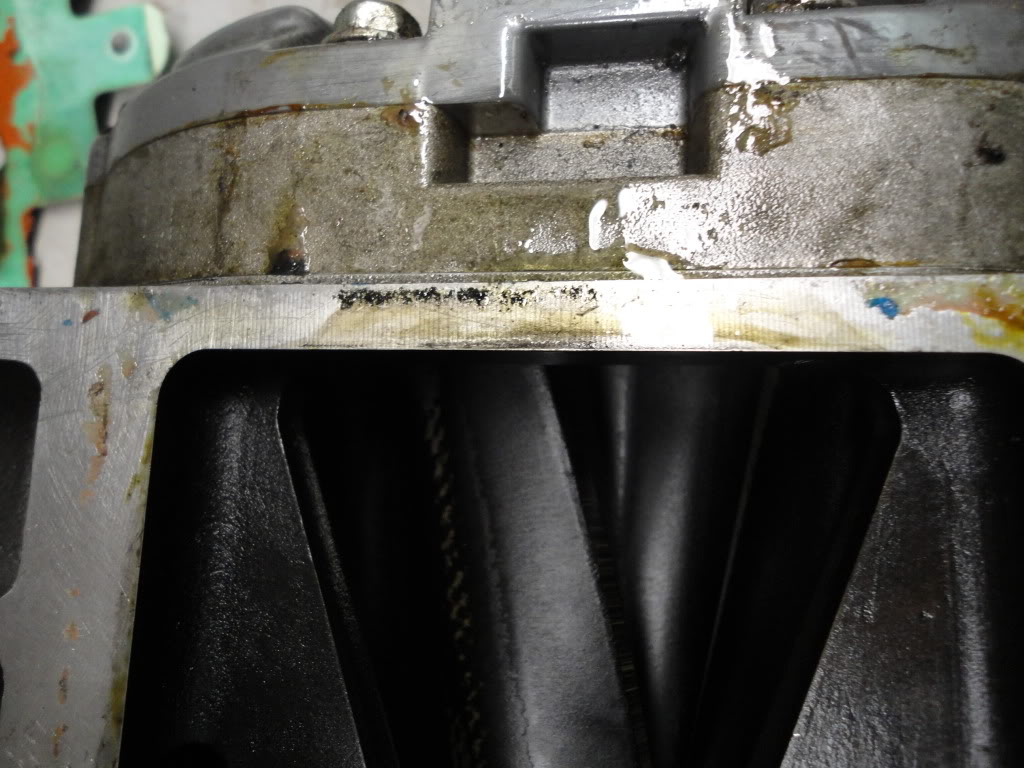

Look at this joke, how can you ever hope to seal up the pressure of high boost with what, less then a 1/8" of sealing surface.
![Name: DSC00206.jpg
Views: 99
Size: 149.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24031d1501265896-springs-valve-seals-gaskets-dsc00206.jpg)
![Name: DSC00207.jpg
Views: 97
Size: 214.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24032d1501265896-springs-valve-seals-gaskets-dsc00207.jpg)

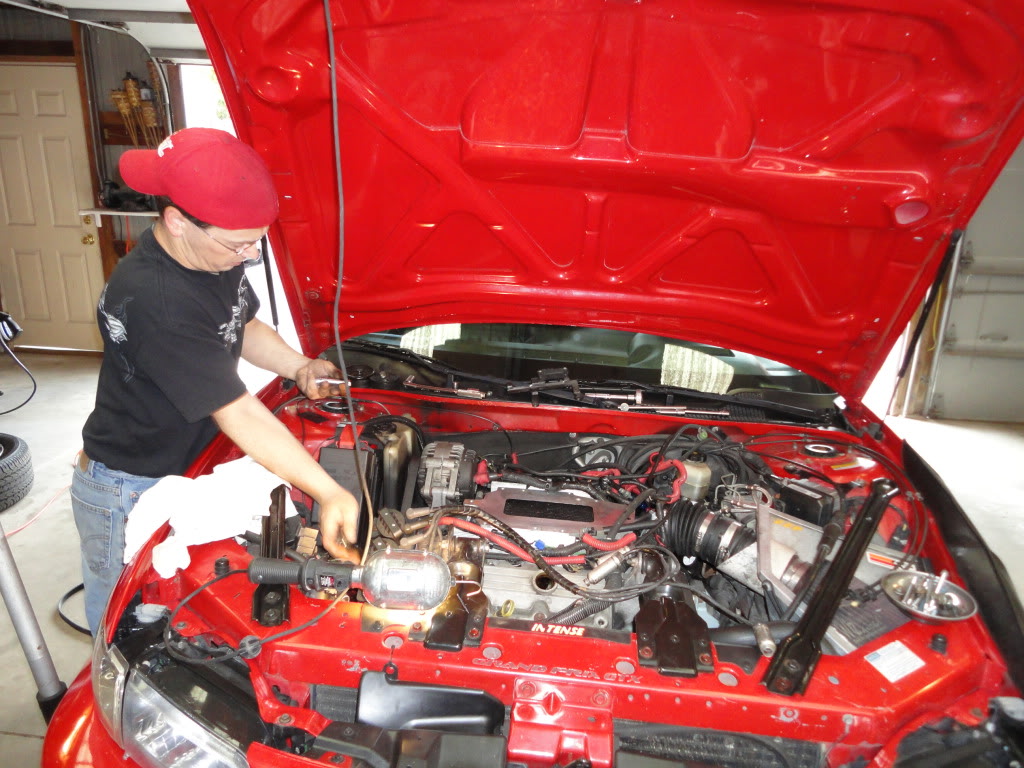

W body cars do not have much room, but taking the supercharger off really opens up the area.
![Name: DSC00208.jpg
Views: 101
Size: 225.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24033d1501265896-springs-valve-seals-gaskets-dsc00208.jpg)
Rockers off.
![Name: DSC00209.jpg
Views: 93
Size: 211.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24034d1501265896-springs-valve-seals-gaskets-dsc00209.jpg)

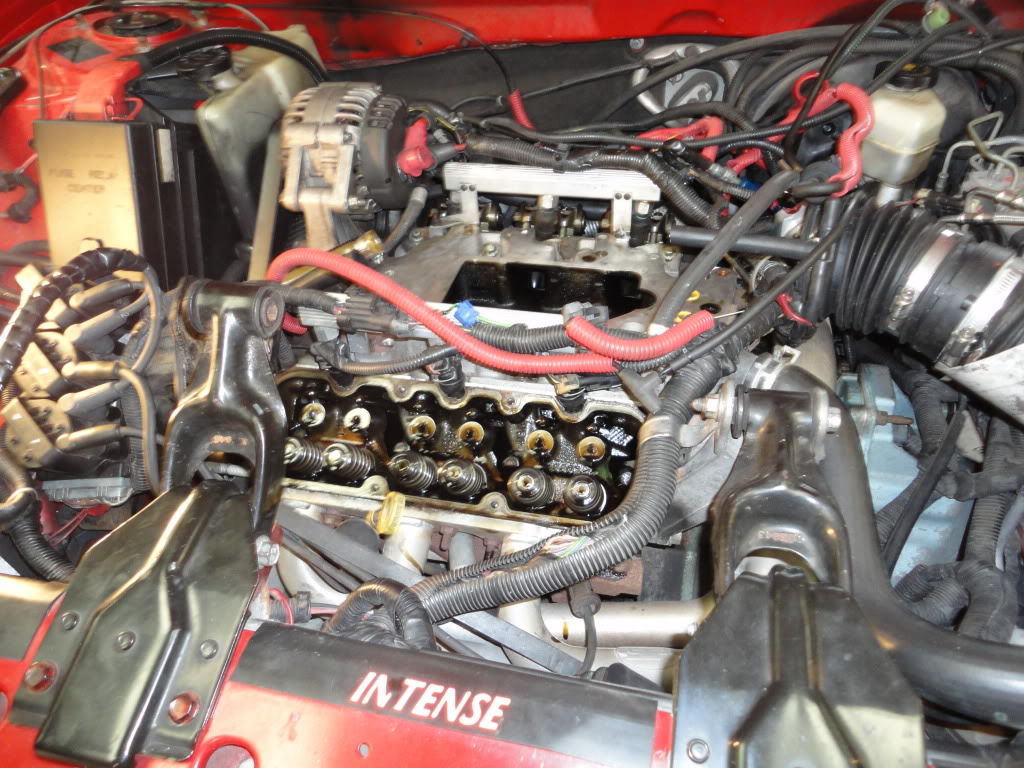

Attacking the rear bank.
![Name: DSC00210.jpg
Views: 98
Size: 158.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24035d1501265896-springs-valve-seals-gaskets-dsc00210.jpg)

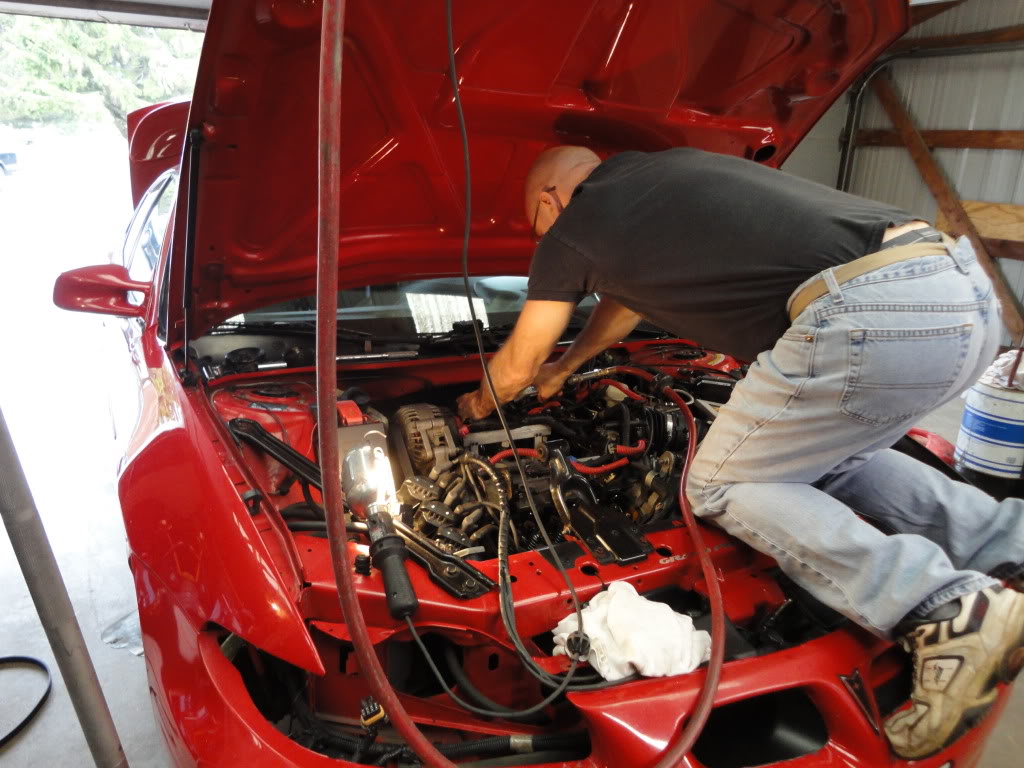

Air tools, what more can be said?
![Name: DSC00211.jpg
Views: 98
Size: 220.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24036d1501265896-springs-valve-seals-gaskets-dsc00211.jpg)
![Name: DSC00212.jpg
Views: 21
Size: 201.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24037d1501265896-springs-valve-seals-gaskets-dsc00212.jpg)

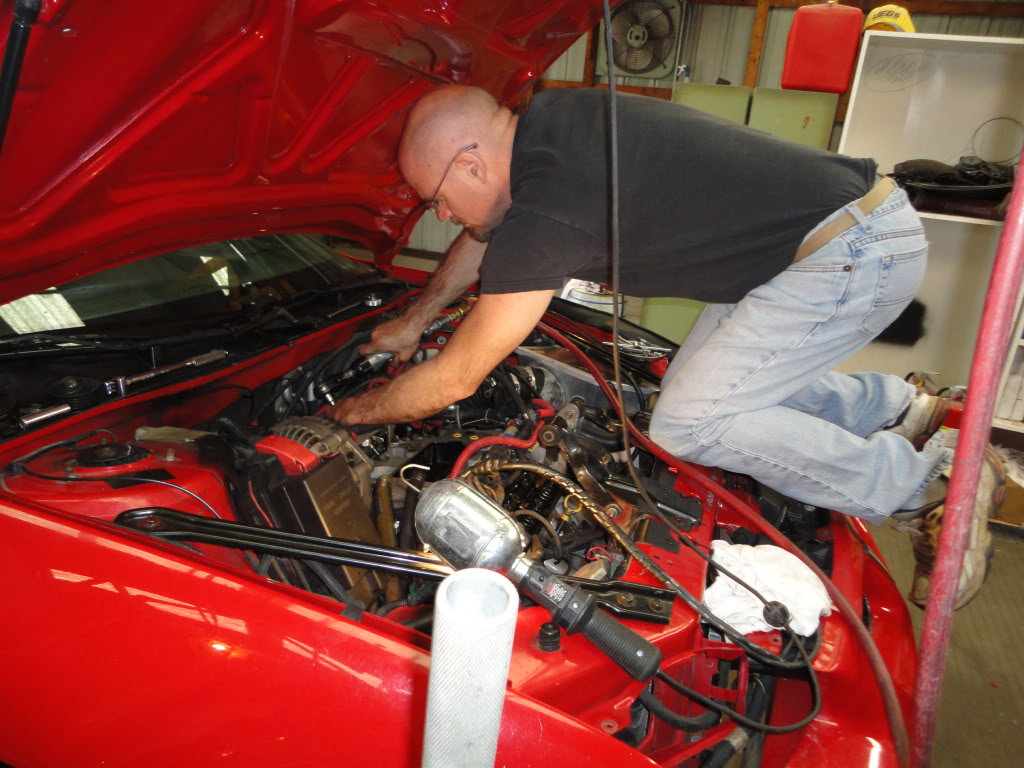

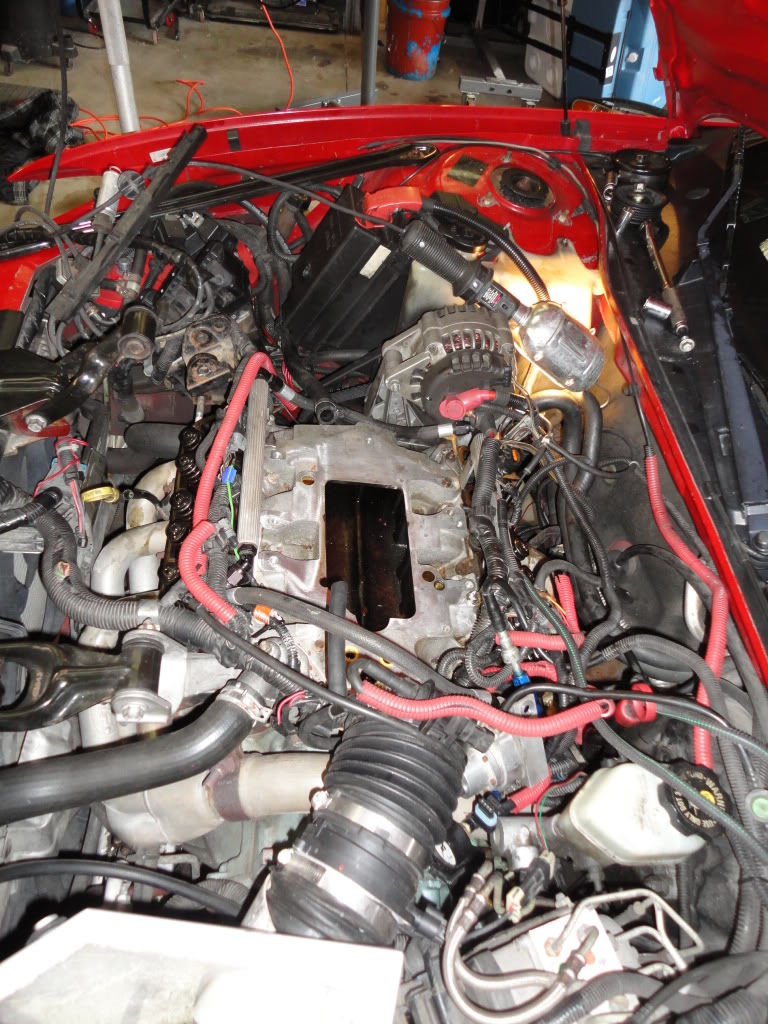

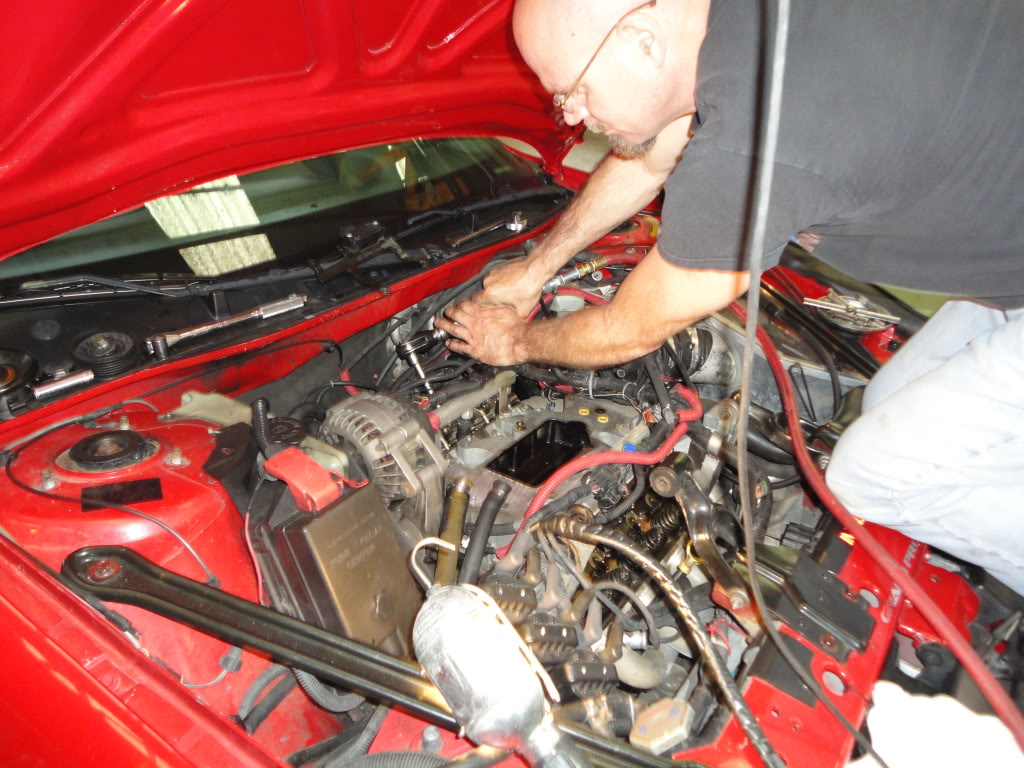

Everything stripped down, about 1 hour in at this point.
![Name: DSC00213.jpg
Views: 22
Size: 215.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24038d1501265896-springs-valve-seals-gaskets-dsc00213.jpg)
Now on to the springs
![Name: DSC00214.jpg
Views: 20
Size: 262.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24039d1501265896-springs-valve-seals-gaskets-dsc00214.jpg)

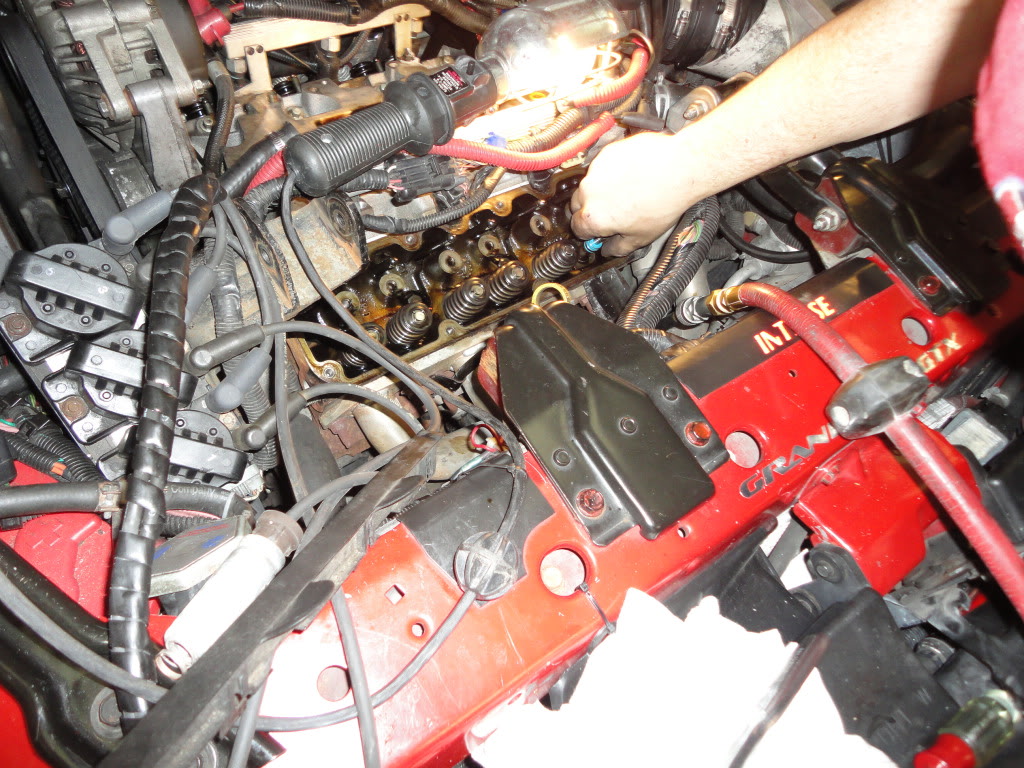

Compressing the spring.
![Name: DSC00215.jpg
Views: 23
Size: 184.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24040d1501265896-springs-valve-seals-gaskets-dsc00215.jpg)

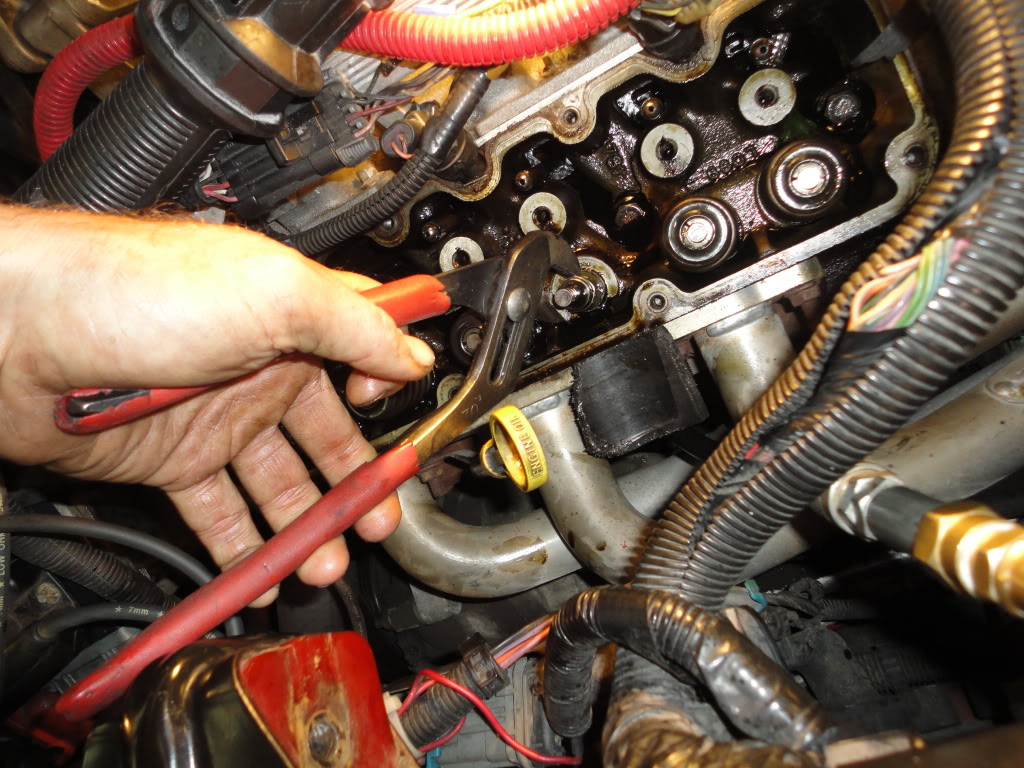

Removing the valve seal.
![Name: DSC00216.jpg
Views: 19
Size: 208.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24041d1501265896-springs-valve-seals-gaskets-dsc00216.jpg)
On with a new seal.
![Name: DSC00217.jpg
Views: 20
Size: 154.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24042d1501265896-springs-valve-seals-gaskets-dsc00217.jpg)

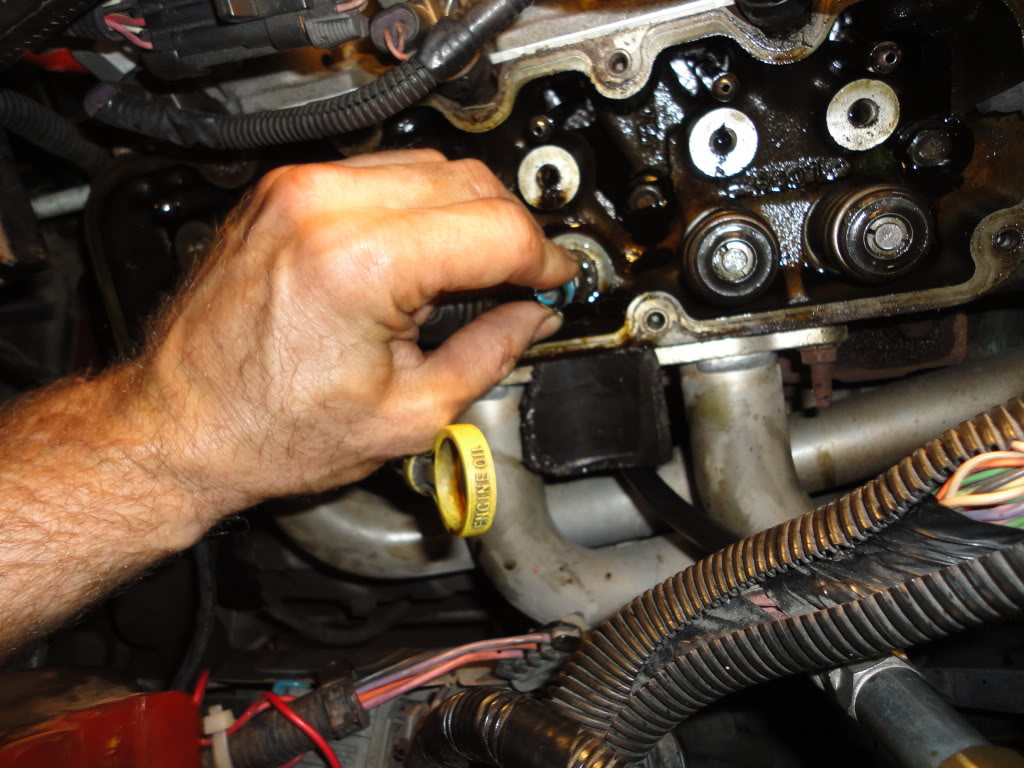

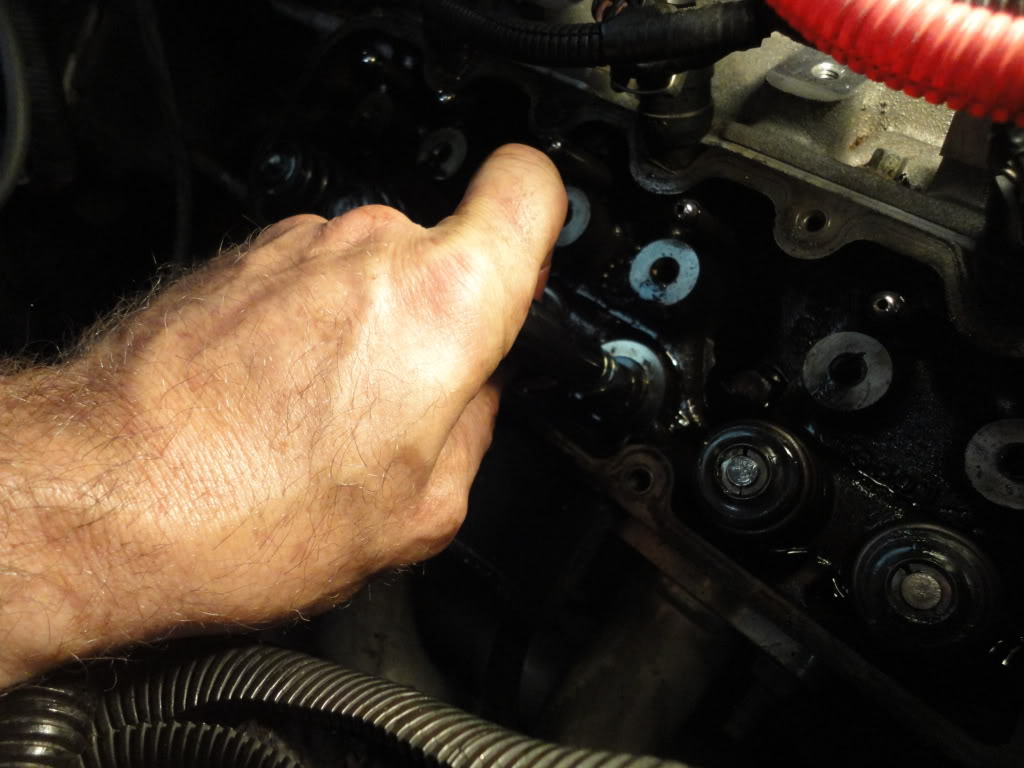

Pressing it in to place with a 3/8" deep well socket.
![Name: DSC00218.jpg
Views: 20
Size: 108.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24043d1501265896-springs-valve-seals-gaskets-dsc00218.jpg)

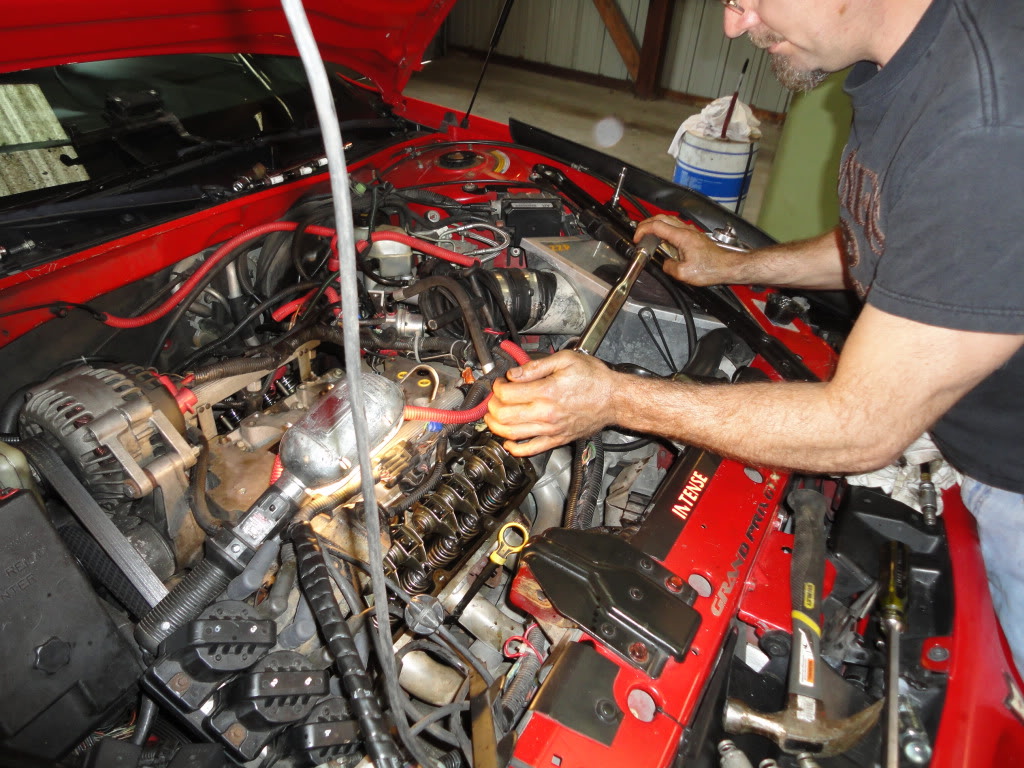

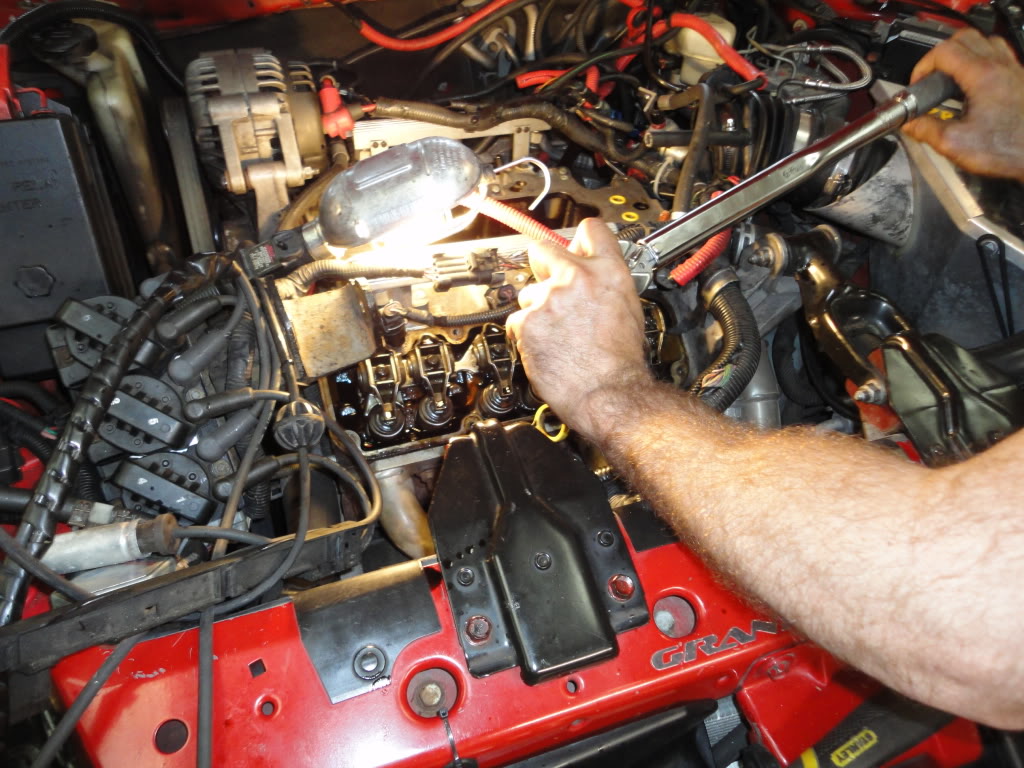

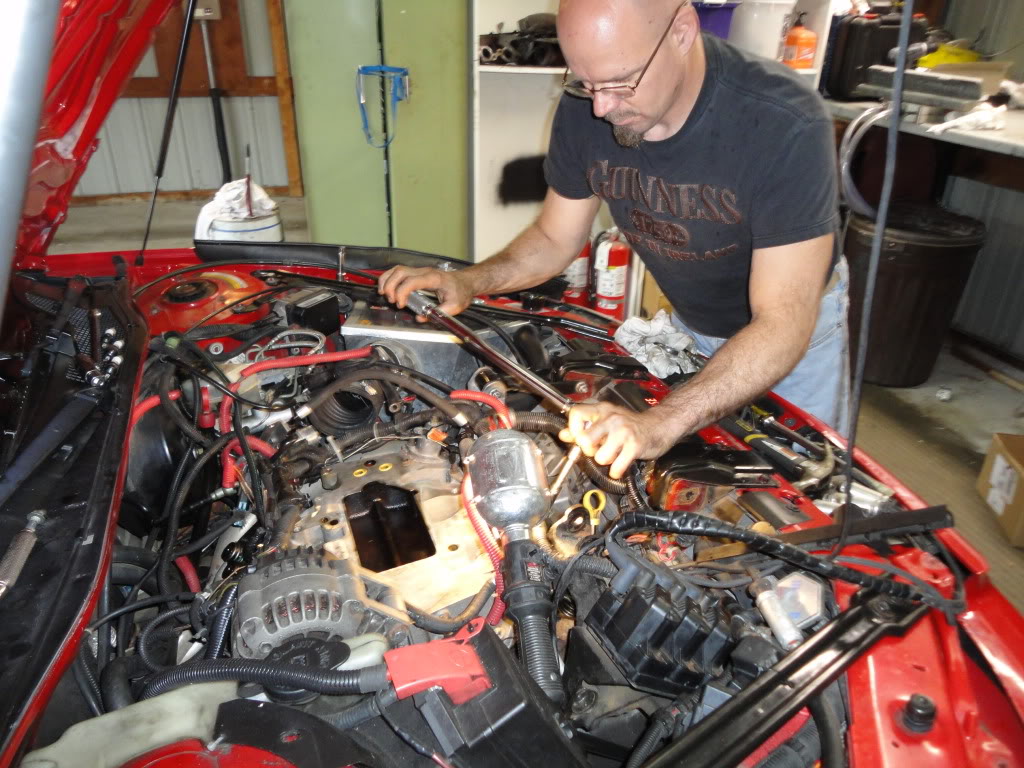

Rockers back in and torquing the bolts.
![Name: DSC00221.jpg
Views: 19
Size: 234.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24044d1501265896-springs-valve-seals-gaskets-dsc00221.jpg)
![Name: DSC00222.jpg
Views: 25
Size: 196.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24045d1501265896-springs-valve-seals-gaskets-dsc00222.jpg)
![Name: DSC00223.jpg
Views: 21
Size: 196.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24046d1501265896-springs-valve-seals-gaskets-dsc00223.jpg)
![Name: DSC00224.jpg
Views: 22
Size: 136.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24047d1501265896-springs-valve-seals-gaskets-dsc00224.jpg)

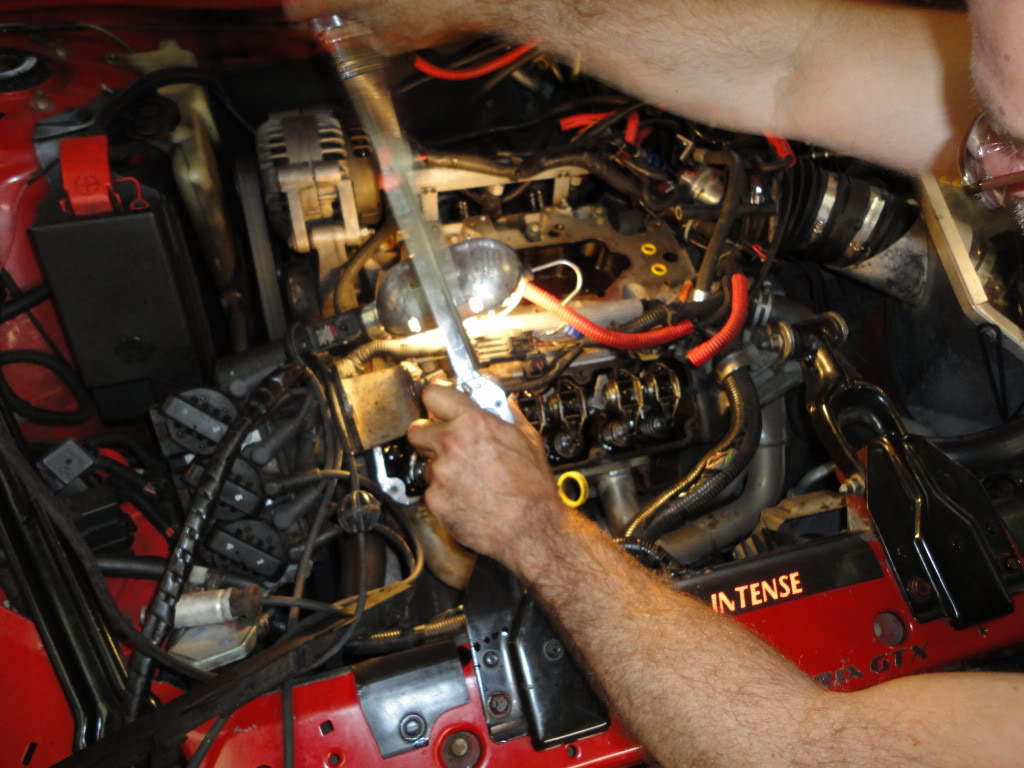

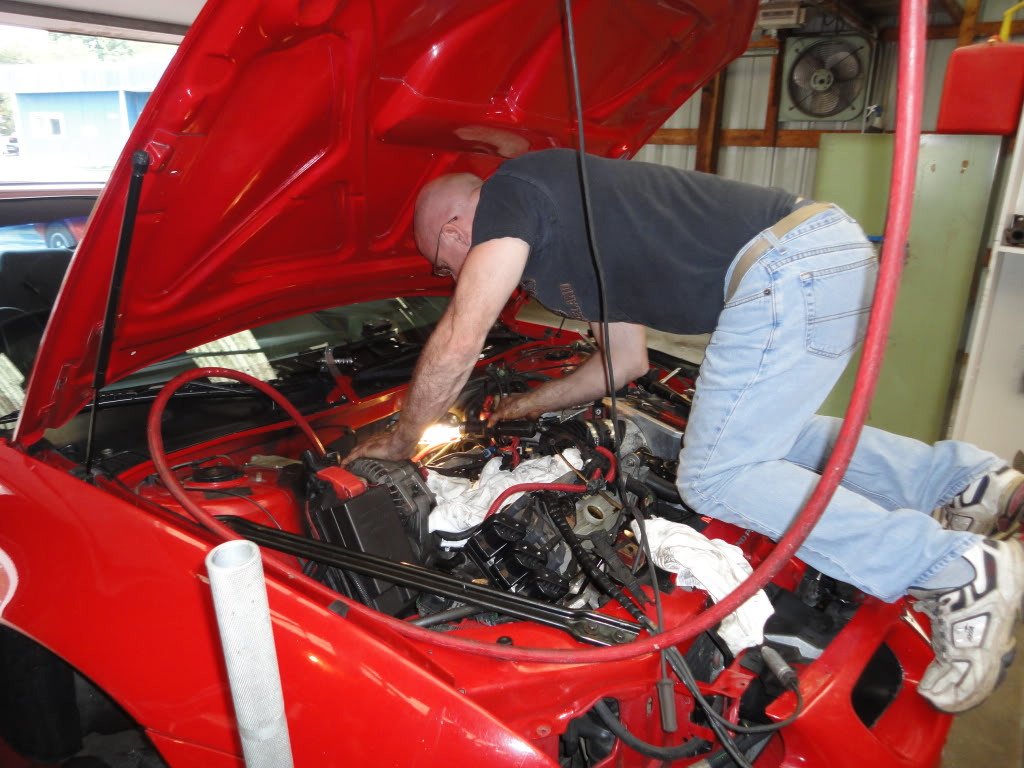

Now the back, less room back here
![Name: DSC00225.jpg
Views: 18
Size: 198.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24048d1501265896-springs-valve-seals-gaskets-dsc00225.jpg)

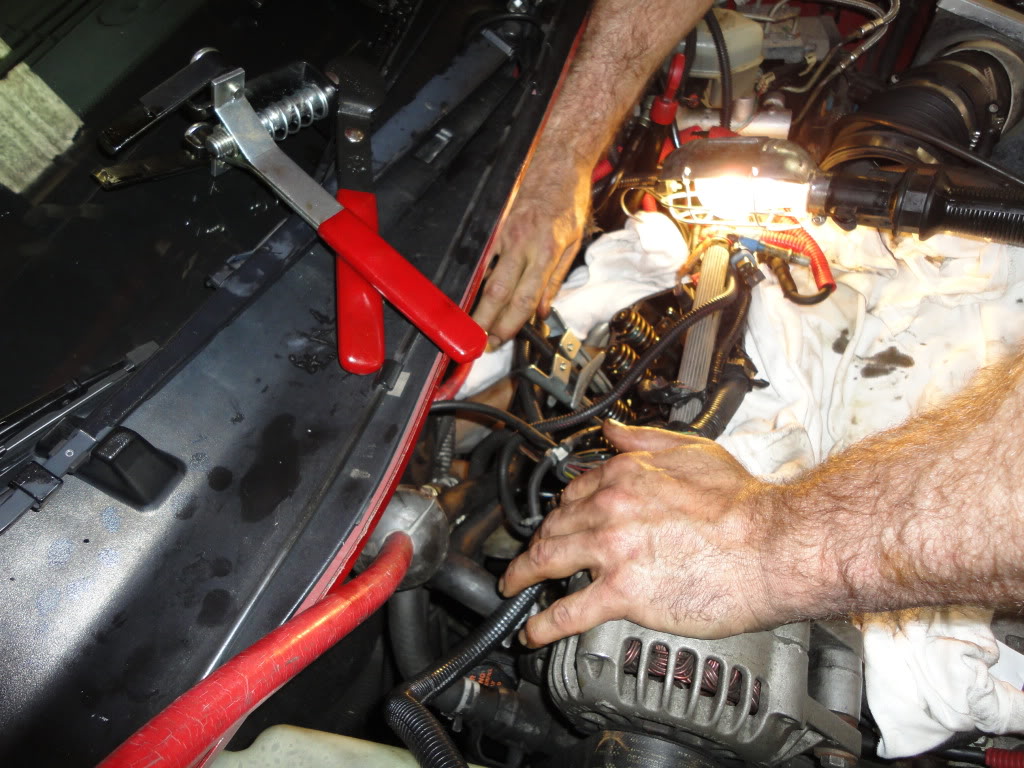

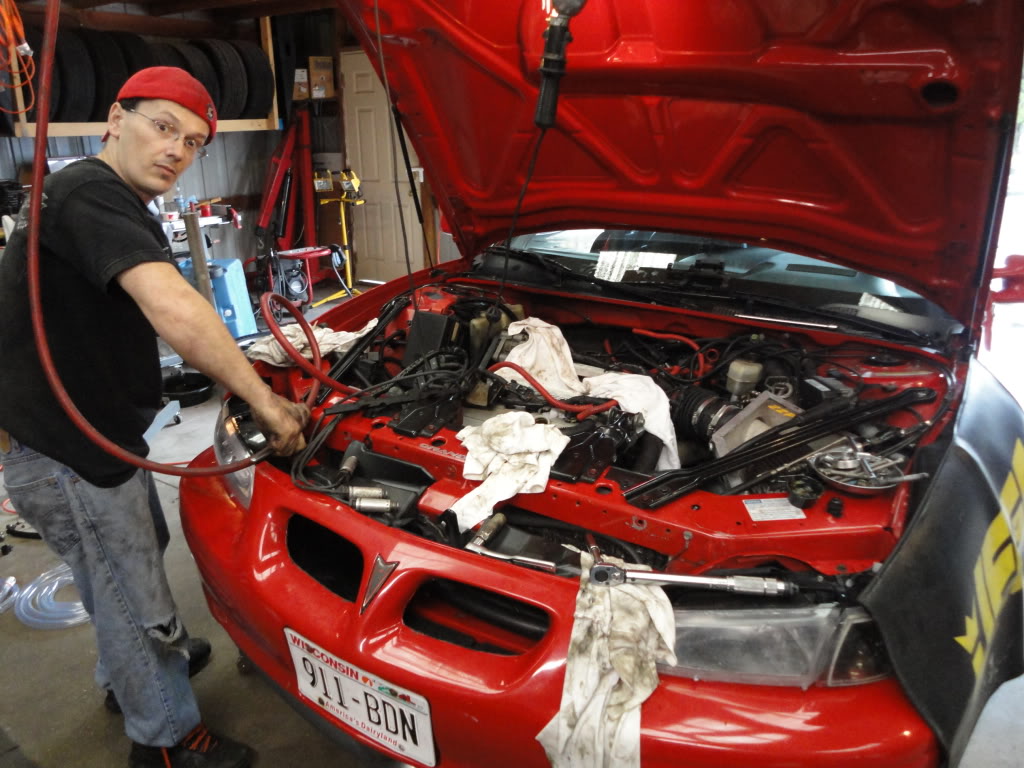

My good compressor don't fit, so I need to use the smaller screw type compressor.
![Name: DSC00226.jpg
Views: 18
Size: 189.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24049d1501265896-springs-valve-seals-gaskets-dsc00226.jpg)
All springs done and rockers back in place. Chris can put the valve cover back on.
![Name: DSC00227.jpg
Views: 19
Size: 196.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24050d1501265896-springs-valve-seals-gaskets-dsc00227.jpg)

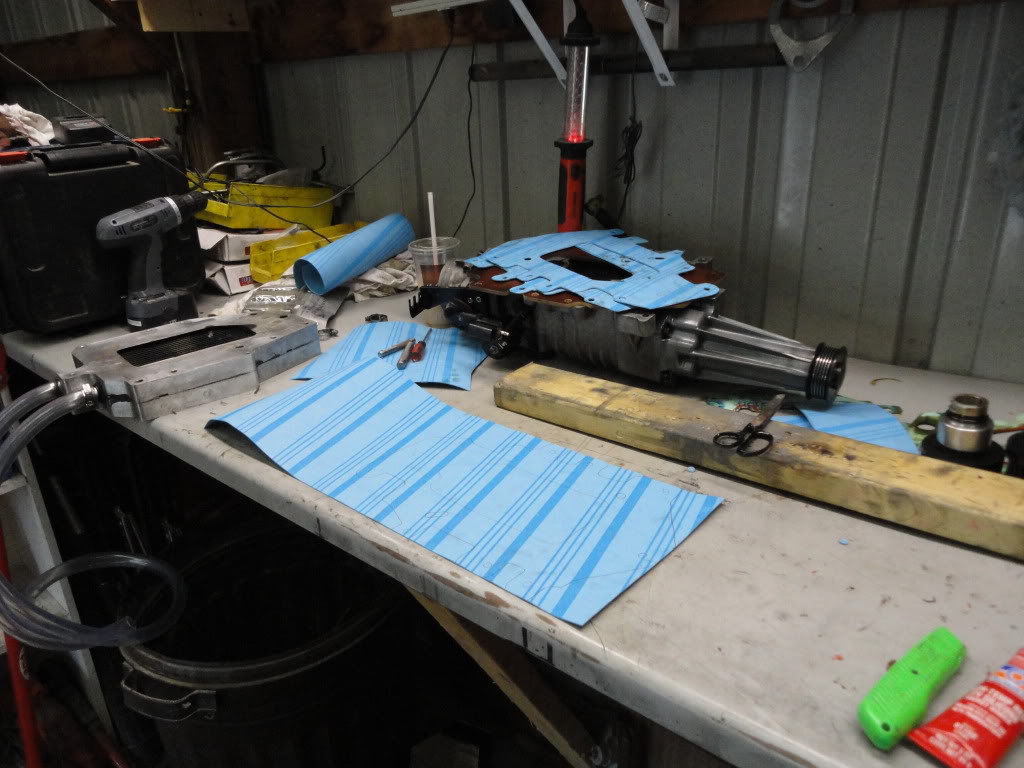

Remember those really stupid gaskets? Ya, so do I. That'* why I started making my own a long time ago.
![Name: DSC00228.jpg
Views: 20
Size: 133.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24051d1501265896-springs-valve-seals-gaskets-dsc00228.jpg)
Why does Chris always look like he'* been startled.
![Name: DSC00229.jpg
Views: 18
Size: 175.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24052d1501265896-springs-valve-seals-gaskets-dsc00229.jpg)

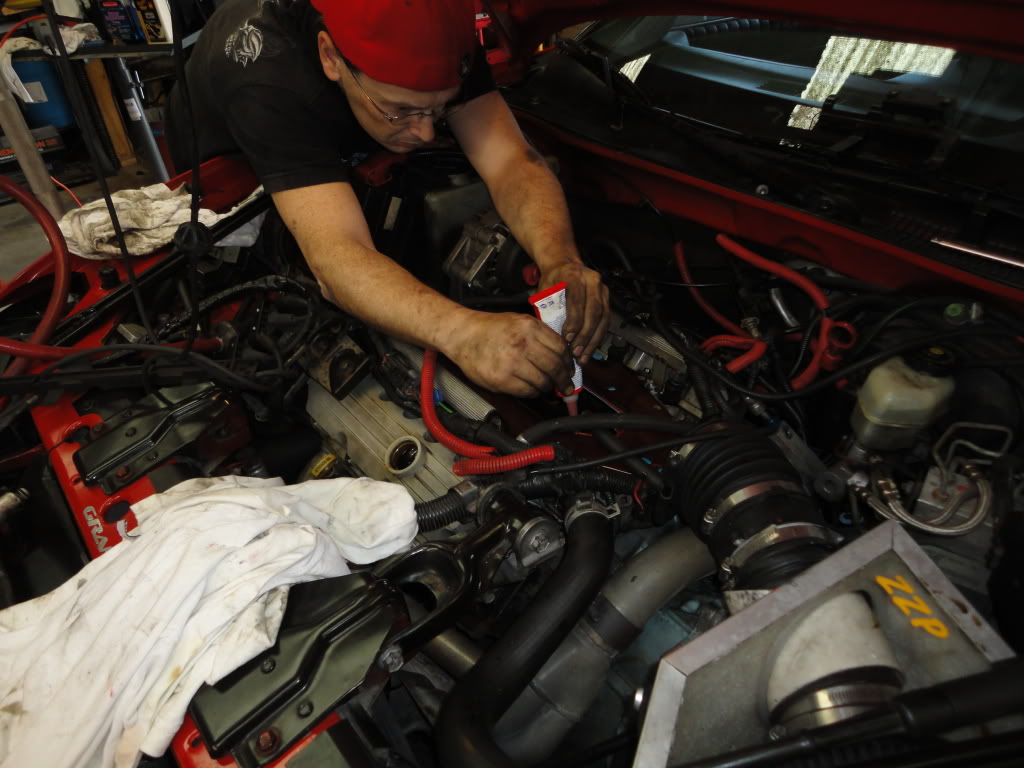

Spacer going in.
![Name: DSC00230.jpg
Views: 20
Size: 130.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24053d1501265896-springs-valve-seals-gaskets-dsc00230.jpg)
Got it all back in. About 5 hours total.
![Name: DSC00201.jpg
Views: 96
Size: 212.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24027d1501265896-springs-valve-seals-gaskets-dsc00201.jpg)
Oh my, what was that flash?
![Name: DSC00202.jpg
Views: 98
Size: 207.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24028d1501265896-springs-valve-seals-gaskets-dsc00202.jpg)
Supercharger off.
![Name: DSC00204.jpg
Views: 96
Size: 211.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24029d1501265896-springs-valve-seals-gaskets-dsc00204.jpg)
OK, I'm not going to say where these SC gaskets came from, but really, do they need to cut that area out?
![Name: DSC00205.jpg
Views: 97
Size: 146.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24030d1501265896-springs-valve-seals-gaskets-dsc00205.jpg)
Look at this joke, how can you ever hope to seal up the pressure of high boost with what, less then a 1/8" of sealing surface.
![Name: DSC00206.jpg
Views: 99
Size: 149.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24031d1501265896-springs-valve-seals-gaskets-dsc00206.jpg)
![Name: DSC00207.jpg
Views: 97
Size: 214.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24032d1501265896-springs-valve-seals-gaskets-dsc00207.jpg)
W body cars do not have much room, but taking the supercharger off really opens up the area.

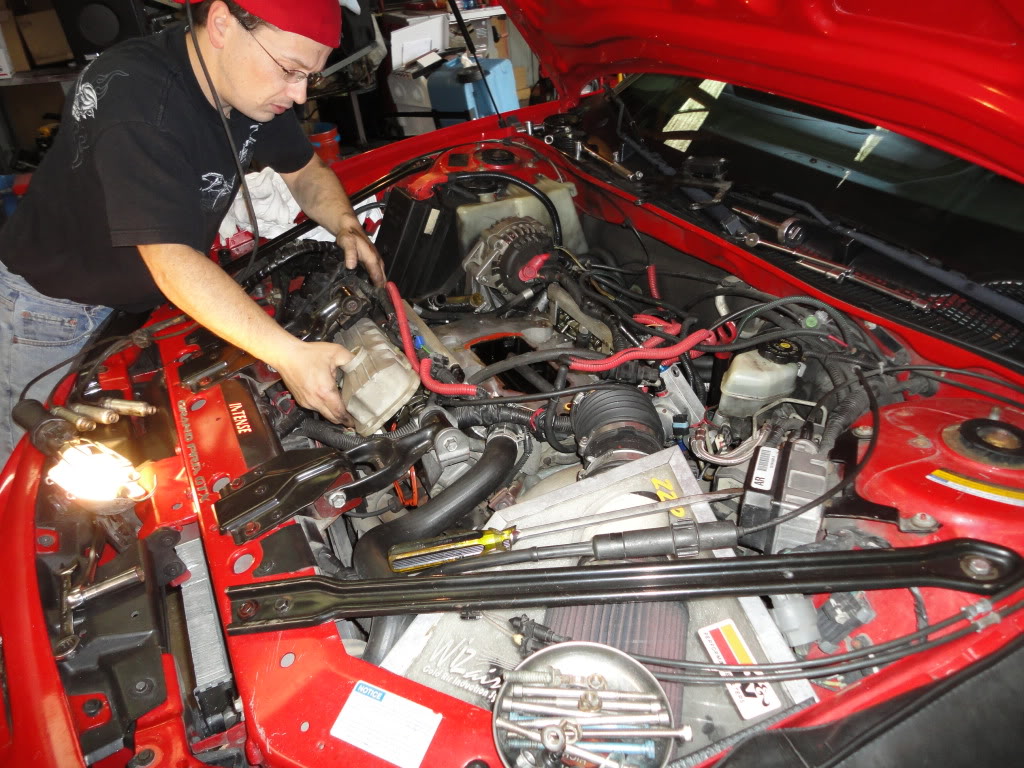

![Name: DSC00208.jpg
Views: 101
Size: 225.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24033d1501265896-springs-valve-seals-gaskets-dsc00208.jpg)
Rockers off.
![Name: DSC00209.jpg
Views: 93
Size: 211.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24034d1501265896-springs-valve-seals-gaskets-dsc00209.jpg)
Attacking the rear bank.
![Name: DSC00210.jpg
Views: 98
Size: 158.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24035d1501265896-springs-valve-seals-gaskets-dsc00210.jpg)
Air tools, what more can be said?
![Name: DSC00211.jpg
Views: 98
Size: 220.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24036d1501265896-springs-valve-seals-gaskets-dsc00211.jpg)
![Name: DSC00212.jpg
Views: 21
Size: 201.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24037d1501265896-springs-valve-seals-gaskets-dsc00212.jpg)
Everything stripped down, about 1 hour in at this point.
![Name: DSC00213.jpg
Views: 22
Size: 215.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24038d1501265896-springs-valve-seals-gaskets-dsc00213.jpg)
Now on to the springs
![Name: DSC00214.jpg
Views: 20
Size: 262.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24039d1501265896-springs-valve-seals-gaskets-dsc00214.jpg)

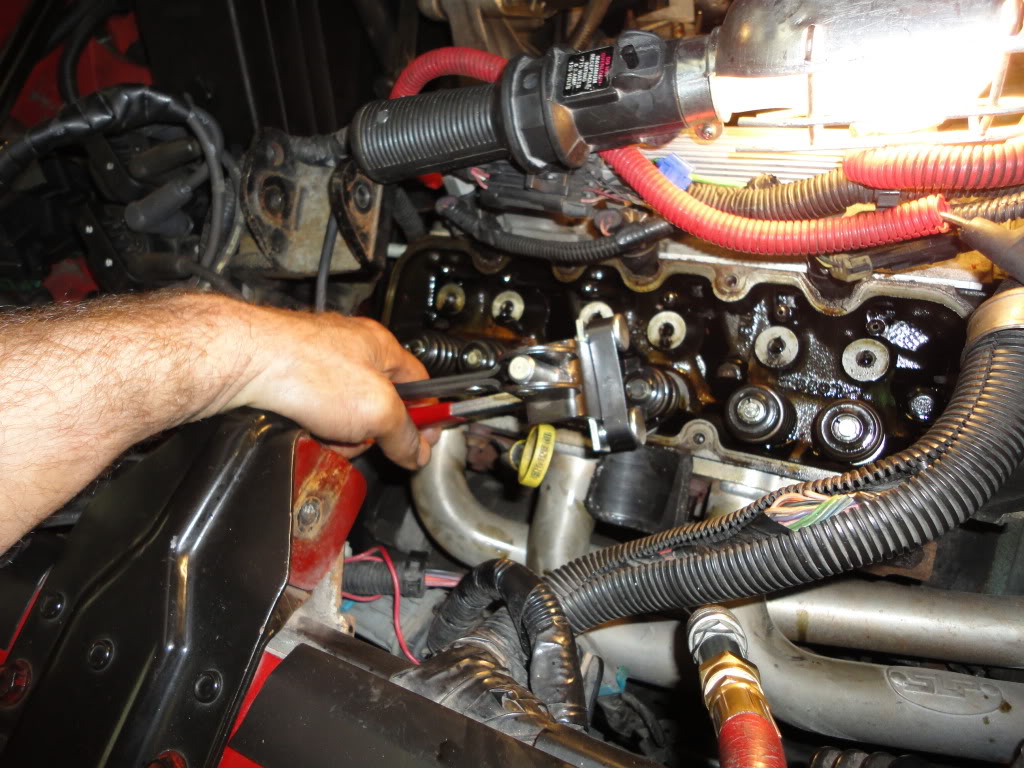

Compressing the spring.
![Name: DSC00215.jpg
Views: 23
Size: 184.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24040d1501265896-springs-valve-seals-gaskets-dsc00215.jpg)
Removing the valve seal.
![Name: DSC00216.jpg
Views: 19
Size: 208.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24041d1501265896-springs-valve-seals-gaskets-dsc00216.jpg)
On with a new seal.
![Name: DSC00217.jpg
Views: 20
Size: 154.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24042d1501265896-springs-valve-seals-gaskets-dsc00217.jpg)
Pressing it in to place with a 3/8" deep well socket.
![Name: DSC00218.jpg
Views: 20
Size: 108.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24043d1501265896-springs-valve-seals-gaskets-dsc00218.jpg)
Rockers back in and torquing the bolts.
![Name: DSC00221.jpg
Views: 19
Size: 234.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24044d1501265896-springs-valve-seals-gaskets-dsc00221.jpg)
![Name: DSC00222.jpg
Views: 25
Size: 196.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24045d1501265896-springs-valve-seals-gaskets-dsc00222.jpg)
![Name: DSC00223.jpg
Views: 21
Size: 196.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24046d1501265896-springs-valve-seals-gaskets-dsc00223.jpg)
![Name: DSC00224.jpg
Views: 22
Size: 136.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24047d1501265896-springs-valve-seals-gaskets-dsc00224.jpg)
Now the back, less room back here
![Name: DSC00225.jpg
Views: 18
Size: 198.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24048d1501265896-springs-valve-seals-gaskets-dsc00225.jpg)
My good compressor don't fit, so I need to use the smaller screw type compressor.
![Name: DSC00226.jpg
Views: 18
Size: 189.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24049d1501265896-springs-valve-seals-gaskets-dsc00226.jpg)
All springs done and rockers back in place. Chris can put the valve cover back on.
![Name: DSC00227.jpg
Views: 19
Size: 196.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24050d1501265896-springs-valve-seals-gaskets-dsc00227.jpg)
Remember those really stupid gaskets? Ya, so do I. That'* why I started making my own a long time ago.
![Name: DSC00228.jpg
Views: 20
Size: 133.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24051d1501265896-springs-valve-seals-gaskets-dsc00228.jpg)
Why does Chris always look like he'* been startled.
![Name: DSC00229.jpg
Views: 18
Size: 175.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24052d1501265896-springs-valve-seals-gaskets-dsc00229.jpg)
Spacer going in.
![Name: DSC00230.jpg
Views: 20
Size: 130.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/24053d1501265896-springs-valve-seals-gaskets-dsc00230.jpg)

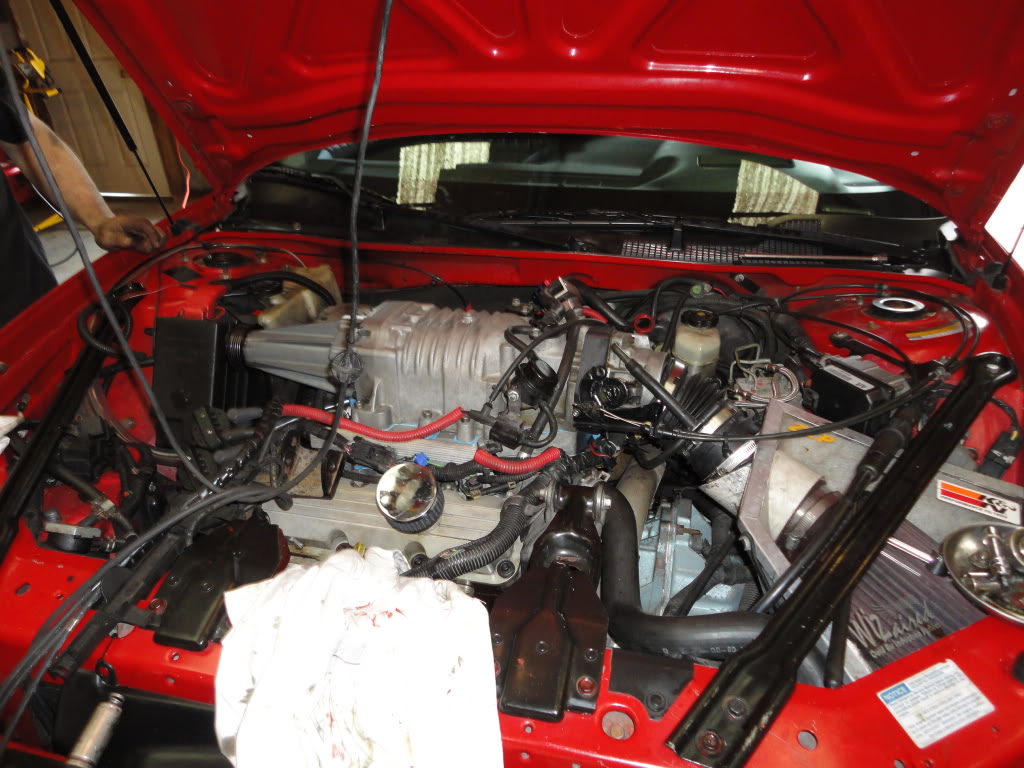

Got it all back in. About 5 hours total.
![Name: DSC00231.jpg
