Looks like I have the transmission all back together.
I started by removing all the parts to clean them up and verify everything is back together right.
![Name: P2210163.jpg
Views: 238
Size: 125.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25771d1501269295-spring-build-comes-early-p2210163.jpg)

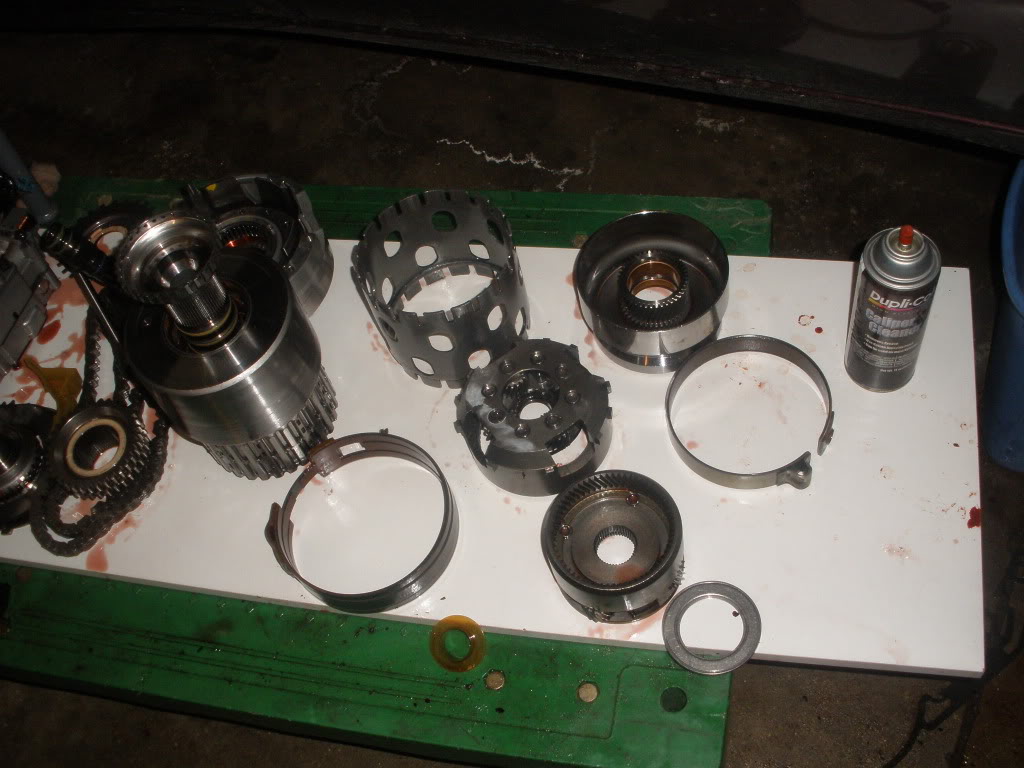

The thrust bearing assembly
![Name: P2210165.jpg
Views: 244
Size: 130.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25772d1501269295-spring-build-comes-early-p2210165.jpg)

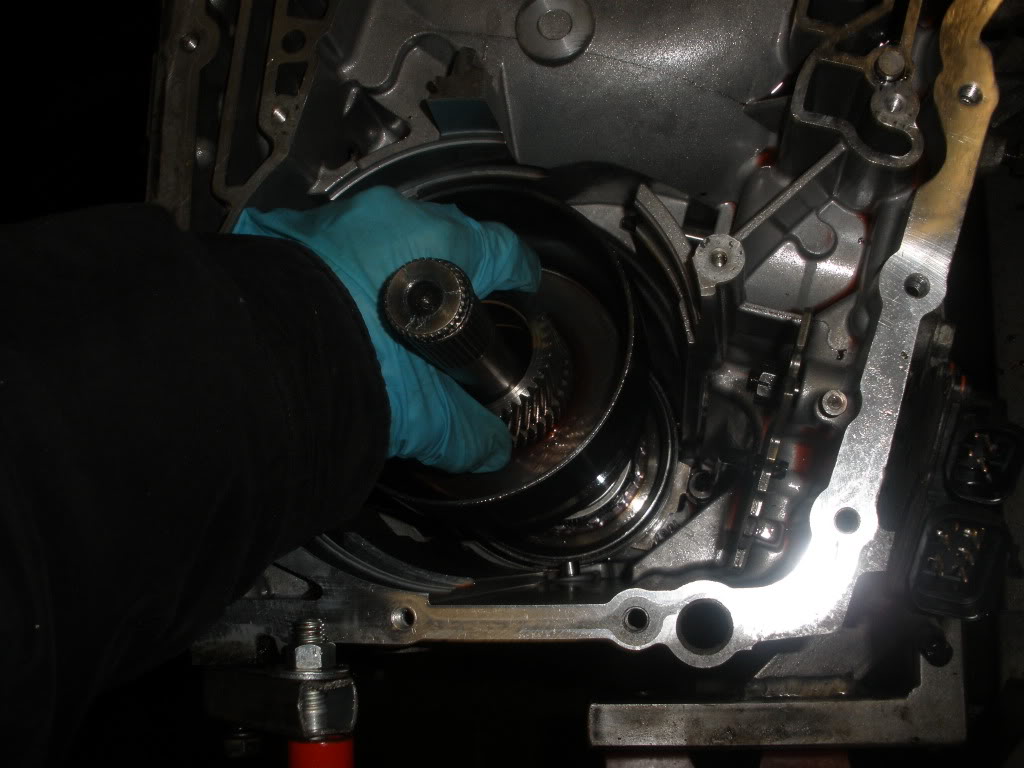

Installing the reaction sun gear drum
![Name: P2210164.jpg
Views: 331
Size: 113.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25773d1501269295-spring-build-comes-early-p2210164.jpg)
The reaction sun gear assembly
![Name: P2210166.jpg
Views: 206
Size: 173.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25774d1501269295-spring-build-comes-early-p2210166.jpg)

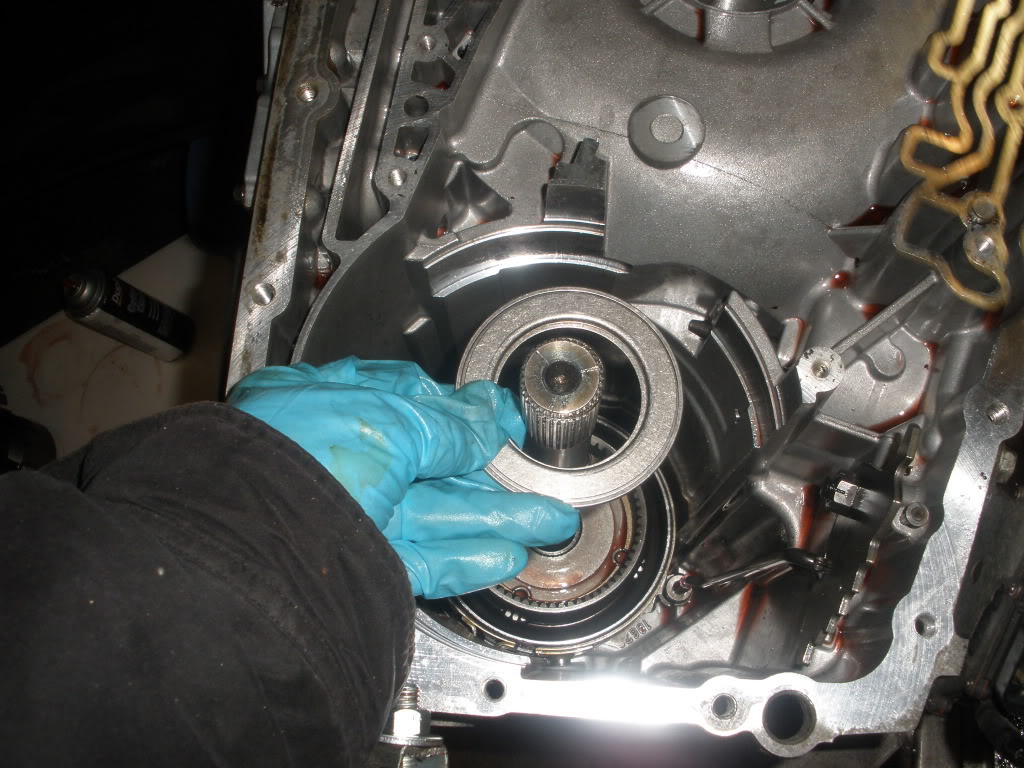

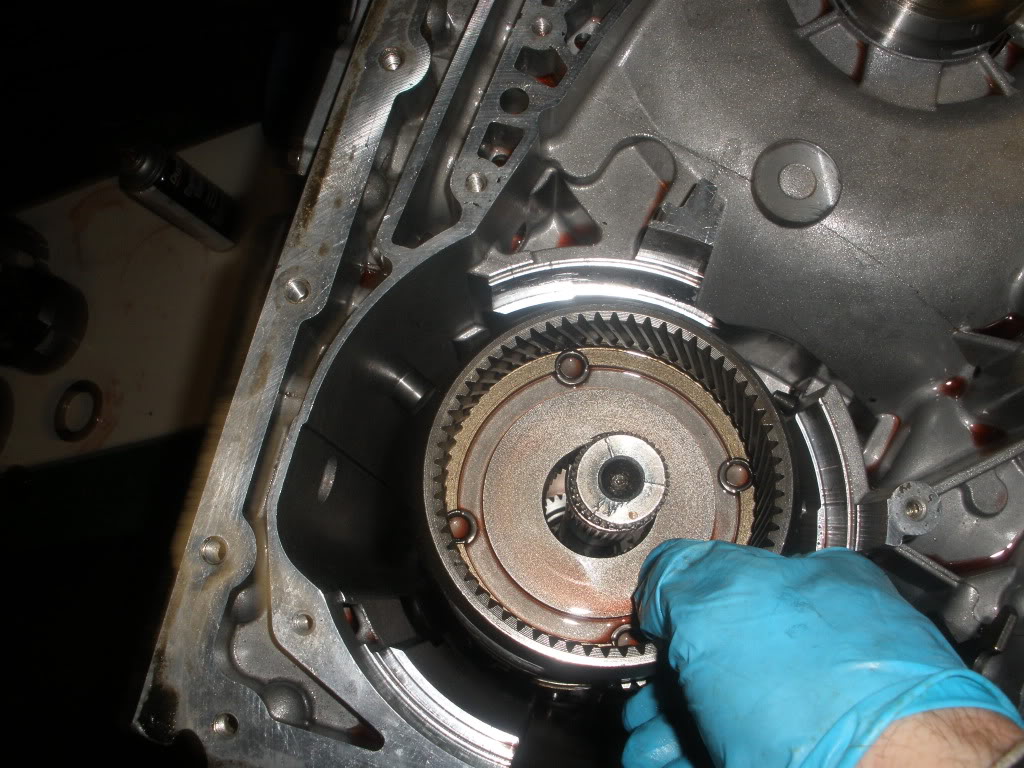

Input carrier thrust bearing.
![Name: P2210167.jpg
Views: 271
Size: 167.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25775d1501269295-spring-build-comes-early-p2210167.jpg)

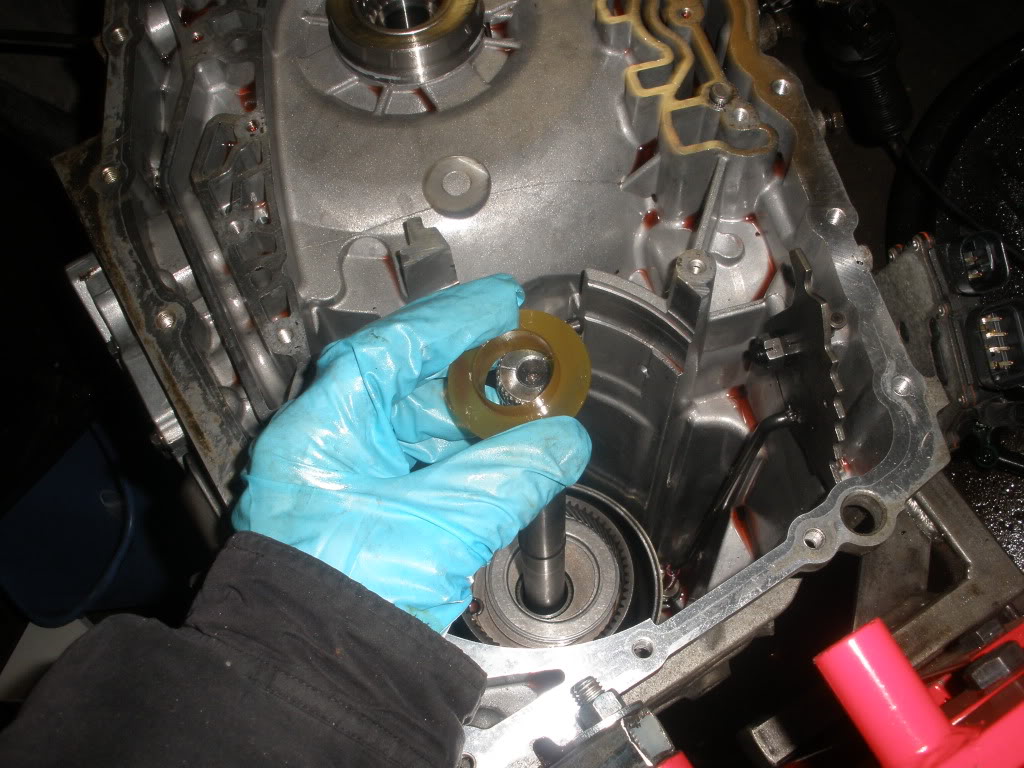

Oil dam
![Name: P2210168.jpg
Views: 258
Size: 158.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25776d1501269295-spring-build-comes-early-p2210168.jpg)

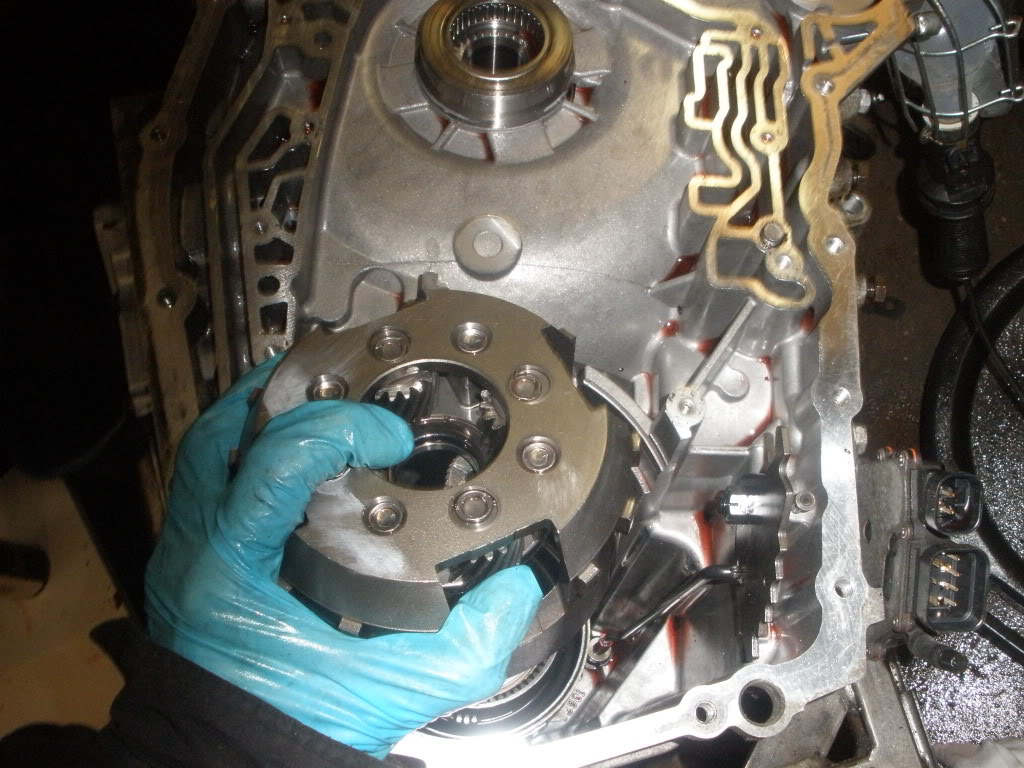

Input carrier assembly
![Name: P2210169.jpg
Views: 284
Size: 169.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25777d1501269295-spring-build-comes-early-p2210169.jpg)
The ATSG manual, a big help
![](http://i638.photobucket.com/albums/uu103/danthurs/car/project/P2210170.jpg)

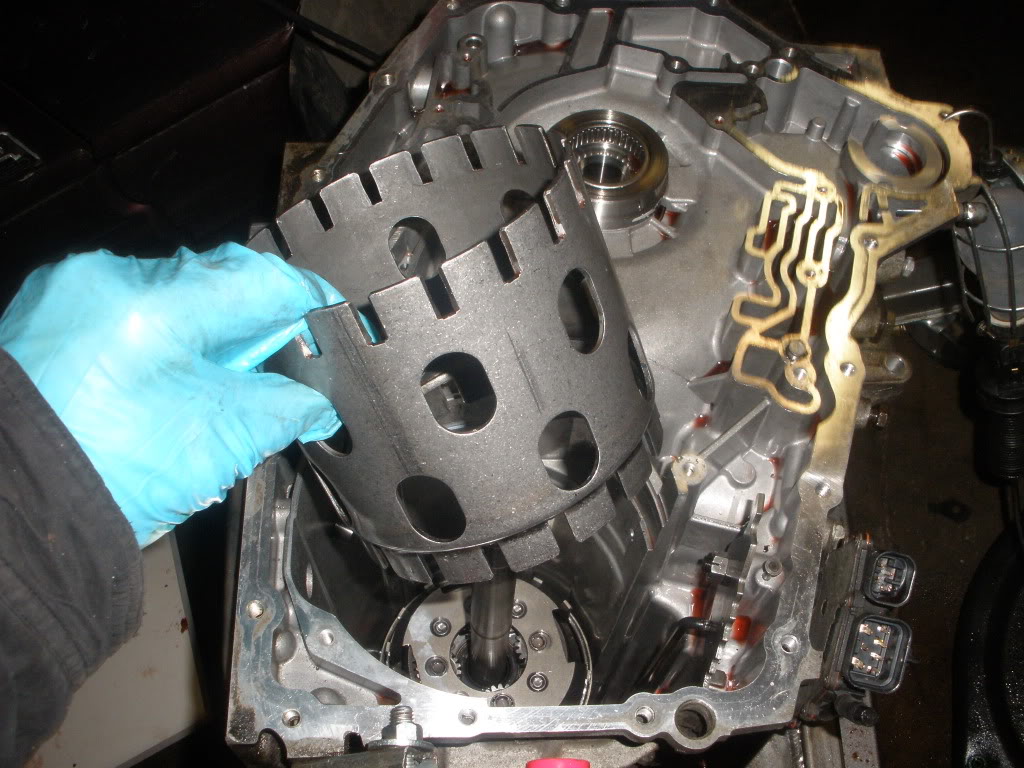

Reverse reaction drum.
![Name: P2210171.jpg
Views: 266
Size: 166.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25778d1501269295-spring-build-comes-early-p2210171.jpg)

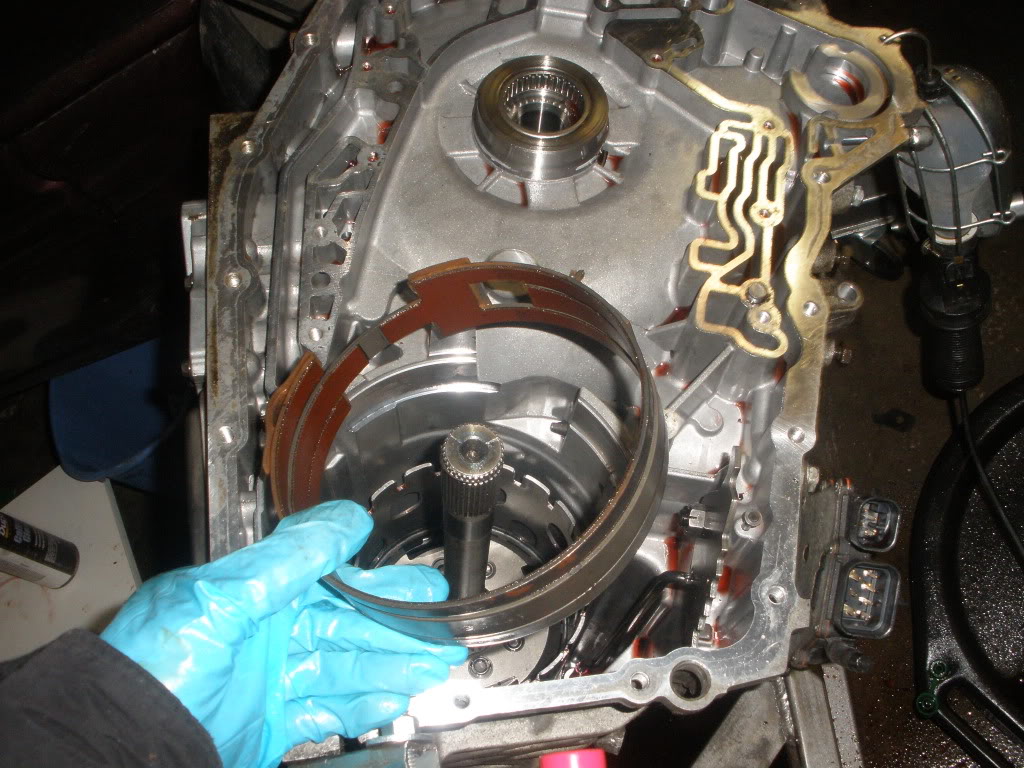

Reverse band.
![Name: P2210172.jpg
Views: 283
Size: 181.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25779d1501269295-spring-build-comes-early-p2210172.jpg)
Input housing with all clutches, all held with the home made holder.
![](http://i638.photobucket.com/albums/uu103/danthurs/car/project/P2210173.jpg)

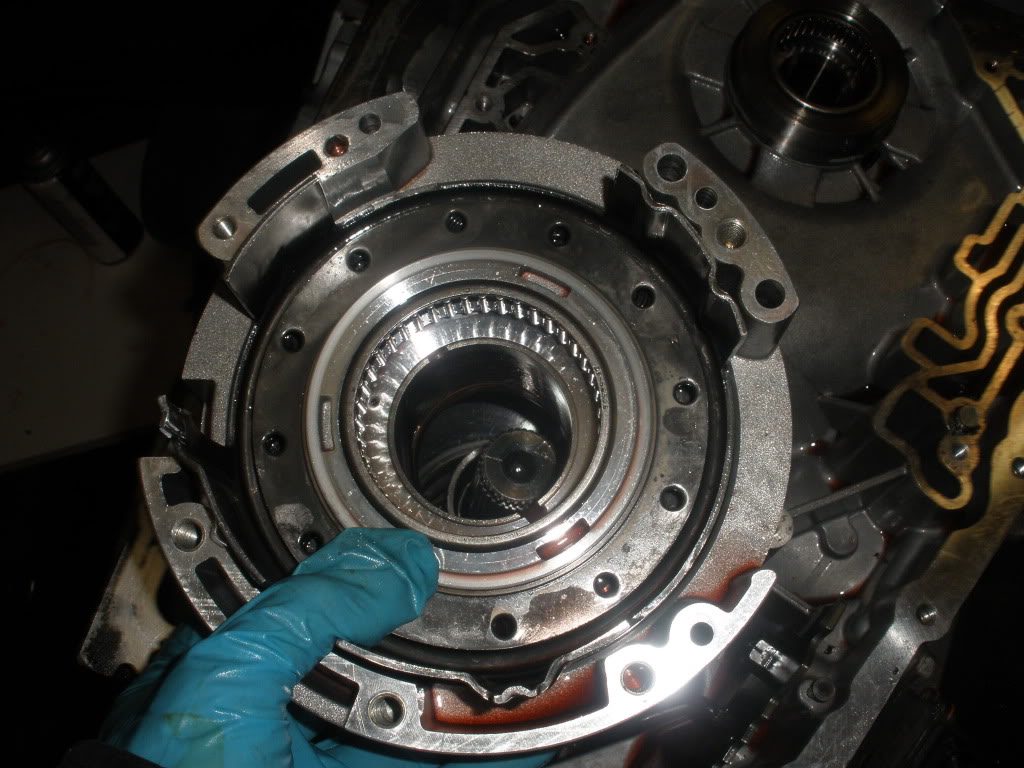

4th clutch piston assembly.
![Name: P2210174.jpg
Views: 324
Size: 152.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25780d1501269295-spring-build-comes-early-p2210174.jpg)

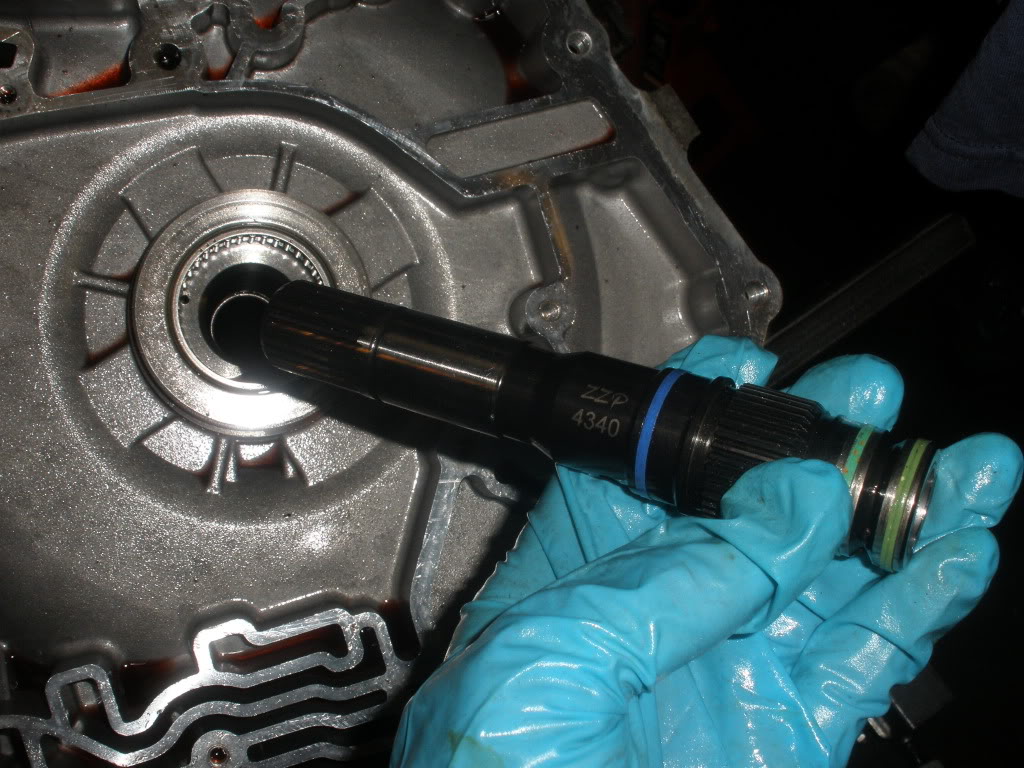

Hardened input shaft.
![Name: P2210175.jpg
Views: 276
Size: 176.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25781d1501269295-spring-build-comes-early-p2210175.jpg)

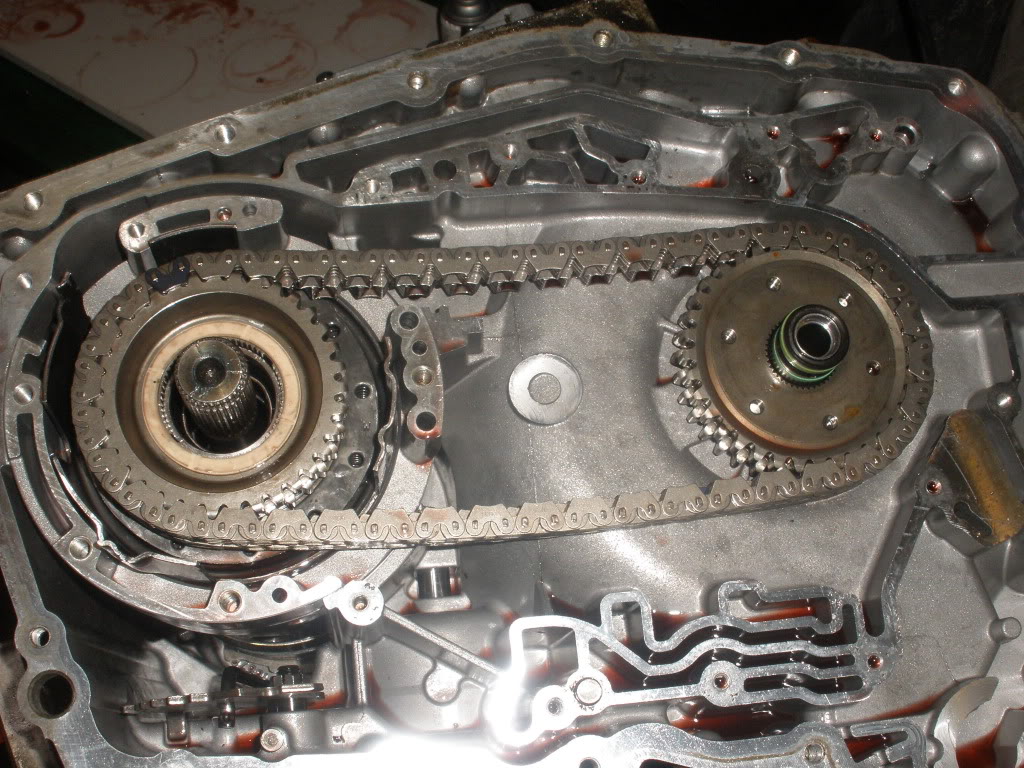

3.29 gears and transfer chain.
![Name: P2210176.jpg
Views: 239
Size: 213.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25782d1501269295-spring-build-comes-early-p2210176.jpg)
Reluctor wheel and oil pump shaft.
![Name: P2210177.jpg
Views: 335
Size: 210.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25783d1501269295-spring-build-comes-early-p2210177.jpg)
Hardened 4th gear input shaft.
![Name: P2210178.jpg
Views: 209
Size: 190.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25784d1501269295-spring-build-comes-early-p2210178.jpg)

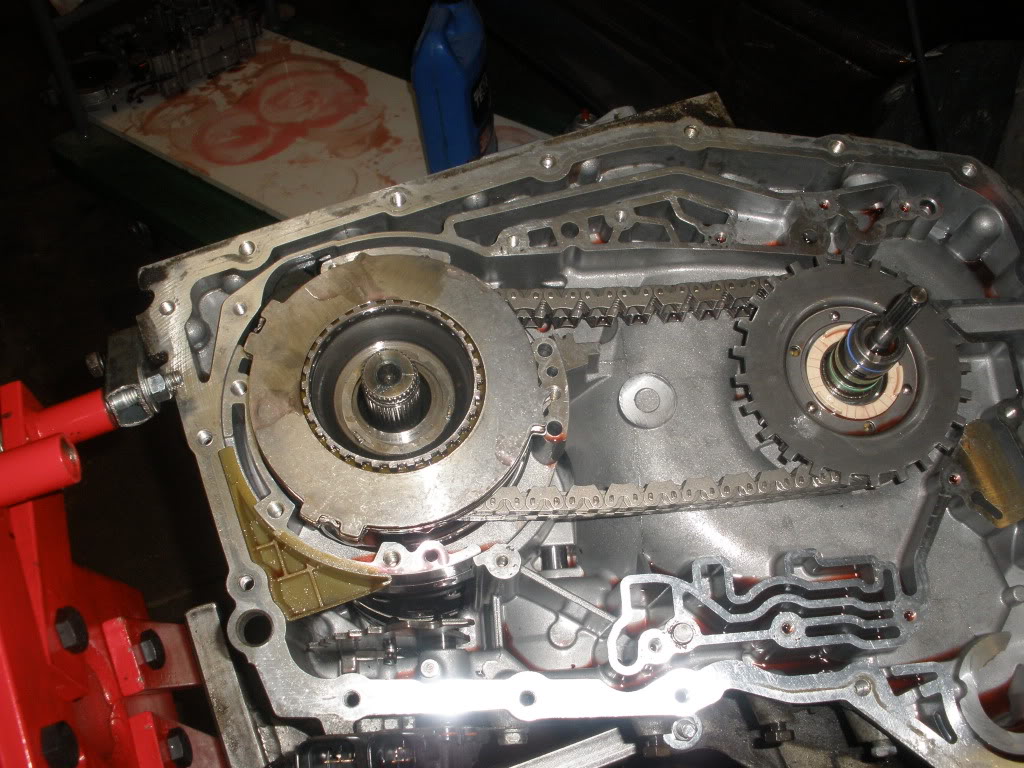

4th gear clutches installed.
![Name: P2210179.jpg
Views: 269
Size: 181.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25785d1501269295-spring-build-comes-early-p2210179.jpg)

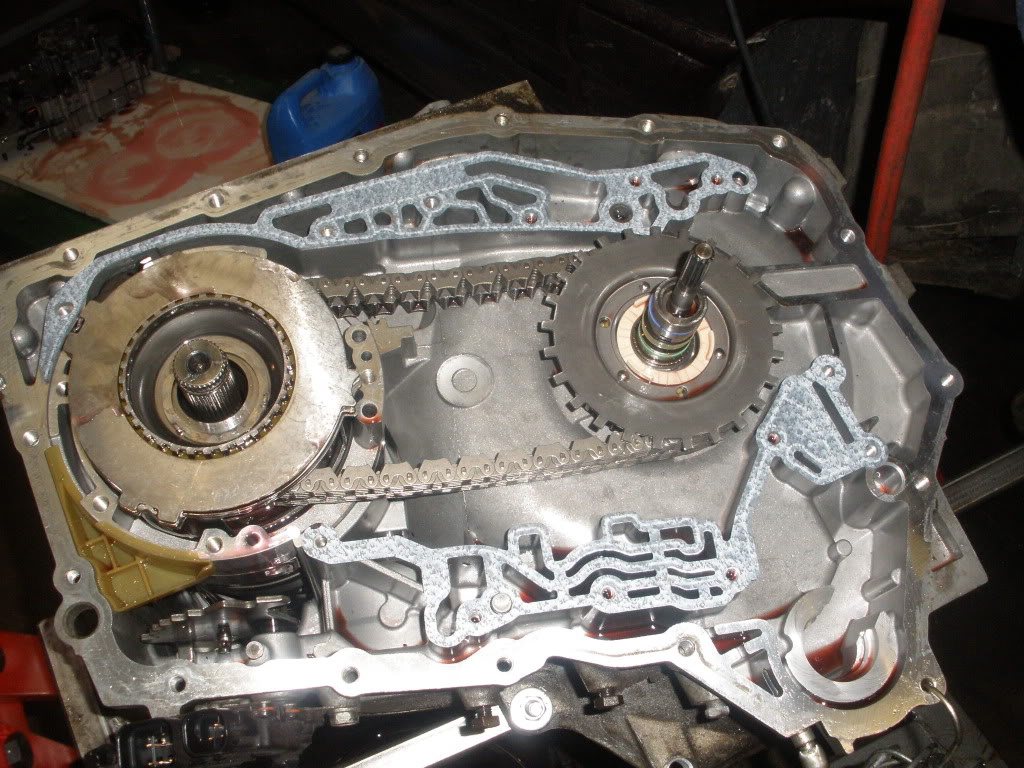

Oil dam installed.
![Name: P2210180.jpg
Views: 226
Size: 196.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25786d1501269295-spring-build-comes-early-p2210180.jpg)
Thrust washers need to be installed on the valve body before installing the valve body.
![Name: P2210182.jpg
Views: 298
Size: 158.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25787d1501269295-spring-build-comes-early-p2210182.jpg)

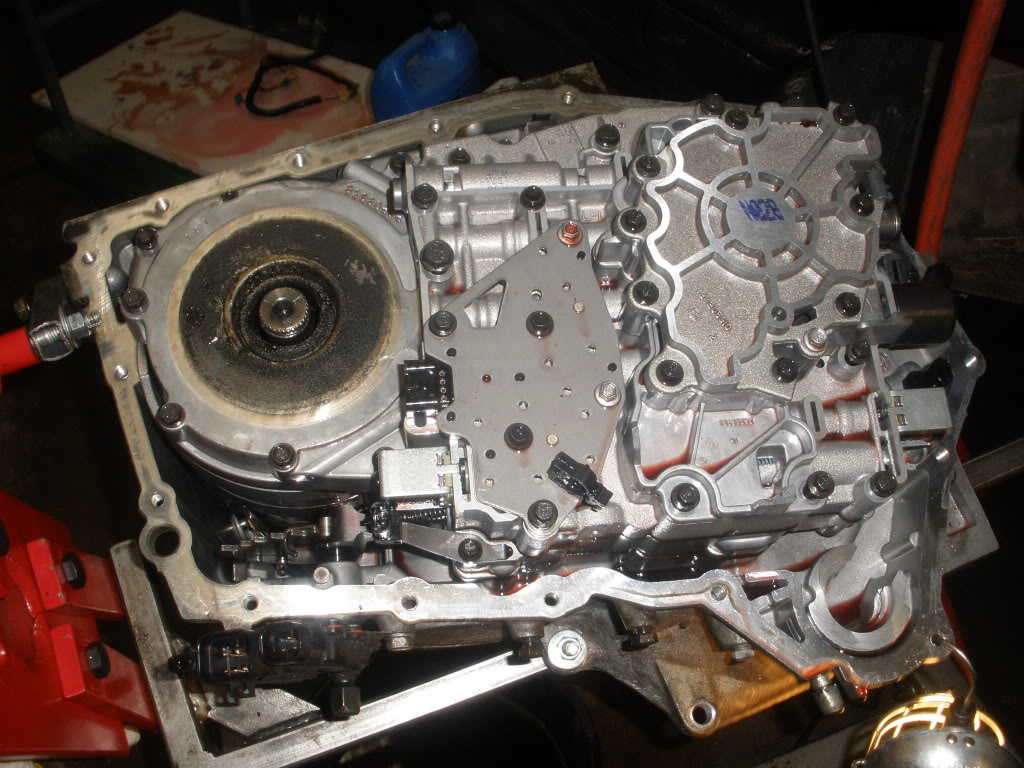

Valve body installed.
![Name: P2210181.jpg
Views: 228
Size: 187.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25788d1501269295-spring-build-comes-early-p2210181.jpg)

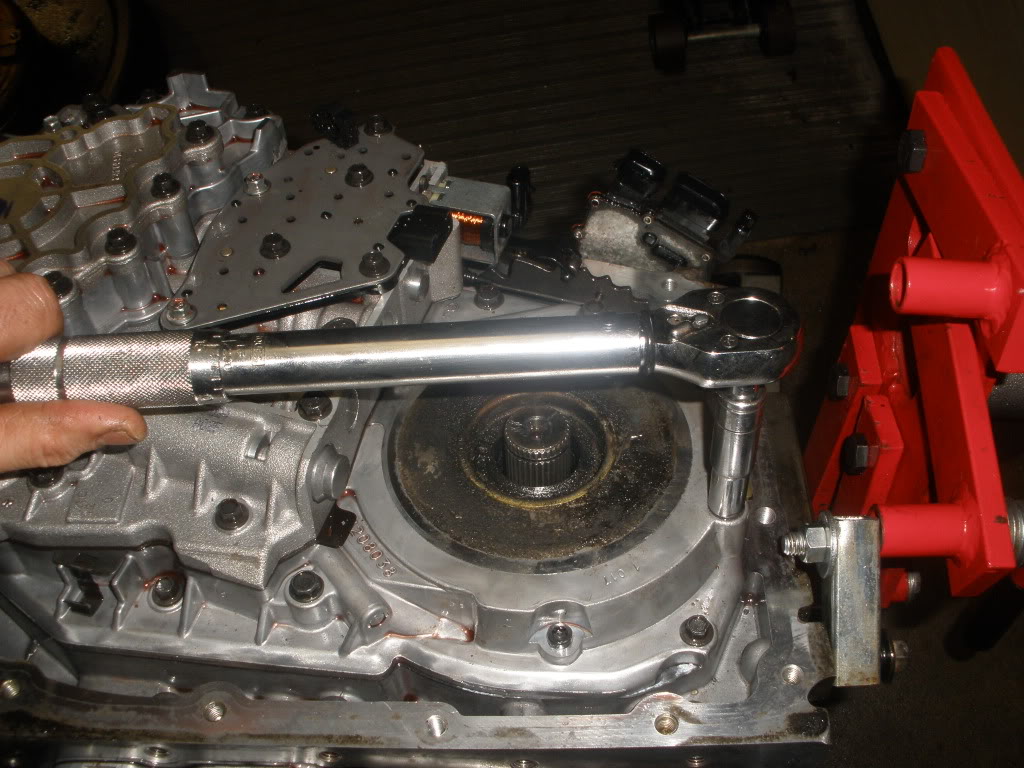

Torquing the valve body down.
![Name: P2210183.jpg
Views: 284
Size: 161.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25789d1501269295-spring-build-comes-early-p2210183.jpg)

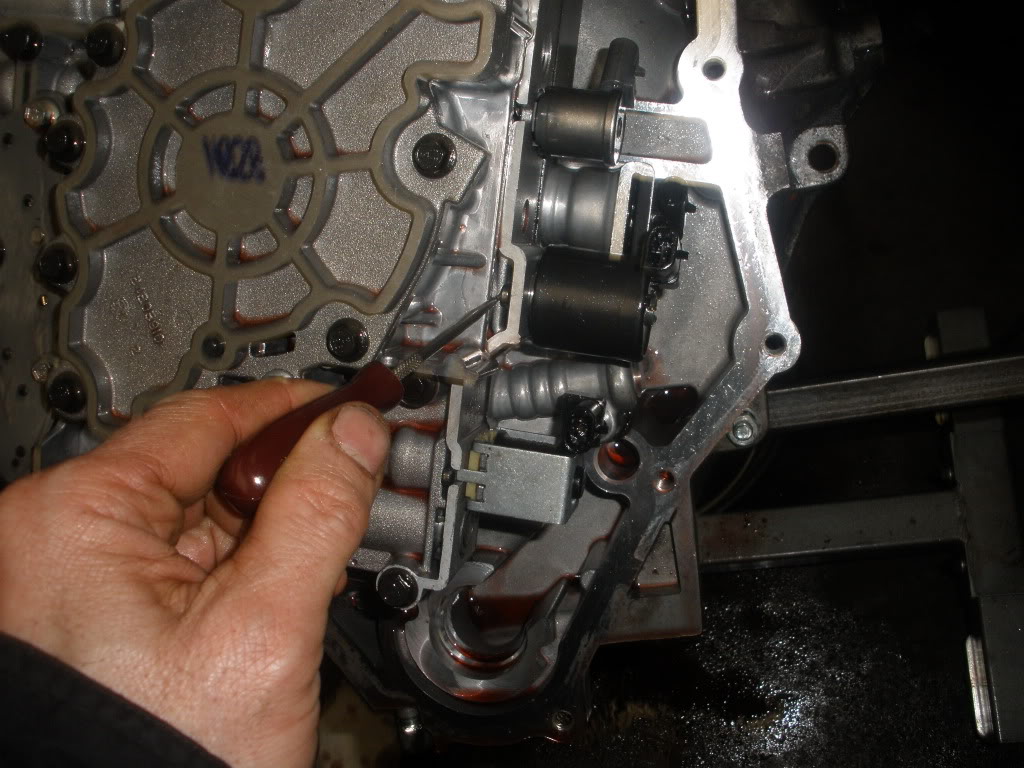

Removing the old pressure control solenoid.
![Name: P2210184.jpg
Views: 231
Size: 156.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25790d1501269295-spring-build-comes-early-p2210184.jpg)

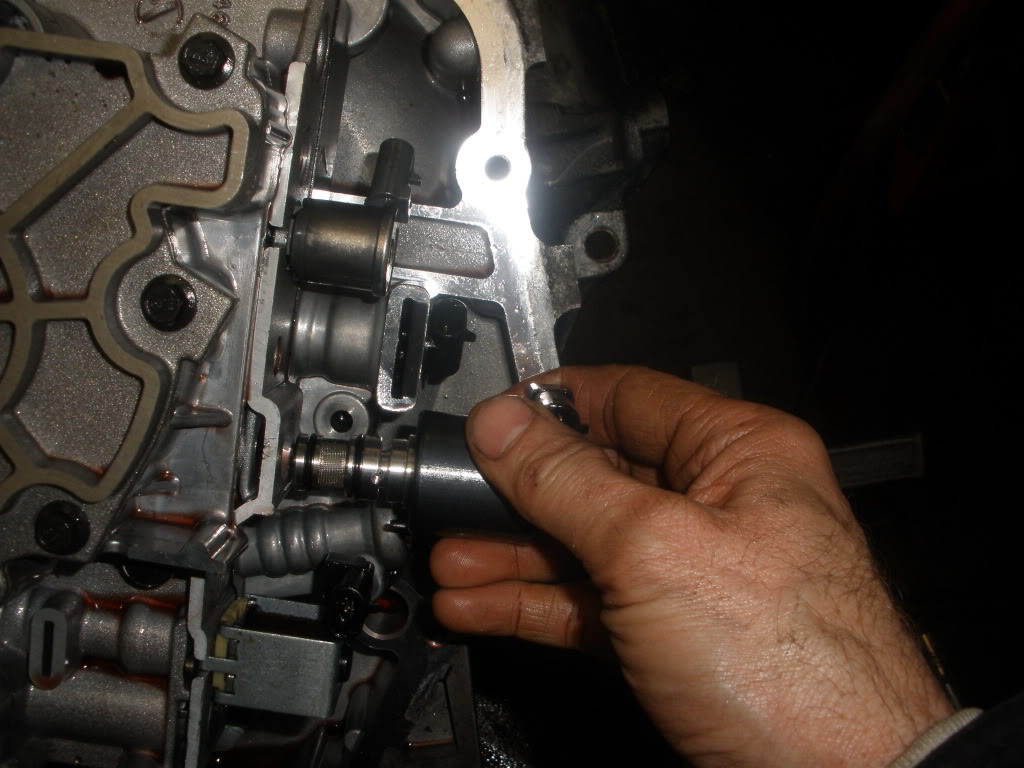

Installing the new pressure control solenoid.
![Name: P2210185.jpg
Views: 276
Size: 130.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25791d1501269295-spring-build-comes-early-p2210185.jpg)
Wiring harness put back in place.
![Name: P2210186.jpg
Views: 282
Size: 161.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25792d1501269295-spring-build-comes-early-p2210186.jpg)

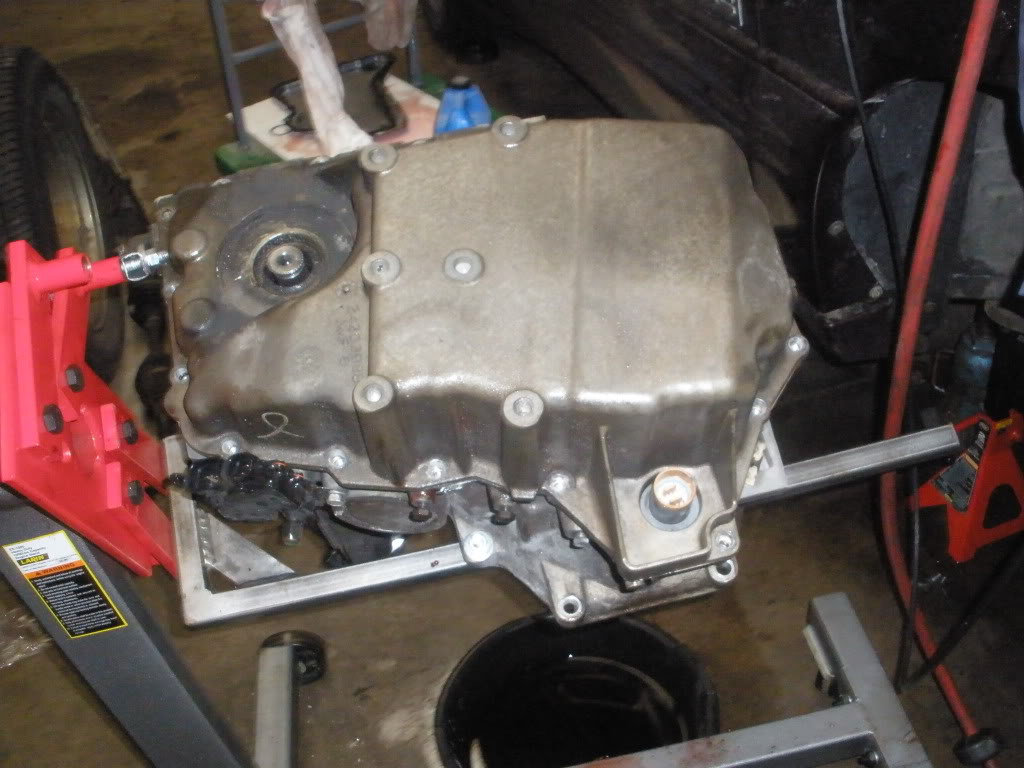

Side cover put back on and then torqued.
I started by removing all the parts to clean them up and verify everything is back together right.
![Name: P2210163.jpg
Views: 238
Size: 125.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25771d1501269295-spring-build-comes-early-p2210163.jpg)
The thrust bearing assembly
![Name: P2210165.jpg
Views: 244
Size: 130.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25772d1501269295-spring-build-comes-early-p2210165.jpg)
Installing the reaction sun gear drum
![Name: P2210164.jpg
Views: 331
Size: 113.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25773d1501269295-spring-build-comes-early-p2210164.jpg)
The reaction sun gear assembly
![Name: P2210166.jpg
Views: 206
Size: 173.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25774d1501269295-spring-build-comes-early-p2210166.jpg)
Input carrier thrust bearing.
![Name: P2210167.jpg
Views: 271
Size: 167.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25775d1501269295-spring-build-comes-early-p2210167.jpg)
Oil dam
![Name: P2210168.jpg
Views: 258
Size: 158.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25776d1501269295-spring-build-comes-early-p2210168.jpg)
Input carrier assembly
![Name: P2210169.jpg
Views: 284
Size: 169.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25777d1501269295-spring-build-comes-early-p2210169.jpg)
The ATSG manual, a big help
![](http://i638.photobucket.com/albums/uu103/danthurs/car/project/P2210170.jpg)
Reverse reaction drum.
![Name: P2210171.jpg
Views: 266
Size: 166.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25778d1501269295-spring-build-comes-early-p2210171.jpg)
Reverse band.
![Name: P2210172.jpg
Views: 283
Size: 181.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25779d1501269295-spring-build-comes-early-p2210172.jpg)
Input housing with all clutches, all held with the home made holder.
![](http://i638.photobucket.com/albums/uu103/danthurs/car/project/P2210173.jpg)
4th clutch piston assembly.
![Name: P2210174.jpg
Views: 324
Size: 152.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25780d1501269295-spring-build-comes-early-p2210174.jpg)
Hardened input shaft.
![Name: P2210175.jpg
Views: 276
Size: 176.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25781d1501269295-spring-build-comes-early-p2210175.jpg)
3.29 gears and transfer chain.
![Name: P2210176.jpg
Views: 239
Size: 213.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25782d1501269295-spring-build-comes-early-p2210176.jpg)
Reluctor wheel and oil pump shaft.
![Name: P2210177.jpg
Views: 335
Size: 210.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25783d1501269295-spring-build-comes-early-p2210177.jpg)
Hardened 4th gear input shaft.
![Name: P2210178.jpg
Views: 209
Size: 190.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25784d1501269295-spring-build-comes-early-p2210178.jpg)
4th gear clutches installed.
![Name: P2210179.jpg
Views: 269
Size: 181.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25785d1501269295-spring-build-comes-early-p2210179.jpg)
Oil dam installed.
![Name: P2210180.jpg
Views: 226
Size: 196.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25786d1501269295-spring-build-comes-early-p2210180.jpg)
Thrust washers need to be installed on the valve body before installing the valve body.
![Name: P2210182.jpg
Views: 298
Size: 158.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25787d1501269295-spring-build-comes-early-p2210182.jpg)
Valve body installed.
![Name: P2210181.jpg
Views: 228
Size: 187.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25788d1501269295-spring-build-comes-early-p2210181.jpg)
Torquing the valve body down.
![Name: P2210183.jpg
Views: 284
Size: 161.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25789d1501269295-spring-build-comes-early-p2210183.jpg)
Removing the old pressure control solenoid.
![Name: P2210184.jpg
Views: 231
Size: 156.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25790d1501269295-spring-build-comes-early-p2210184.jpg)
Installing the new pressure control solenoid.
![Name: P2210185.jpg
Views: 276
Size: 130.9 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25791d1501269295-spring-build-comes-early-p2210185.jpg)
Wiring harness put back in place.
![Name: P2210186.jpg
Views: 282
Size: 161.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25792d1501269295-spring-build-comes-early-p2210186.jpg)
Side cover put back on and then torqued.
![Name: P2210187.jpg
Views: 309
Size: 123.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25793d1501269295-spring-build-comes-early-p2210187.jpg)
#335
Retired Senior Admin
![](/images/badges/Gearhead.png)
Expert Gearhead
Thread Starter
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 29 Likes
on
25 Posts
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_highpos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)

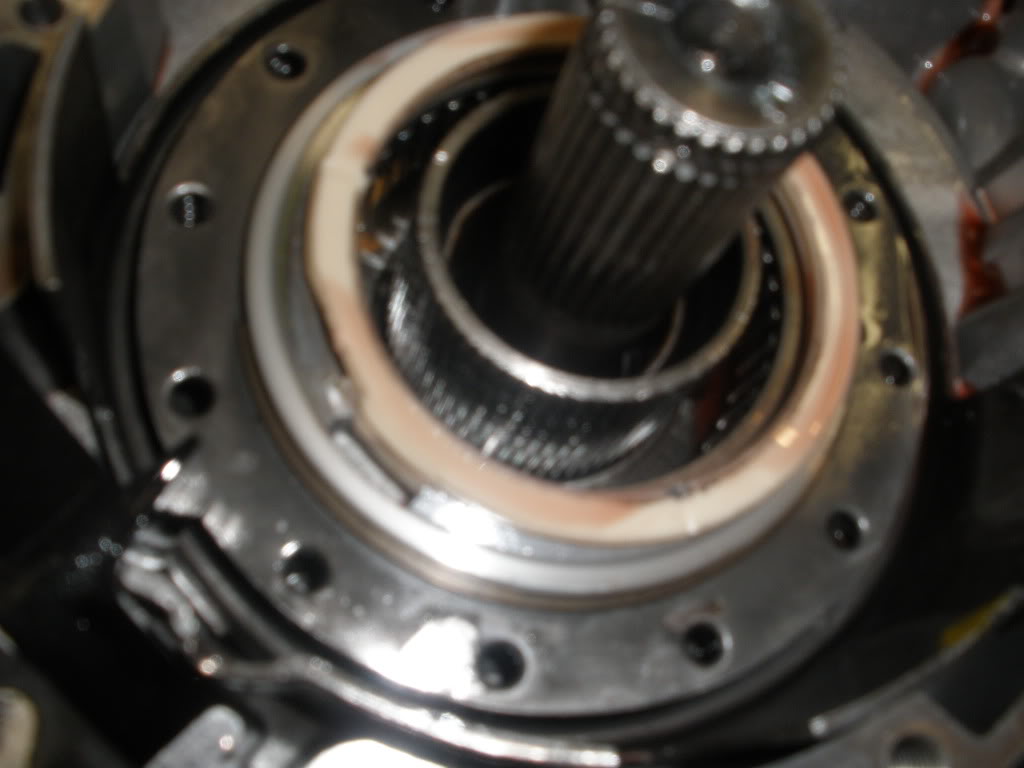

After torquing everything and closing it up, I found I was unable to turn the input shaft by hand, even though I could before closing it. So I opened it back up and found this thrust washer had moved out of place.
![Name: P2210190.jpg
Views: 291
Size: 79.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25763d1501269279-spring-build-comes-early-p2210190.jpg)
I put in a new thrust washer and started torquing the valve body. Again I was unable to turn the input shaft by hand. So after talking to SPG358 is sugested checking the bearing under the 4th gear piston assembly.

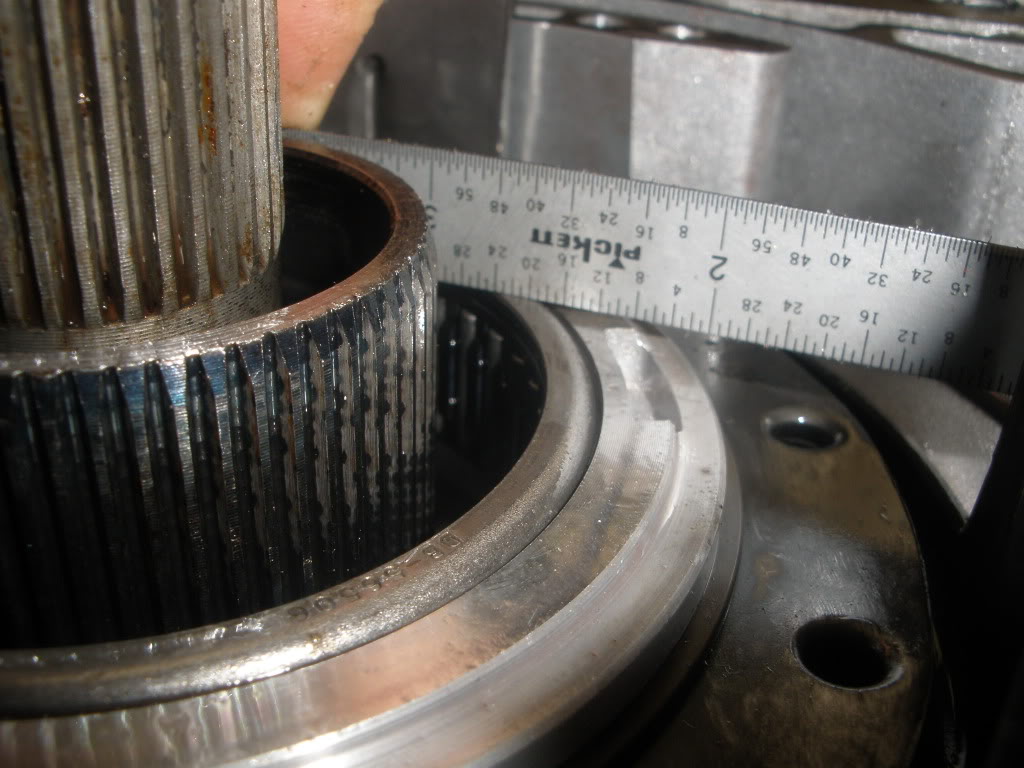

You can see the bearing i not sitting flush.
![Name: P2210193.jpg
Views: 232
Size: 126.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25764d1501269279-spring-build-comes-early-p2210193.jpg)

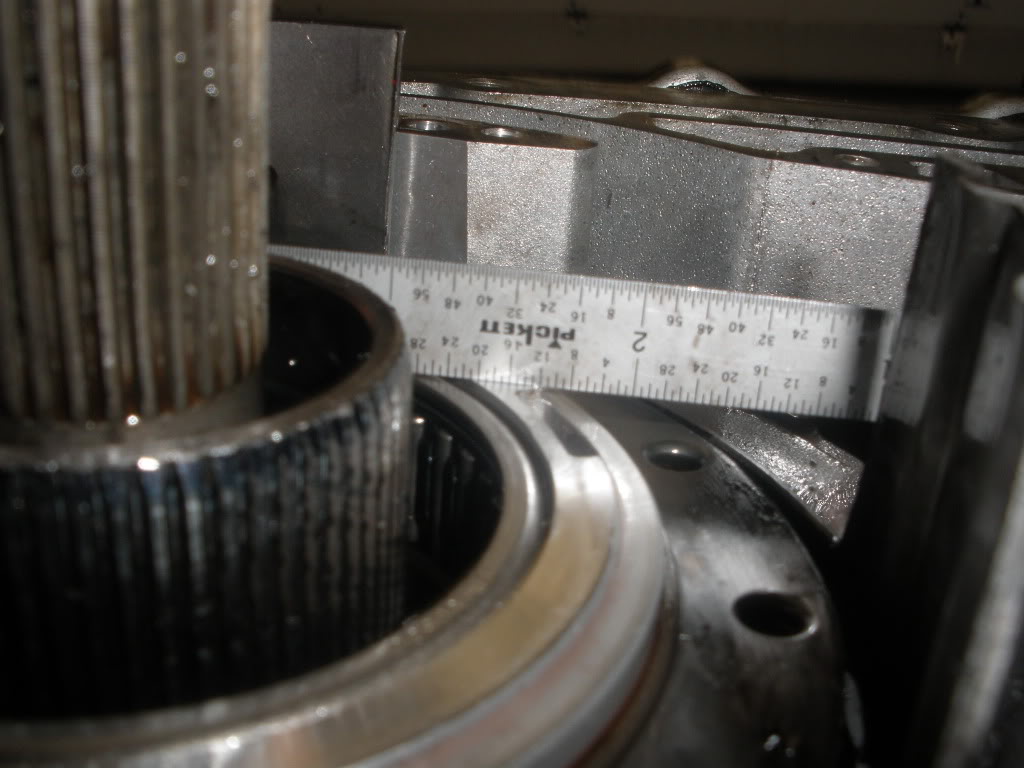

After some persuasion, it'* now flush.
![Name: P2210194.jpg
Views: 266
Size: 109.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25765d1501269279-spring-build-comes-early-p2210194.jpg)

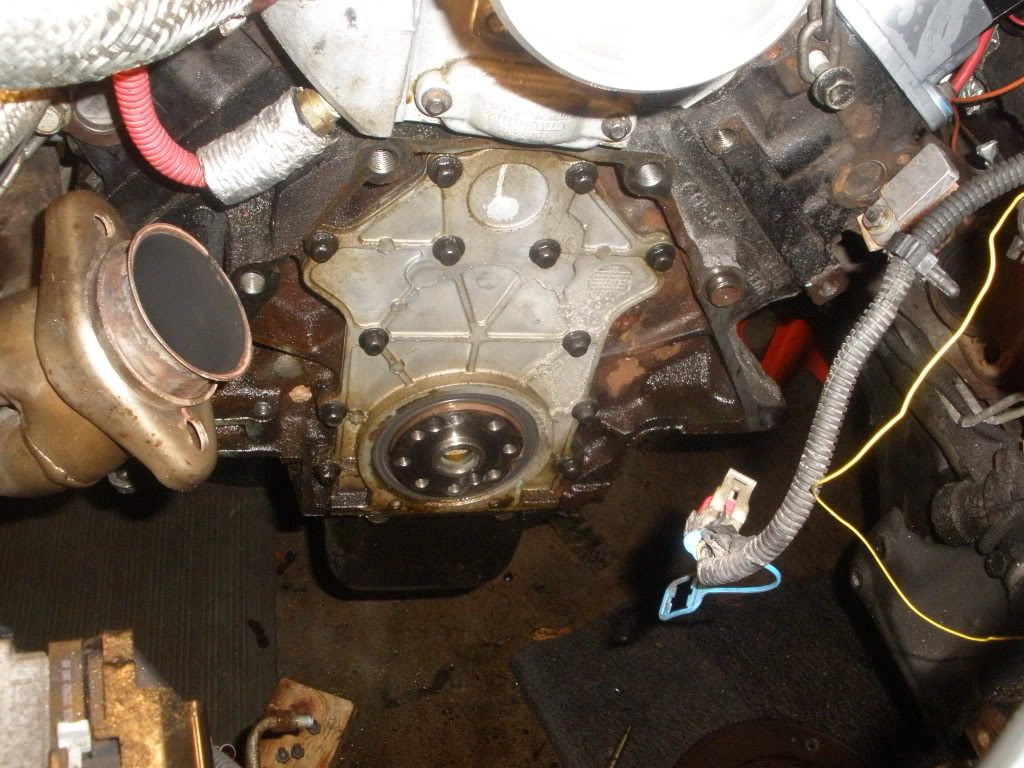

Because I had to open up the transmission so many times, I didn't get nearly as much done as I wanted. But I did get the flex plate changed.
![Name: P2210188.jpg
Views: 271
Size: 188.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25766d1501269279-spring-build-comes-early-p2210188.jpg)

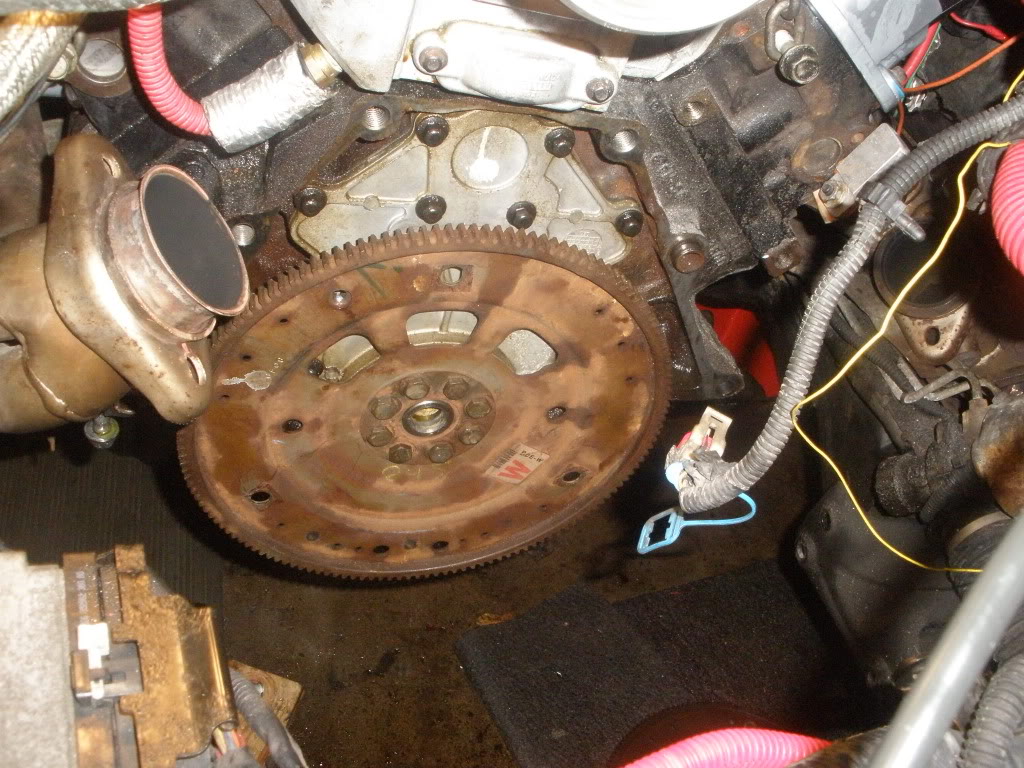

I had to change it because the new torque converter has a different bolt pattern.
![Name: P2210190.jpg
Views: 291
Size: 79.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25763d1501269279-spring-build-comes-early-p2210190.jpg)
I put in a new thrust washer and started torquing the valve body. Again I was unable to turn the input shaft by hand. So after talking to SPG358 is sugested checking the bearing under the 4th gear piston assembly.
You can see the bearing i not sitting flush.
![Name: P2210193.jpg
Views: 232
Size: 126.8 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25764d1501269279-spring-build-comes-early-p2210193.jpg)
After some persuasion, it'* now flush.
![Name: P2210194.jpg
Views: 266
Size: 109.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25765d1501269279-spring-build-comes-early-p2210194.jpg)
Because I had to open up the transmission so many times, I didn't get nearly as much done as I wanted. But I did get the flex plate changed.
![Name: P2210188.jpg
Views: 271
Size: 188.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25766d1501269279-spring-build-comes-early-p2210188.jpg)
I had to change it because the new torque converter has a different bolt pattern.
![Name: P2210189.jpg
Views: 312
Size: 200.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25767d1501269279-spring-build-comes-early-p2210189.jpg)
#337
Retired
![](https://www.gmforum.com/images/ranks/veteran_army.png)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Those plastic thrust bearings, I hate them. Twice now I have found them in the bottom of my oil pan in pieces.
I didn't see you mention it, but I gotta ask, you did realign the flux reverse band prior to installing the 4th clutch using a Roundtoit right?
I didn't see you mention it, but I gotta ask, you did realign the flux reverse band prior to installing the 4th clutch using a Roundtoit right?
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel
2011 Chevrolet Tahoe PPV
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel
2011 Chevrolet Tahoe PPV
#338
Retired Senior Admin
![](/images/badges/Gearhead.png)
Expert Gearhead
Thread Starter
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 29 Likes
on
25 Posts
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_highpos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
What the heck are you talking about?
#339
Retired
![](https://www.gmforum.com/images/ranks/veteran_army.png)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
What? You didn't get the ATSG amendment 433-Id10T update?
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel
2011 Chevrolet Tahoe PPV
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel
2011 Chevrolet Tahoe PPV
