Moved the filter today.
![Name: P2130069.jpg
Views: 17
Size: 187.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25971d1501269566-spring-build-comes-early-p2130069.jpg)
Moved the PCM out of the way.
![Name: P2130070.jpg
Views: 18
Size: 169.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25972d1501269566-spring-build-comes-early-p2130070.jpg)

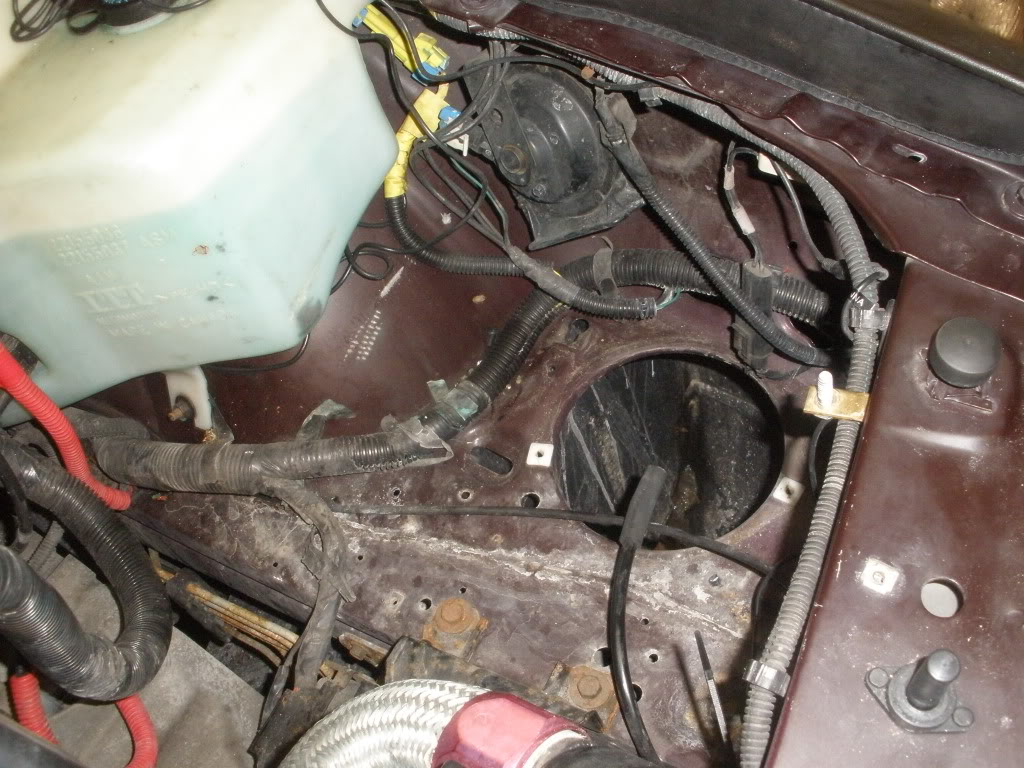

Then pulled the EVAP canister.
![Name: P2130071.jpg
Views: 17
Size: 184.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25973d1501269566-spring-build-comes-early-p2130071.jpg)
![Name: P2130072.jpg
Views: 19
Size: 217.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25974d1501269566-spring-build-comes-early-p2130072.jpg)

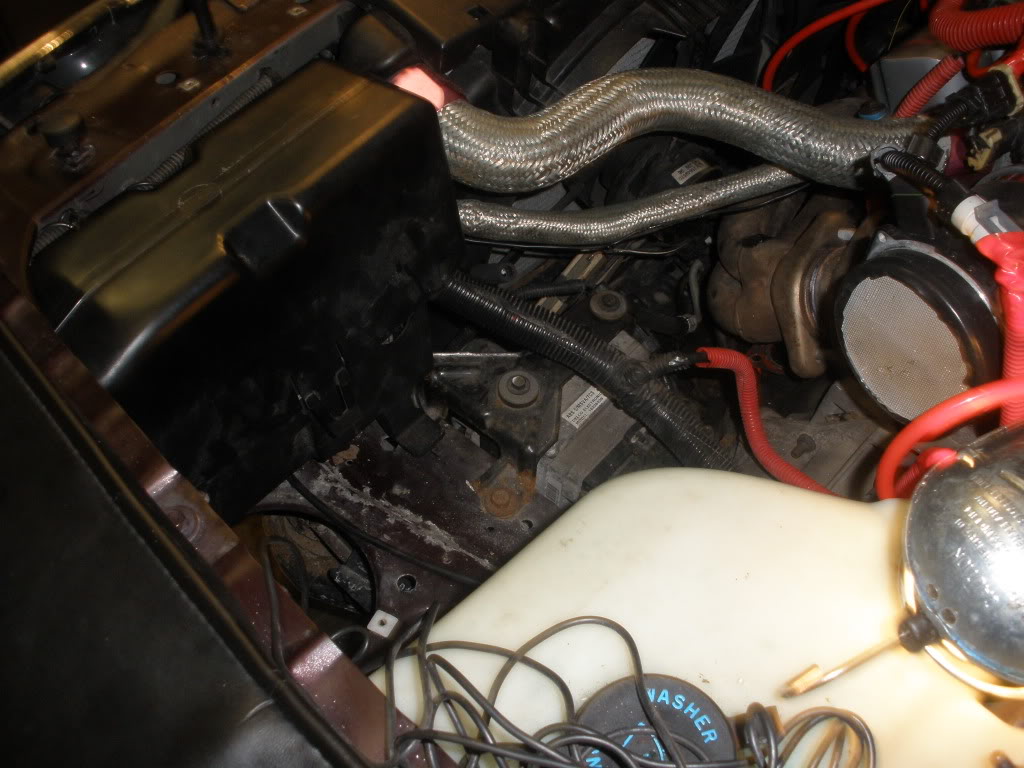

Moved the PCM over here.
![Name: P2130073.jpg
Views: 21
Size: 133.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25975d1501269566-spring-build-comes-early-p2130073.jpg)

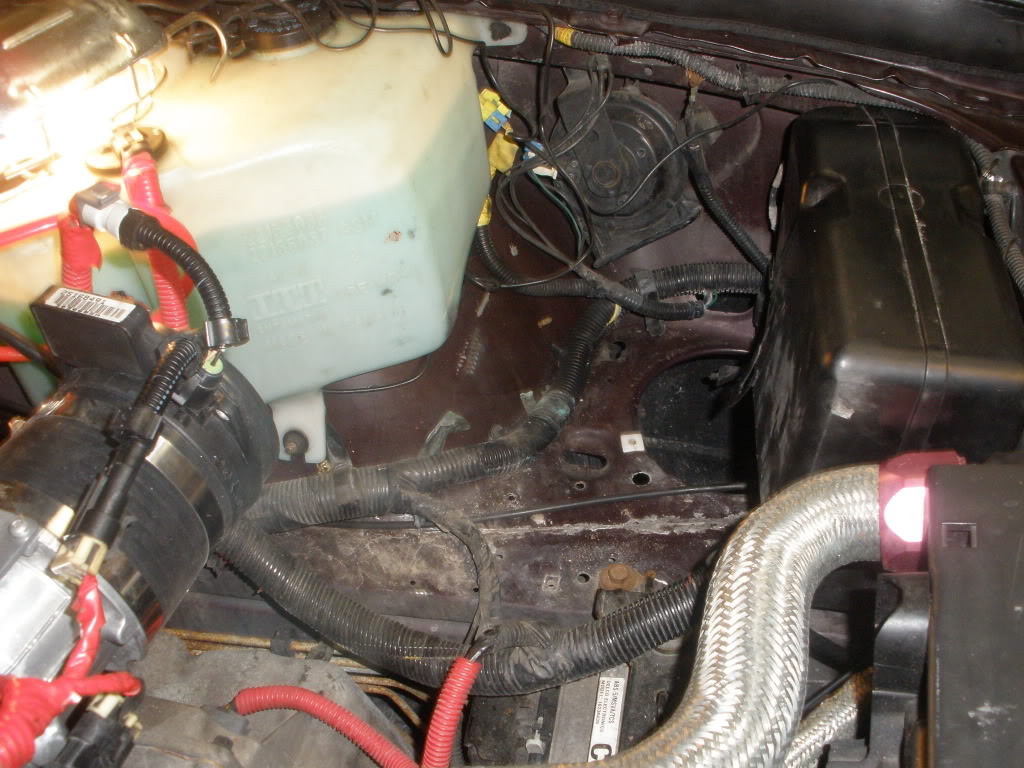

Now I have a nice hole to run the hose threw.
![Name: P2130074.jpg
Views: 21
Size: 170.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25976d1501269566-spring-build-comes-early-p2130074.jpg)

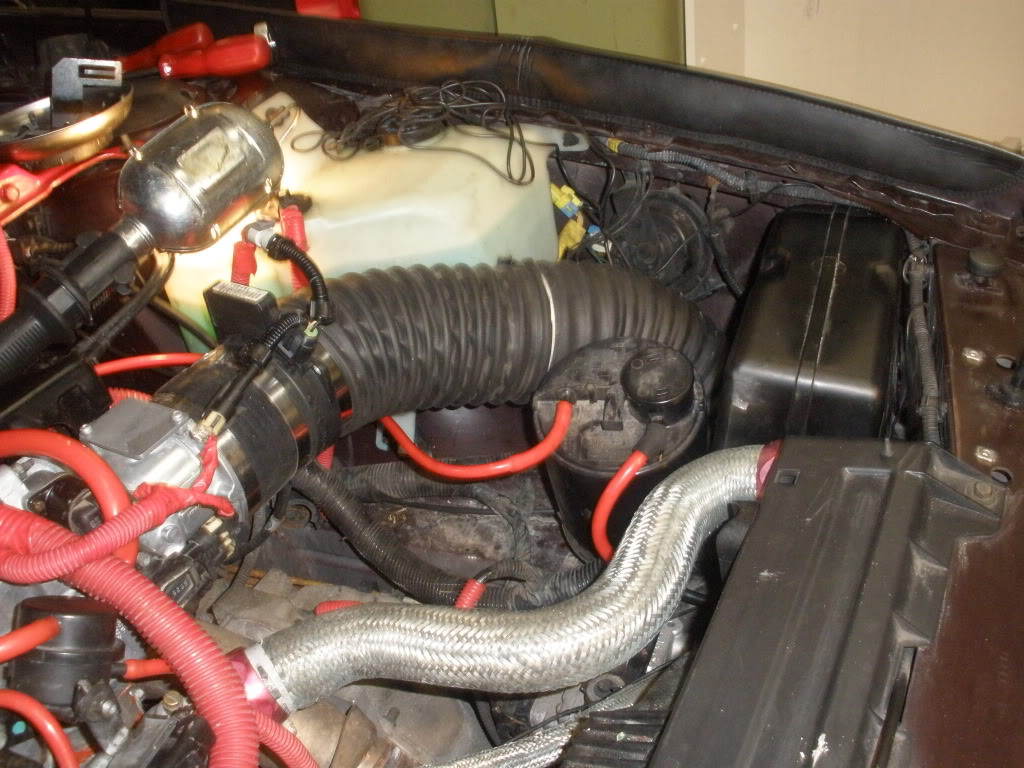

Here we are, all in place.
![Name: P2130075.jpg
Views: 18
Size: 171.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25977d1501269566-spring-build-comes-early-p2130075.jpg)
Keeping this clean is going to be a pain.
![](http://i638.photobucket.com/albums/uu103/danthurs/car/project/P2130077.jpg)
Had to pick up 2 more hose clamps. Had to put the 2 hoses I had together.
![Name: P2130078.jpg
Views: 19
Size: 161.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25978d1501269566-spring-build-comes-early-p2130078.jpg)

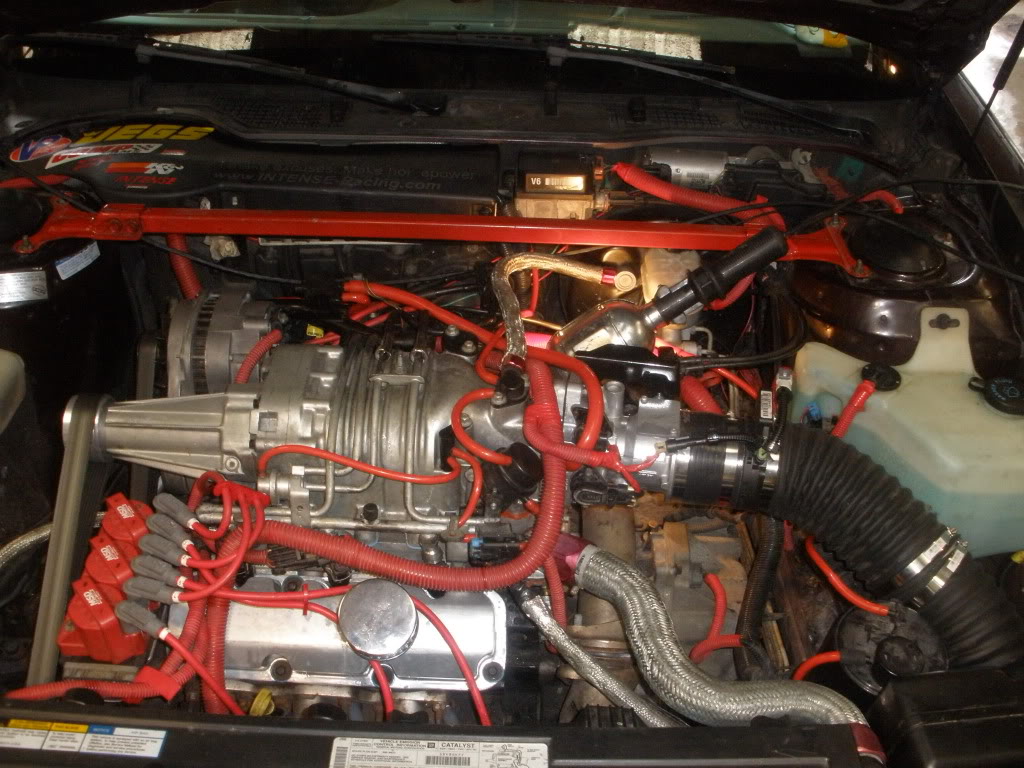

When I get a chance I'll order a new hose so it'* not spliced together.
![Name: P2130079.jpg
Views: 18
Size: 174.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25979d1501269566-spring-build-comes-early-p2130079.jpg)
So I go out for a drive, all is running great. I did a small WOT, right after that I get a SES light, and the trans is running in 3rd gear. By the time I turn in to the driveway the trans is slipping bad. I think I killed my trans. Now I'm pulling that a bit sooner then I thought.
![Name: P2130069.jpg
Views: 17
Size: 187.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25971d1501269566-spring-build-comes-early-p2130069.jpg)
Moved the PCM out of the way.
![Name: P2130070.jpg
Views: 18
Size: 169.7 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25972d1501269566-spring-build-comes-early-p2130070.jpg)
Then pulled the EVAP canister.
![Name: P2130071.jpg
Views: 17
Size: 184.5 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25973d1501269566-spring-build-comes-early-p2130071.jpg)
![Name: P2130072.jpg
Views: 19
Size: 217.0 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25974d1501269566-spring-build-comes-early-p2130072.jpg)
Moved the PCM over here.
![Name: P2130073.jpg
Views: 21
Size: 133.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25975d1501269566-spring-build-comes-early-p2130073.jpg)
Now I have a nice hole to run the hose threw.
![Name: P2130074.jpg
Views: 21
Size: 170.4 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25976d1501269566-spring-build-comes-early-p2130074.jpg)
Here we are, all in place.
![Name: P2130075.jpg
Views: 18
Size: 171.2 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25977d1501269566-spring-build-comes-early-p2130075.jpg)
Keeping this clean is going to be a pain.
![](http://i638.photobucket.com/albums/uu103/danthurs/car/project/P2130077.jpg)
Had to pick up 2 more hose clamps. Had to put the 2 hoses I had together.
![Name: P2130078.jpg
Views: 19
Size: 161.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25978d1501269566-spring-build-comes-early-p2130078.jpg)
When I get a chance I'll order a new hose so it'* not spliced together.
![Name: P2130079.jpg
Views: 18
Size: 174.6 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25979d1501269566-spring-build-comes-early-p2130079.jpg)
So I go out for a drive, all is running great. I did a small WOT, right after that I get a SES light, and the trans is running in 3rd gear. By the time I turn in to the driveway the trans is slipping bad. I think I killed my trans. Now I'm pulling that a bit sooner then I thought.
#257
Retired Senior Admin
![](/images/badges/Gearhead.png)
Expert Gearhead
Thread Starter
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 29 Likes
on
25 Posts
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_highpos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)

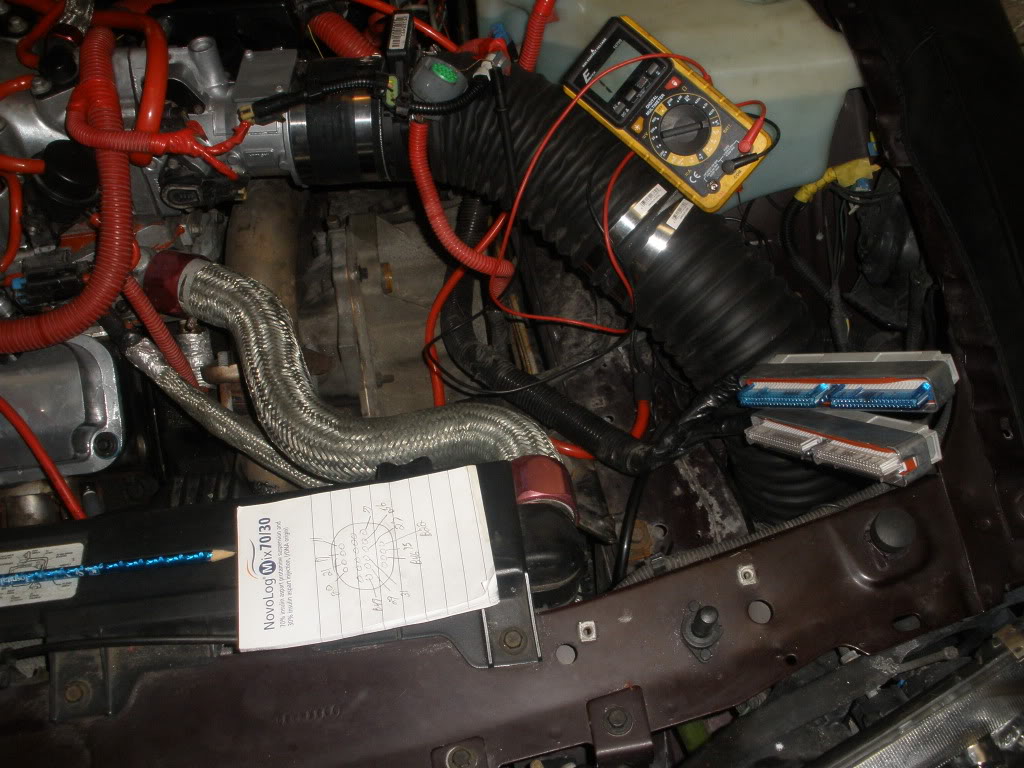

Well, did a little testing. Trans moves fine in reverse, but slips in all forward gears, even if it'* shifted all the way down to 1st. I'm also getting a P1860 code TCC PWM solenoid circuit electrical. Because I had just moved the PCM, I felt there was a chance that a wire had broke, so I tested them all. No broken wires.
![Name: P2130081.jpg
Views: 18
Size: 158.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25968d1501269546-spring-build-comes-early-p2130081.jpg)
Oh well, it was worth a look. Guess I'm pulling the trans a bit sooner then I thought, 2 months sooner actually. Don't really have all the parts on hand, yet. But I have a hardened input shaft lined up, just waiting to finalize that. Bill is shipping a rebuild kit, so I will have all the IO rings and gaskets. I have a new torque converter and flex plate, as well as a new hardened 4th gear input shaft. I believe this is the part that went out. I also have a set of 3.29 gears and 3 sets of transfer chains. Only thing I will need to order is a new set of 4th gear clutches, no big deal there. Should have all parts on hand by next week. So I'm dropping the sub frame and removing the transmission this week. I'll get it mounted on the stand and open it up. Once the parts come in, it all goes back together and put back in the car. Should be back on the road in a week and a half.
Pulled a few things out of the way. Look at all that room.
![Name: P2130081.jpg
Views: 18
Size: 158.3 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25968d1501269546-spring-build-comes-early-p2130081.jpg)
Oh well, it was worth a look. Guess I'm pulling the trans a bit sooner then I thought, 2 months sooner actually. Don't really have all the parts on hand, yet. But I have a hardened input shaft lined up, just waiting to finalize that. Bill is shipping a rebuild kit, so I will have all the IO rings and gaskets. I have a new torque converter and flex plate, as well as a new hardened 4th gear input shaft. I believe this is the part that went out. I also have a set of 3.29 gears and 3 sets of transfer chains. Only thing I will need to order is a new set of 4th gear clutches, no big deal there. Should have all parts on hand by next week. So I'm dropping the sub frame and removing the transmission this week. I'll get it mounted on the stand and open it up. Once the parts come in, it all goes back together and put back in the car. Should be back on the road in a week and a half.
Pulled a few things out of the way. Look at all that room.
![Name: P2130083.jpg
Views: 17
Size: 159.1 KB](https://www.gmforum.com/attachments/general-gm-chat-88/25969d1501269546-spring-build-comes-early-p2130083.jpg)
#258
Retired
![](https://www.gmforum.com/images/ranks/veteran_army.png)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Damn Dan, I though I was bad at breaking things.
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel
2011 Chevrolet Tahoe PPV
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel
2011 Chevrolet Tahoe PPV
#259
Retired Senior Admin
![](/images/badges/Gearhead.png)
Expert Gearhead
Thread Starter
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 29 Likes
on
25 Posts
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_highpos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Ya, kind of a bummer. Oh well, I'll just be doing this a little early. I was able to pick up a hardened input shaft and just ordered the 4th gear clutches. So looks like I have everything. Also helps that I have two extra transmissions here. So I have spare parts a plenty. Kind of interested in seeing what that input shaft looks like.
