Remove Interior Door Trim Panel & Visors
#1
Junior Member
Thread Starter
Join Date: Aug 2005
Location: North of Buffalo, NY *** NEBF '05, '06, '07 *** ***ONBF & NYBF 06; 07*** ***WCBF 06***
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
![singscountry1967 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)

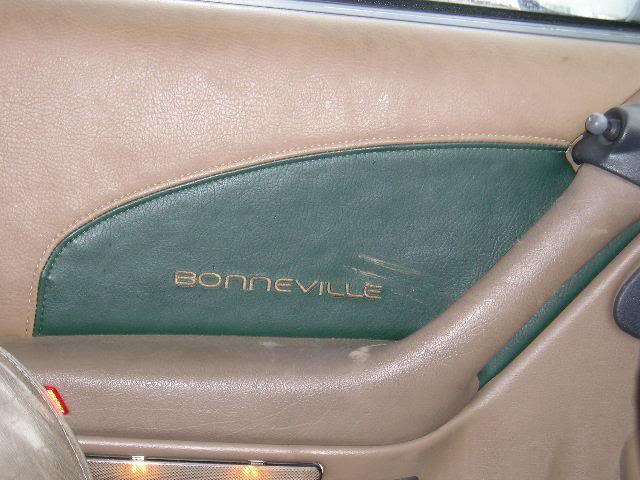

I'm trying to find instructions for removing the interior door trim panels as pictured here:
![Name: misc023.jpg
Views: 234
Size: 50.3 KB](https://www.gmforum.com/attachments/detailing-appearance-109/54177d1501318564-remove-interior-door-trim-panel-visors-misc023.jpg)
I did find somewhat of a write up... http://www.bonnevilleclub.com/forum/...ove+door+panel
I want to remove the custom trim panels and replace the stock ones on a 93 SSEi before the insurace company comes to take it away (because of this incident: http://www.bonnevilleclub.com/forum/...ic.php?t=70338 )

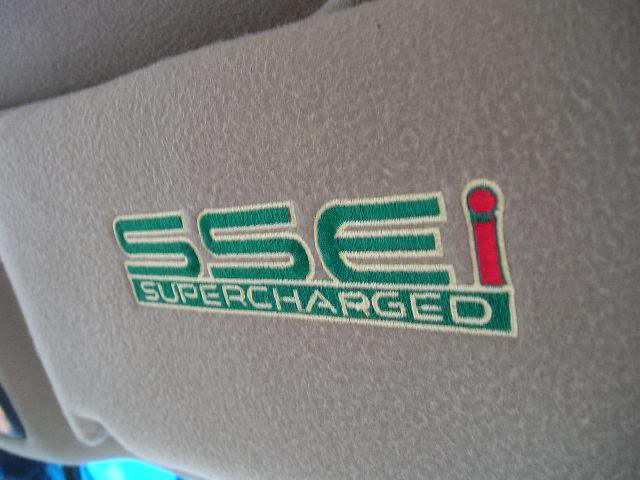

Also want to remove the visors if possible
![Name: misc023.jpg
Views: 234
Size: 50.3 KB](https://www.gmforum.com/attachments/detailing-appearance-109/54177d1501318564-remove-interior-door-trim-panel-visors-misc023.jpg)
I did find somewhat of a write up... http://www.bonnevilleclub.com/forum/...ove+door+panel
I want to remove the custom trim panels and replace the stock ones on a 93 SSEi before the insurace company comes to take it away (because of this incident: http://www.bonnevilleclub.com/forum/...ic.php?t=70338 )
Also want to remove the visors if possible
![Name: misc021.jpg
Views: 269
Size: 42.9 KB](https://www.gmforum.com/attachments/detailing-appearance-109/54178d1501318564-remove-interior-door-trim-panel-visors-misc021.jpg)
#2
Senior Member
True Car Nut
Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Likes: 0
Received 0 Likes
on
0 Posts
![93-SSE is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
for the door panel, there are a few clips at the bottom that I just pulled on to get it off, and if i remember correctly you'll have to take the courtesy light out and there was a screw behind it? But use a screwdriver to pry out the little panel behind the door handle. and pull up on the entire panel, and watch for the wires and disconnect when you can reach em..
thats the best i can come up with on the top of my head, someone else can probably do a better job, or different better method but i hope that helps
thats the best i can come up with on the top of my head, someone else can probably do a better job, or different better method but i hope that helps
#3
Senior Member
Certified Car Nut
Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes
on
0 Posts
![1993 SLE is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
for the visors, there is are 2 screws that are on the sides of the visors, remove thoes and pull down.
on the inner clip of the visor, there is a tab that needs to be unclipped, and pulled down
after that remove the electrical connector and the visor is yours
on the inner clip of the visor, there is a tab that needs to be unclipped, and pulled down
after that remove the electrical connector and the visor is yours
#4
Senior Member
Certified Car Nut
Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes
on
0 Posts
![1993 SLE is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
here this should help
the you will need to remove the sun visor by pulling the clip on the one side
![](https://img.photobucket.com/albums/v515/1993SLE/auto%20dim%20mirror%20install/autodimmirrorinsta011.jpg)
and the screws on the other side
![](https://img.photobucket.com/albums/v515/1993SLE/auto%20dim%20mirror%20install/autodimmirrorinsta012.jpg)
the mirror just pulls down out of the headliner
the you will need to remove the sun visor by pulling the clip on the one side
![](https://img.photobucket.com/albums/v515/1993SLE/auto%20dim%20mirror%20install/autodimmirrorinsta011.jpg)
and the screws on the other side
![](https://img.photobucket.com/albums/v515/1993SLE/auto%20dim%20mirror%20install/autodimmirrorinsta012.jpg)
the mirror just pulls down out of the headliner
![](https://img.photobucket.com/albums/v515/1993SLE/auto%20dim%20mirror%20install/autodimmirrorinsta013.jpg)
#5
Senior Member
Certified Car Nut
Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes
on
0 Posts
![1993 SLE is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
here are the front and read door removals
front
http://www.bonnevilleclub.com/forum/...e=article&k=40
does this look familiar?????
![](https://img.photobucket.com/albums/v155/randman1/1993SSEi/DSC01314_edit.jpg)
rear
http://www.bonnevilleclub.com/forum/kb.php?mode=article&k=41[/img]
front
http://www.bonnevilleclub.com/forum/...e=article&k=40
does this look familiar?????
![](https://img.photobucket.com/albums/v155/randman1/1993SSEi/DSC01314_edit.jpg)
rear
http://www.bonnevilleclub.com/forum/kb.php?mode=article&k=41[/img]
#6
Junior Member
Thread Starter
Join Date: Aug 2005
Location: North of Buffalo, NY *** NEBF '05, '06, '07 *** ***ONBF & NYBF 06; 07*** ***WCBF 06***
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
![singscountry1967 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Thank you! Now... I did search and read that last night, but I thought it was directions to remove the entire door panel... I'm looking to take off just the trim from the armrest upwards of the door panel. Nick put these on at Boosty'* when he bought the car... I thought he would have remembered...
![Roll Eyes](https://www.gmforum.com/gm/images/smilies/rolleyes.gif)
