audio system complete 56k red alert

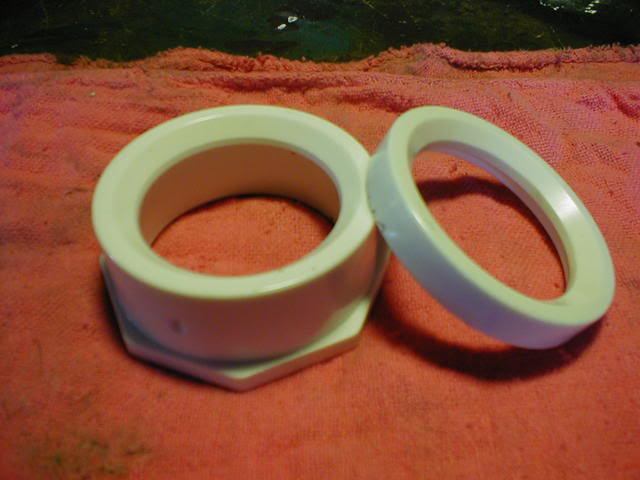

Thanks Guys! This site made my install fairly easy. The only problem was mounting the tweeter. The tweeter mount was to small to fit in the factory cut out so I had to make an adapter ring. I finally found something that I could use at home depot. It'* a pvc flush flange. .49 cents x2 well spent. The ring fit perfectly in the factory hole and let me mount my tweets. In the front I installed infinity 50.5cs 5 1/4 components and in the rear i installed infinity 6x9'* 9602i'*. my head unit is an alpine cda 9815 that I wired to the spot under the maxifuse. I was planning on wiring directly to the battery but my battery has no top terminals. I went ahead and wired for my amp that I do not have, but if I'm drilling in the firewall better take care of it now while I'm motivated!! Looks like I'll have to add a battery to my bonnie want list. Well heres the pics

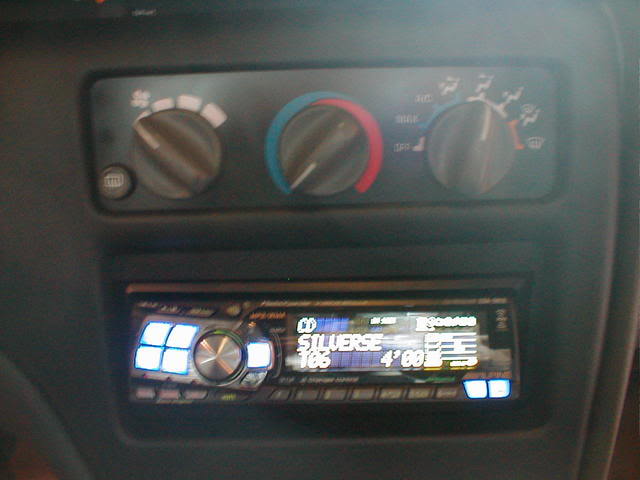

My HU

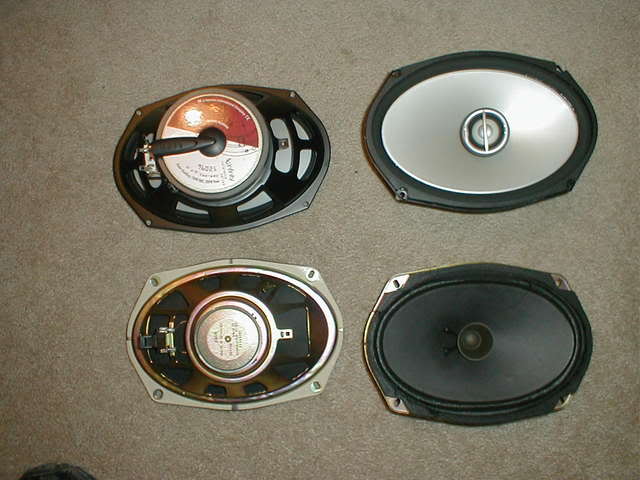

My 6x9'* next to the GM garbage 6x9'*

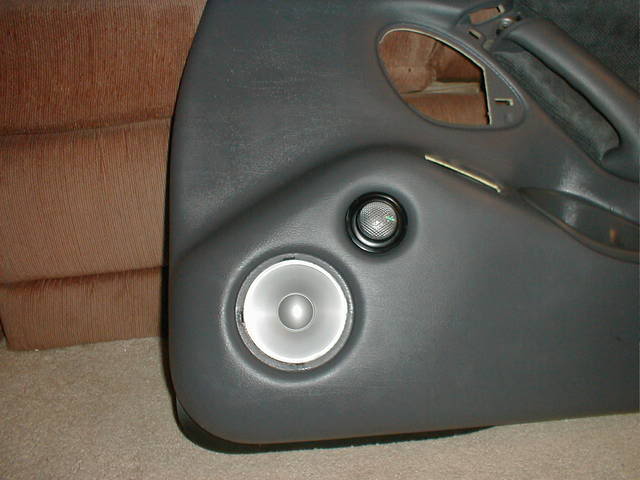

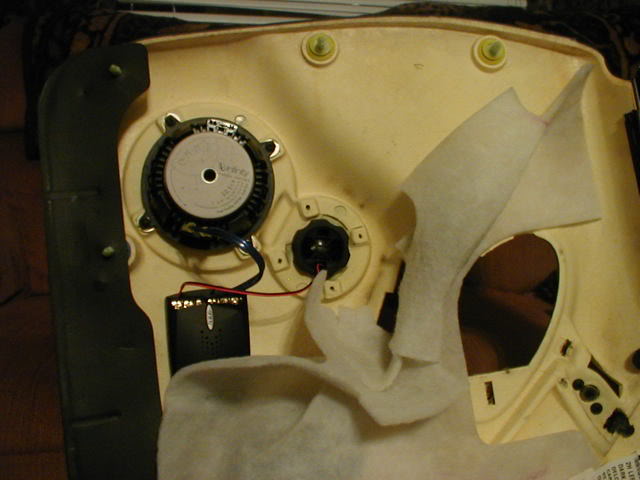

Front and back view of my components installed in door

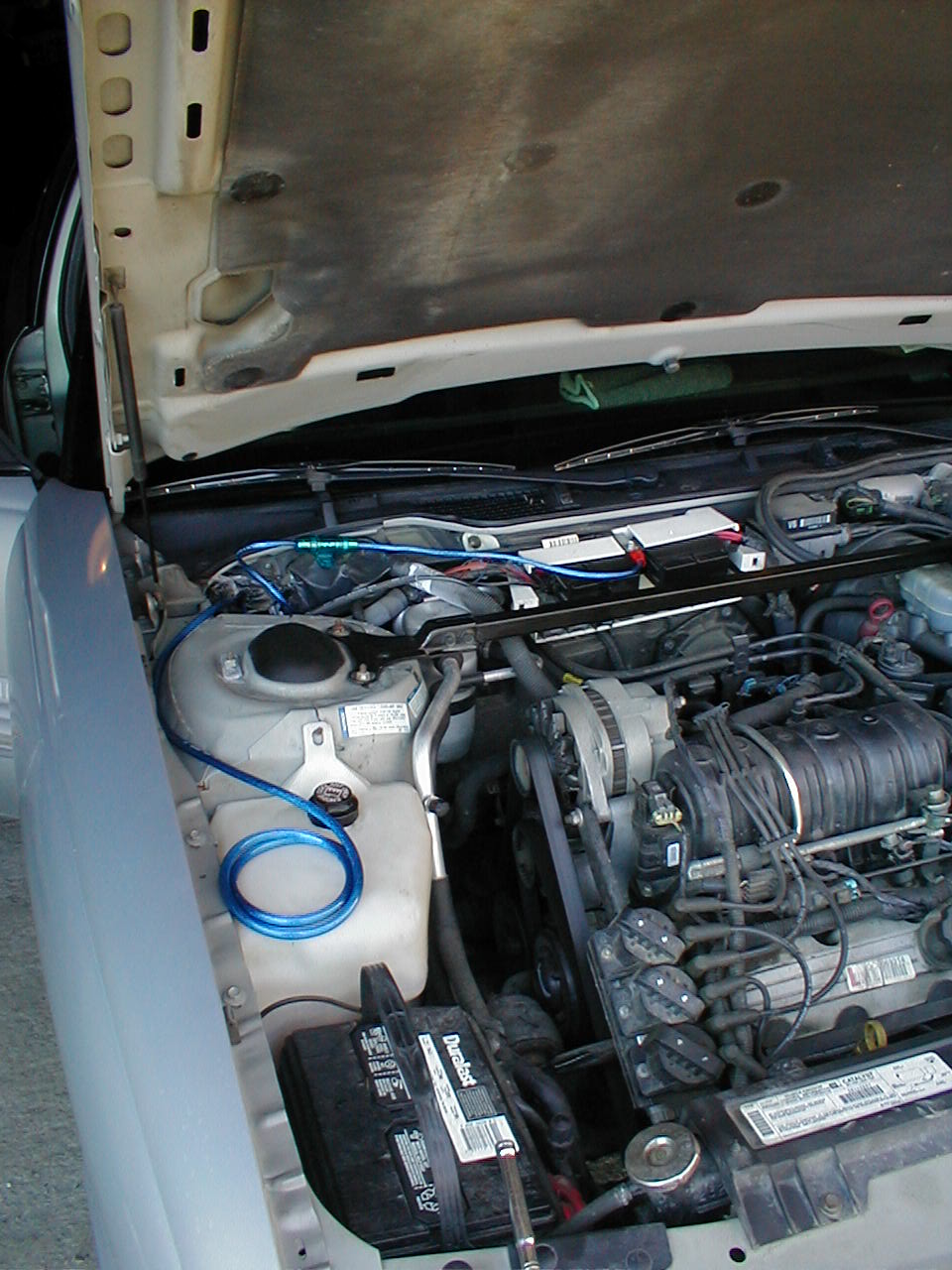

wiring in engine bay, look at that blue 4gage coiled up snake waiting for action!
A little milling and dremel action

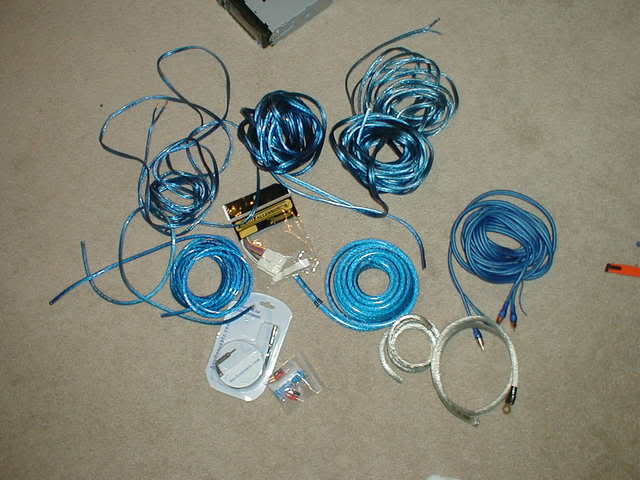

overkill in wires I ran all new wires to all 4 speakers
Future bonneviller
This pic is a view into the door through the white light slot. Whoever put the panel on squished the trunk release black wire with the bolt. I thought it was grounded there at first until I saw where the wires went. I'm surprised the trunk release worked. Oh well I took care of it with a lil electrical tape
My HU
My 6x9'* next to the GM garbage 6x9'*
Front and back view of my components installed in door
wiring in engine bay, look at that blue 4gage coiled up snake waiting for action!
A little milling and dremel action
overkill in wires I ran all new wires to all 4 speakers
Future bonneviller
This pic is a view into the door through the white light slot. Whoever put the panel on squished the trunk release black wire with the bolt. I thought it was grounded there at first until I saw where the wires went. I'm surprised the trunk release worked. Oh well I took care of it with a lil electrical tape
#3
Senior Member
True Car Nut
Join Date: May 2003
Location: Grand Rapids, Mi
Posts: 3,244
Likes: 0
Received 0 Likes
on
0 Posts
howd u mount ur tweeter to the front door. i had to use the stock plate as a holder and then i super glued them to the holder so then they look stock cuz their behind the stock grill.
#5
Senior Member
Posts like a 4 Banger
Thread Starter
Join Date: Mar 2005
Location: Central NY
Posts: 148
Likes: 0
Received 0 Likes
on
0 Posts
L27Buick Posted: Thu Apr 14, 2005 6:36 am Post subject:
--------------------------------------------------------------------------------
howd u mount ur tweeter to the front door. i had to use the stock plate as a holder and then i super glued them to the holder so then they look stock cuz their behind the stock grill.
--------------------------------------------------------------------------------
howd u mount ur tweeter to the front door. i had to use the stock plate as a holder and then i super glued them to the holder so then they look stock cuz their behind the stock grill.
The Outside diameter of the flange is I think around 2.3" which fits perfectly in the Stock tweeter spot. The OD of my aftermarket tweeter is just under 2 inches.
I work in a machine shop and used a cnc to cut off all the extra I didnt need. You could use a bader (sander) the pvc pipe sands better then I thought. I also had to dremel the Inside diameter a touch to get my tweeter flush mount cup to fit inside of the home depot flange. The flange is tapered inside so I dremeled it until the tweeter mount fit flush in the flange. The tweeter flush mount is threaded on the back side and has a big nut you just twist on from the inside to secure the whole thing. This flange probably would work with many other tweeters that are two small. I painted the flange black to match the tweeter flush mount and bammo.
#6
Senior Member
Posts like a Supercharger
Join Date: Dec 2003
Location: Menomonee Falls, WI
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
i like that install man, did those new 6X9s fit just fine in the stock rear deck?
very sweet.....good thing you found that wire,
nicky
very sweet.....good thing you found that wire,
nicky
#7
Senior Member
Posts like a Camaro
Join Date: Feb 2003
Location: Indianapolis, IN / West Lafayette
Posts: 1,004
Likes: 0
Received 0 Likes
on
0 Posts
yah i just cut the tweeter plate up, popped in the new tweeters, and then screwed them to the plate with the twist ring that goes around it. i like the look of the stock grilles plus nobody expects the sound to be that good from a speaker that looks stock. i just need to get an amp for em tho cuz its not loud enough for me.
