Leaking coolant - Need help
#1
Senior Member
Posts like a Supercharger
Thread Starter
Join Date: Feb 2007
Location: Trenton Ontario
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
![Jarvisx2000 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I noticed today my car seems to be leaking coolant at the back of the motor and is pooling up where the injectors are. Is this common? When i replace the gasket is there any other gaskets I should do just for the sake of doing while I have it apart?
#4
Senior Member
Posts like a Supercharger
Thread Starter
Join Date: Feb 2007
Location: Trenton Ontario
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
![Jarvisx2000 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I got the aluminum LIM and I almost have everything back together but I cant figure out 2 things -

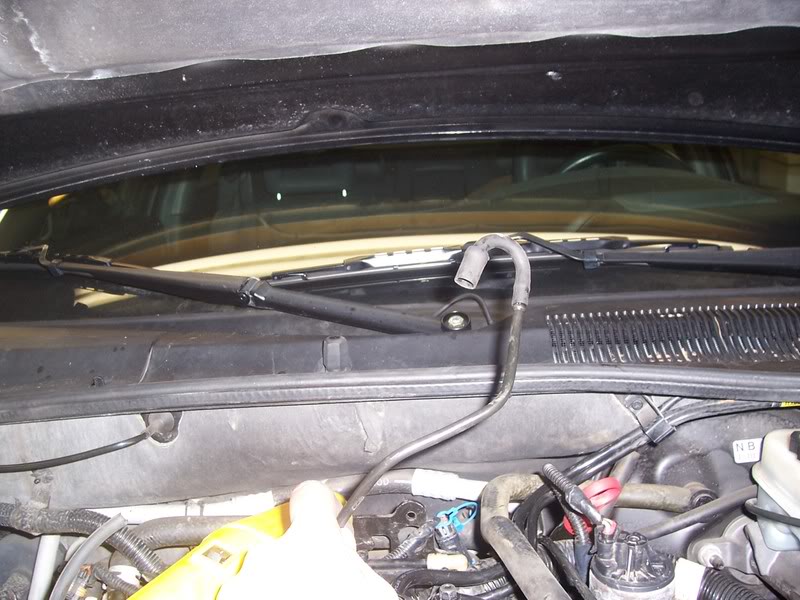

Where this goes-
![Name: 000_0887.jpg
Views: 58
Size: 90.0 KB](https://www.gmforum.com/attachments/2000-2005-90/37168d1501288596-leaking-coolant-need-help-000_0887.jpg)

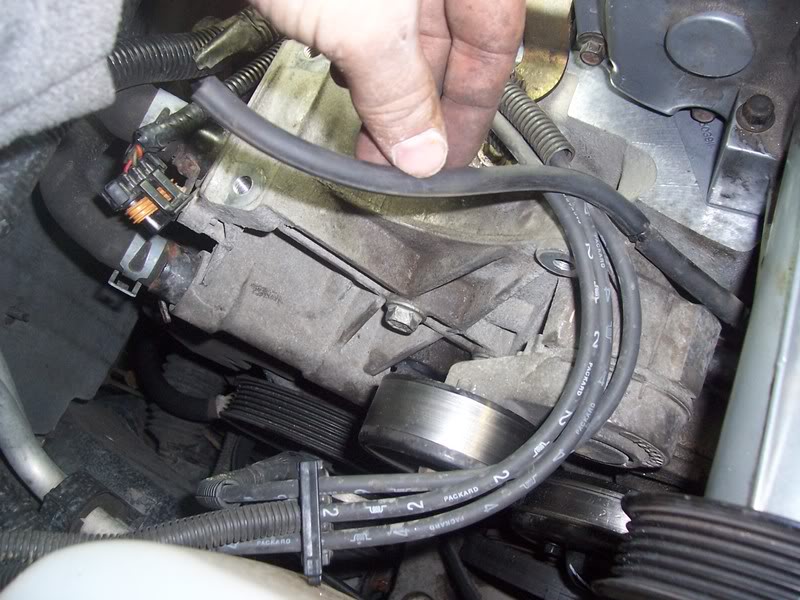

And where this vaccuum hose goes, the one that T'* off under the snout
Where this goes-
![Name: 000_0887.jpg
Views: 58
Size: 90.0 KB](https://www.gmforum.com/attachments/2000-2005-90/37168d1501288596-leaking-coolant-need-help-000_0887.jpg)
And where this vaccuum hose goes, the one that T'* off under the snout
![Name: 000_0888.jpg
Views: 85
Size: 95.3 KB](https://www.gmforum.com/attachments/2000-2005-90/37169d1501288596-leaking-coolant-need-help-000_0888.jpg)
#6
![Default](https://www.gmforum.com/images/icons/icon1.gif)
This picture should help for the first one.

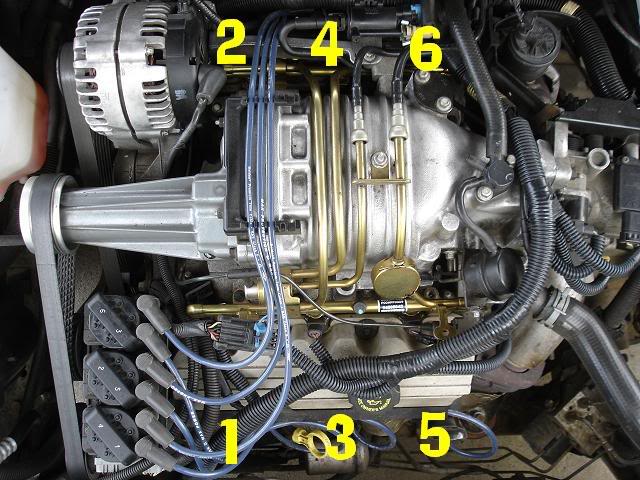

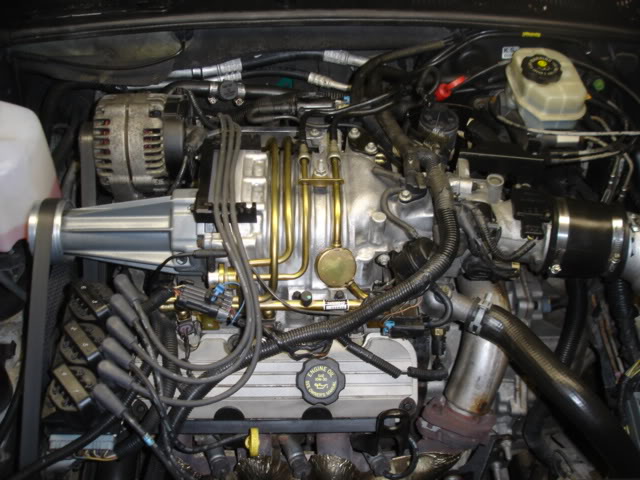

Top center near the firewall - it looks like you are missing a piece in your picture (or your hand is blocking it) and that is why you can't find where to connect that vaccum line.
![Name: DSC09740.jpg
Views: 69
Size: 68.0 KB](https://www.gmforum.com/attachments/2000-2005-90/37166d1501288596-leaking-coolant-need-help-dsc09740.jpg)
The one that T'* off at the LIM continues on to the back of the engine and plugs onto a hidden location on the underside of the MAP sensor. Your current vaccum line is not long enough.
(directly to the left of the UPC label in the picture below)
Top center near the firewall - it looks like you are missing a piece in your picture (or your hand is blocking it) and that is why you can't find where to connect that vaccum line.
![Name: DSC09740.jpg
Views: 69
Size: 68.0 KB](https://www.gmforum.com/attachments/2000-2005-90/37166d1501288596-leaking-coolant-need-help-dsc09740.jpg)
The one that T'* off at the LIM continues on to the back of the engine and plugs onto a hidden location on the underside of the MAP sensor. Your current vaccum line is not long enough.
(directly to the left of the UPC label in the picture below)

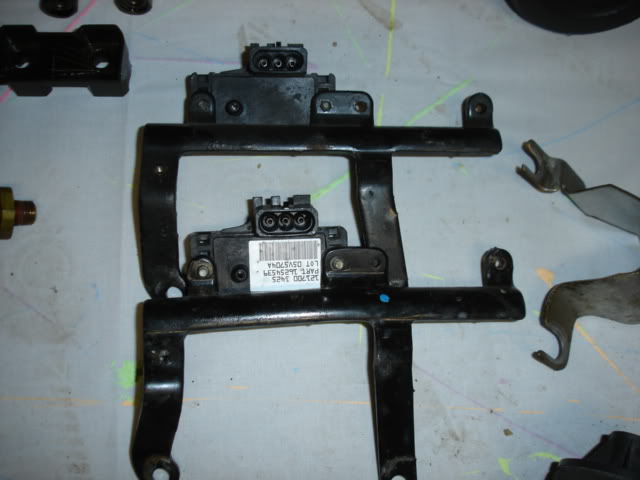

![Name: DSC09692.jpg
Views: 47
Size: 36.6 KB](https://www.gmforum.com/attachments/2000-2005-90/37167d1501288596-leaking-coolant-need-help-dsc09692.jpg)
#7
Senior Member
Posts like a Supercharger
Thread Starter
Join Date: Feb 2007
Location: Trenton Ontario
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
![Jarvisx2000 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)

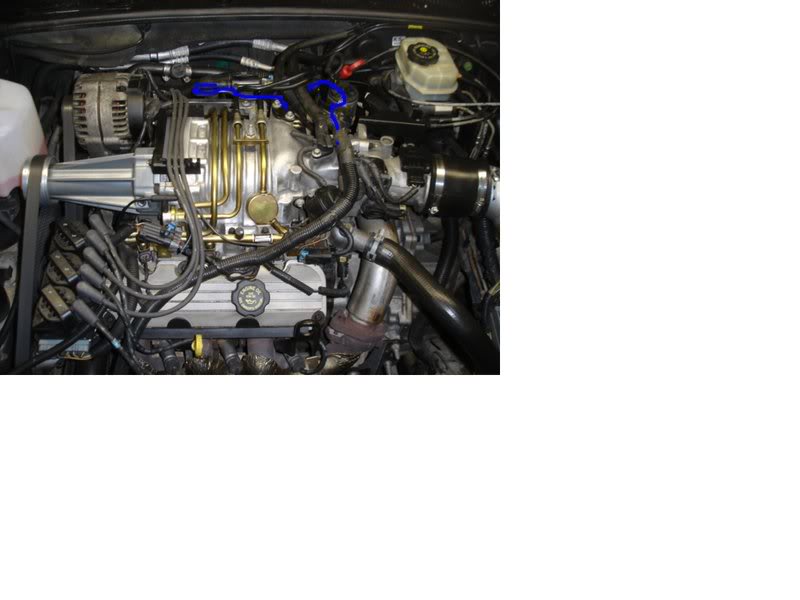

Ok I have the vacuum hooked up to the MAP now. The one im holding in the first picture, The one end is there (connected to the PCV, I believe that'* what it is) but I don't know where the other end goes. It looks like on your picture it runs up beside the TB. What is it going to there?
![Name: hfhjhfjhhgghhghg.jpg
Views: 62
Size: 45.0 KB](https://www.gmforum.com/attachments/2000-2005-90/37165d1501288596-leaking-coolant-need-help-hfhjhfjhhgghhghg.jpg)
#9
Senior Member
Posts like a Supercharger
Thread Starter
Join Date: Feb 2007
Location: Trenton Ontario
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
![Jarvisx2000 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I'm not sure what;* going on. I cannot find anything to attach that to. It just makes no sense at all to me. Any chance anyone has a picture or something? Or do you know what it is called so that I can google it? Any help would be greatly appreciated.
#10
Senior Member
Posts like a Supercharger
Thread Starter
Join Date: Feb 2007
Location: Trenton Ontario
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
![Jarvisx2000 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Well thanks for the help and pics haro, after looking at the pic 100 times I finally realized that the line comes to the front of the TB. Ended up being successful with no leaks.
