Front Door Panel Removal
#1
Member
Posts like a V-Tak
Thread Starter
Join Date: Oct 2008
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
![allenj3 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Arrow](/gm/images/icons/icon2.gif)
I'm looking to remove my front door panels on my 2003 Bonneville SLE. I remember seeing a forum with great instructions on how to do it, but I cannot seem to find it (I had it on my favorites but had to reformat). If someone could possibly post the instructions or a link to that forum it would be greatly appreciated.
#2
Retired Senior Admin
![](/images/badges/Gearhead.png)
Expert Gearhead
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 29 Likes
on
25 Posts
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_highpos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)

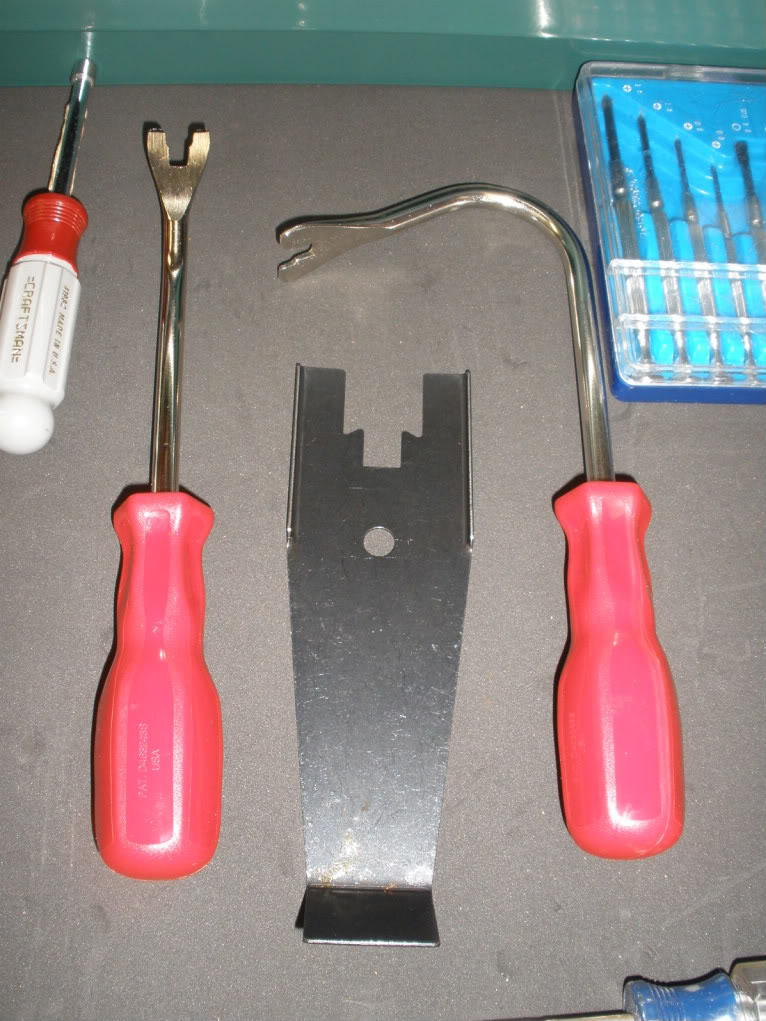

I have not done a write up on doing this, but guess I should add that to my list. All you really need is these tools.
![Name: PA140007.jpg
Views: 2553
Size: 149.0 KB](https://www.gmforum.com/attachments/2000-2005-90/30004d1501276130-front-door-panel-removal-pa140007.jpg)
I got these from Sears, but have also seen them at Autozone
If you need any more help, let me know and I'll see if I can dig up a few diagrams.
![Name: PA140007.jpg
Views: 2553
Size: 149.0 KB](https://www.gmforum.com/attachments/2000-2005-90/30004d1501276130-front-door-panel-removal-pa140007.jpg)
I got these from Sears, but have also seen them at Autozone
If you need any more help, let me know and I'll see if I can dig up a few diagrams.
#3
Member
Posts like a V-Tak
Thread Starter
Join Date: Oct 2008
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
![allenj3 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
thanks for your speedy reply! Ya I figured I would need that stuff ( I have most of it). If you wouldn't mind digging up the diagrams that would help me alot!
Thanks again!
Thanks again!
Last edited by allenj3; 02-11-2009 at 03:59 PM. Reason: gramatical error
#4
Retired Senior Admin
![](/images/badges/Gearhead.png)
Expert Gearhead
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 29 Likes
on
25 Posts
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_highpos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
OK, give me a little time here, I'm in the middle of something else but will then get that. It will be for a 97 but the clips should be close. I'm not sure though.
#5
Retired Senior Admin
![](/images/badges/Gearhead.png)
Expert Gearhead
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 29 Likes
on
25 Posts
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Danthurs is a name known to all](https://www.gmforum.com/images/reputation/reputation_highpos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Alright, I have this. I can't say for sure everything is in the same location on your year, but it should give you a good idea where everything is located. If you need anything else, just ask.
![Name: P2110009.jpg
Views: 2579
Size: 107.5 KB](https://www.gmforum.com/attachments/2000-2005-90/30000d1501276130-front-door-panel-removal-p2110009.jpg)
#6
Senior Member
Posts like a Corvette
Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Likes: 0
Received 0 Likes
on
0 Posts
![ddalder is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
To help a little here, in the 2000+ Bonneville you don't have to remove any of the switches or controls. These remain on the door panel and there is a connector behind the panel that unplugs and allows you to remove the door panel intact. The only piece you need to remove before the panel itself is the trim around the door handle.
There are also no screws to remove to get the panel off.
Retainers are a two-piece fastener. One half remains on the door panel and the other remains in the sheet metal of the door. You need to seperate the door panel away from the door itself by carefully prying all around the outer edge. It is not uncommon to hear a loud snap as the retainer releases. This is by design. Once all the retainers are clear of their mating piece on the door itself, you need to lift up the door panel. There are two spring steel retainers that will slide out of plastic attaching blocks screwed onto the door itself.
To reinstall the door panel, you will find two spring steel retainers "flopping" in door panel cavities just behind the door handle. You will need to remove these and slide them back into the groves of the plastic attaching blocks screwed to the door. Installation of the door panel at this point is basically the reverse of removal.
There are also no screws to remove to get the panel off.
Retainers are a two-piece fastener. One half remains on the door panel and the other remains in the sheet metal of the door. You need to seperate the door panel away from the door itself by carefully prying all around the outer edge. It is not uncommon to hear a loud snap as the retainer releases. This is by design. Once all the retainers are clear of their mating piece on the door itself, you need to lift up the door panel. There are two spring steel retainers that will slide out of plastic attaching blocks screwed onto the door itself.
To reinstall the door panel, you will find two spring steel retainers "flopping" in door panel cavities just behind the door handle. You will need to remove these and slide them back into the groves of the plastic attaching blocks screwed to the door. Installation of the door panel at this point is basically the reverse of removal.
Last edited by ddalder; 02-11-2009 at 04:40 PM.
