Switching SE Front Seat Backs
#1
Member
Posts like a V-Tak
Thread Starter
Join Date: Jun 2003
Posts: 98
Likes: 0
Received 0 Likes
on
0 Posts
![mikeblue94 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I'm thinking of switching the leather driver and passenger seat backs on my 94SE as the drivers side has split in the area by my right shoulder blade and the passengers is still in good shape. Has anyone done this and and if so can they provide any tips?
Thanks,
Mike
Thanks,
Mike
#4
Senior Member
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I removed the seat cover from my parts car on Saturday. Not too bad of a job except for the removal of the headrest. It took a bit but I figured it out. There'* a few hog rings that need to be removed but the rest is just compressing the foam to slide off. It'* kinda like taking off a tight fitting shirt.
I can take some pics of the naked seat tonight if you need more help.
I can take some pics of the naked seat tonight if you need more help.
#5
Member
Posts like a V-Tak
Thread Starter
Join Date: Jun 2003
Posts: 98
Likes: 0
Received 0 Likes
on
0 Posts
![mikeblue94 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
To all who responded thanks.
Randman, I think for right now I'm just going to switch out the backs if thats possible and that'* where I need the help. I think I can get to the pivot bolts but I'm not sure about the lever beside the bottom cushion that allows me to tilt the seat back back.
I don't want to screw up any linkage. I guess it might be easier to go ahead and remove the torn leather covering so I can get to everything easier but I'm afarid I'll tear it worse taking it off and putting it back on.
Any thoughts.
Thanks,
Mike
Randman, I think for right now I'm just going to switch out the backs if thats possible and that'* where I need the help. I think I can get to the pivot bolts but I'm not sure about the lever beside the bottom cushion that allows me to tilt the seat back back.
I don't want to screw up any linkage. I guess it might be easier to go ahead and remove the torn leather covering so I can get to everything easier but I'm afarid I'll tear it worse taking it off and putting it back on.
Any thoughts.
Thanks,
Mike
#6
Senior Member
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Taking the seat cover will be substantially easier than the entire back. The pivot points are riveted in instead of bolted, I believe. Nothing I would like to do. Let me get some pics for you so you can see the anatomy of the seat and cover.
It would be very difficult to tear the leather. It is layered with foam padding and it pretty thick. You will have to be carefull with the stitches though. It looks like there was some hand sewing involved but primarily on the bottom cover.
It would be very difficult to tear the leather. It is layered with foam padding and it pretty thick. You will have to be carefull with the stitches though. It looks like there was some hand sewing involved but primarily on the bottom cover.
#7
Senior Member
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Pardon me, the pivot points are bolts, not rivets. Here are some pics of the seat disassembled. Keep in mind that this is the passenger'* seat. The descriptions will reference the left (console side) and right (door side) of the seats:
Left side pivot bolt
![Name: DSC01010.jpg
Views: 54
Size: 50.4 KB](https://www.gmforum.com/attachments/1992-1999-91/78453d1501368763-switching-se-front-seat-backs-dsc01010.jpg)

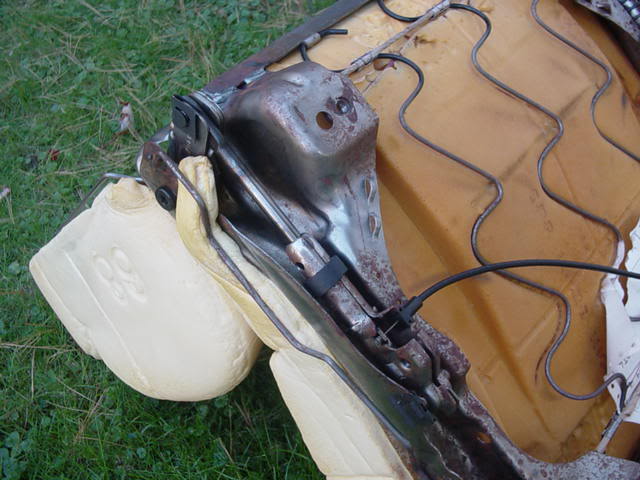

Left side recline fastener and shock(?):
![Name: DSC01011.jpg
Views: 59
Size: 54.1 KB](https://www.gmforum.com/attachments/1992-1999-91/78454d1501368763-switching-se-front-seat-backs-dsc01011.jpg)

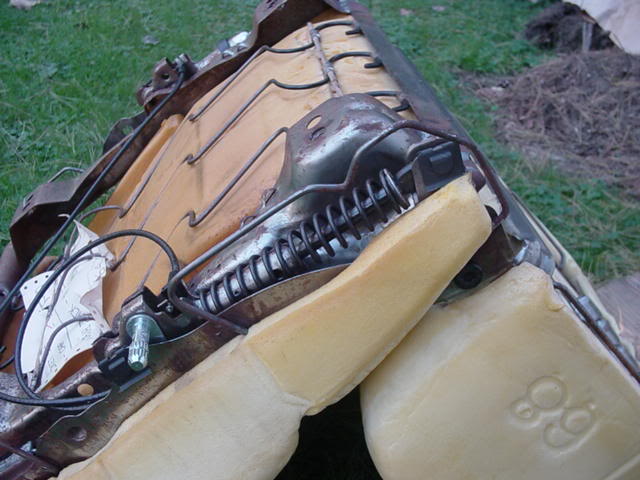

Right side:
![Name: DSC01012.jpg
Views: 50
Size: 53.4 KB](https://www.gmforum.com/attachments/1992-1999-91/78455d1501368763-switching-se-front-seat-backs-dsc01012.jpg)

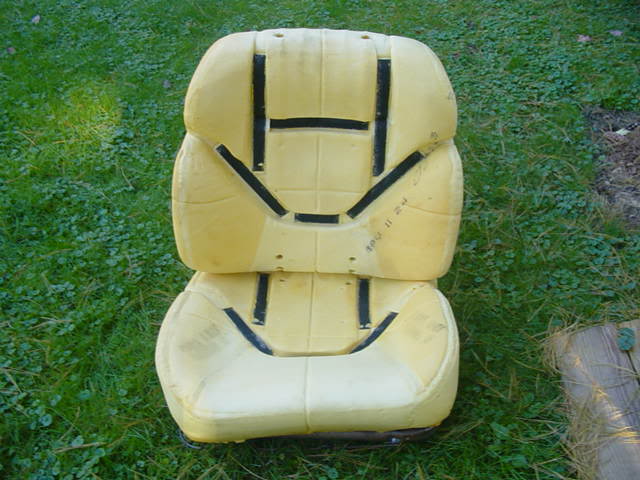

Naked seat:
![Name: DSC01013.jpg
Views: 42
Size: 54.5 KB](https://www.gmforum.com/attachments/1992-1999-91/78456d1501368763-switching-se-front-seat-backs-dsc01013.jpg)

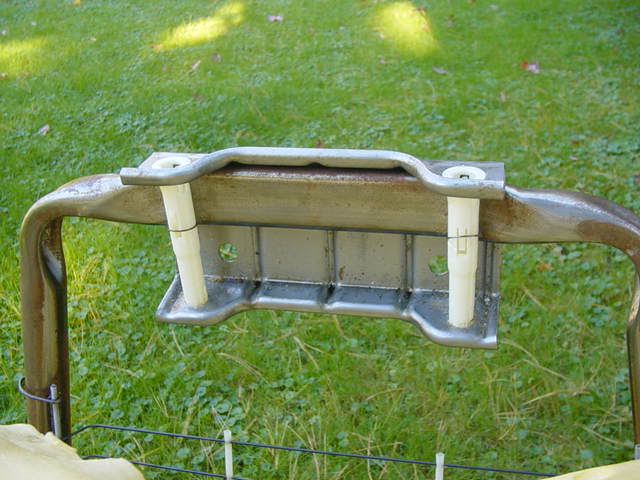

Front view of headrest sleeves with padding pulled back (hint: turn 90* to release headrests):
![Name: DSC01014.jpg
Views: 46
Size: 55.7 KB](https://www.gmforum.com/attachments/1992-1999-91/78457d1501368763-switching-se-front-seat-backs-dsc01014.jpg)
Seat cover inside out:
![Name: DSC01015.jpg
Views: 41
Size: 24.2 KB](https://www.gmforum.com/attachments/1992-1999-91/78458d1501368763-switching-se-front-seat-backs-dsc01015.jpg)

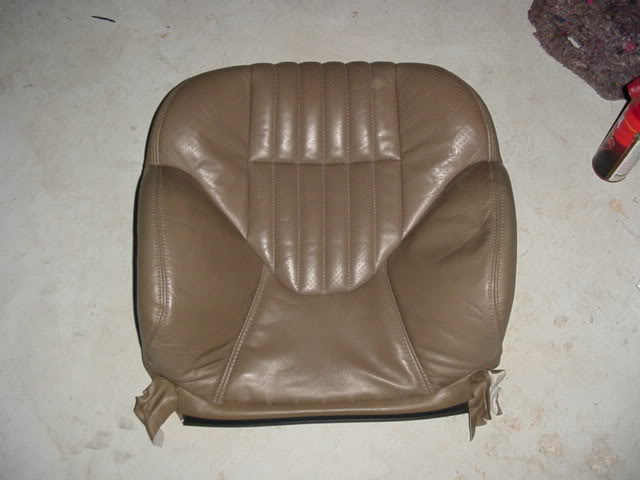

Seat cover right side out:
![Name: DSC01016.jpg
Views: 50
Size: 32.4 KB](https://www.gmforum.com/attachments/1992-1999-91/78459d1501368763-switching-se-front-seat-backs-dsc01016.jpg)
If you have the same color seats, this one is for sale. I can not use them to replace mine due to the bolsters. Bummer, too. It is in great shape.
Left side pivot bolt
![Name: DSC01010.jpg
Views: 54
Size: 50.4 KB](https://www.gmforum.com/attachments/1992-1999-91/78453d1501368763-switching-se-front-seat-backs-dsc01010.jpg)
Left side recline fastener and shock(?):
![Name: DSC01011.jpg
Views: 59
Size: 54.1 KB](https://www.gmforum.com/attachments/1992-1999-91/78454d1501368763-switching-se-front-seat-backs-dsc01011.jpg)
Right side:
![Name: DSC01012.jpg
Views: 50
Size: 53.4 KB](https://www.gmforum.com/attachments/1992-1999-91/78455d1501368763-switching-se-front-seat-backs-dsc01012.jpg)
Naked seat:
![Name: DSC01013.jpg
Views: 42
Size: 54.5 KB](https://www.gmforum.com/attachments/1992-1999-91/78456d1501368763-switching-se-front-seat-backs-dsc01013.jpg)
Front view of headrest sleeves with padding pulled back (hint: turn 90* to release headrests):
![Name: DSC01014.jpg
Views: 46
Size: 55.7 KB](https://www.gmforum.com/attachments/1992-1999-91/78457d1501368763-switching-se-front-seat-backs-dsc01014.jpg)
Seat cover inside out:
![Name: DSC01015.jpg
Views: 41
Size: 24.2 KB](https://www.gmforum.com/attachments/1992-1999-91/78458d1501368763-switching-se-front-seat-backs-dsc01015.jpg)
Seat cover right side out:
![Name: DSC01016.jpg
Views: 50
Size: 32.4 KB](https://www.gmforum.com/attachments/1992-1999-91/78459d1501368763-switching-se-front-seat-backs-dsc01016.jpg)
If you have the same color seats, this one is for sale. I can not use them to replace mine due to the bolsters. Bummer, too. It is in great shape.
#8
Senior Member
Certified GM nut
Join Date: Apr 2003
Location: Davison,Michigan
Posts: 1,867
Likes: 0
Received 0 Likes
on
0 Posts
![russianpolarbear is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Originally Posted by Twister97
So your saying the leather seats are only covered in leather? So I could pull some off a wrecked Bonne and slap them on mine, theoritically?
![Smile](https://www.gmforum.com/gm/images/smilies/smile.gif)
#10
Senior Member
Certified Car Nut
Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes
on
0 Posts
![1993 SLE is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Originally Posted by randman1
If you have the same color seats, this one is for sale. I can not use them to replace mine due to the bolsters. Bummer, too. It is in great shape.
