P0171/check engine/traction off. Related issue I think.
#1
Member
Posts like a V-Tak
Thread Starter
Join Date: Feb 2007
Location: Chicago
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
![bandit01 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I dont think one is causing the other but I believe that I have one common problem which is causing both the CEL and Traction off light to come on. I have done the Vac leak check and all is good. my idle is smooth running @ 800 rpms. I cleaned all my positive connectors and negative grounds and all is nice and clean. I have read on this board that a person had this same issue with the two lights but I forgot what he did to clear it up. I read that billboost had replaced his cables to get ride of p0171 but mine looked pretty well with slight corosian at the cable coming from the alt.
I will do a volt test but im not sure how to use the device due to it not being mine. what do I put the postive line on and the negative? What do I turn the **** in the middle to get the correct reading? If the alt is putting out the correct charge then I will replace the positive cables. I have 116k on the car bought from someone else so im not sure on the oxygen sensor but being that he put bosch plugs in it :( im sure he used a bosch oxygen sensor so I will change that asap as well.
I will do a volt test but im not sure how to use the device due to it not being mine. what do I put the postive line on and the negative? What do I turn the **** in the middle to get the correct reading? If the alt is putting out the correct charge then I will replace the positive cables. I have 116k on the car bought from someone else so im not sure on the oxygen sensor but being that he put bosch plugs in it :( im sure he used a bosch oxygen sensor so I will change that asap as well.
#2
![Default](https://www.gmforum.com/images/icons/icon1.gif)

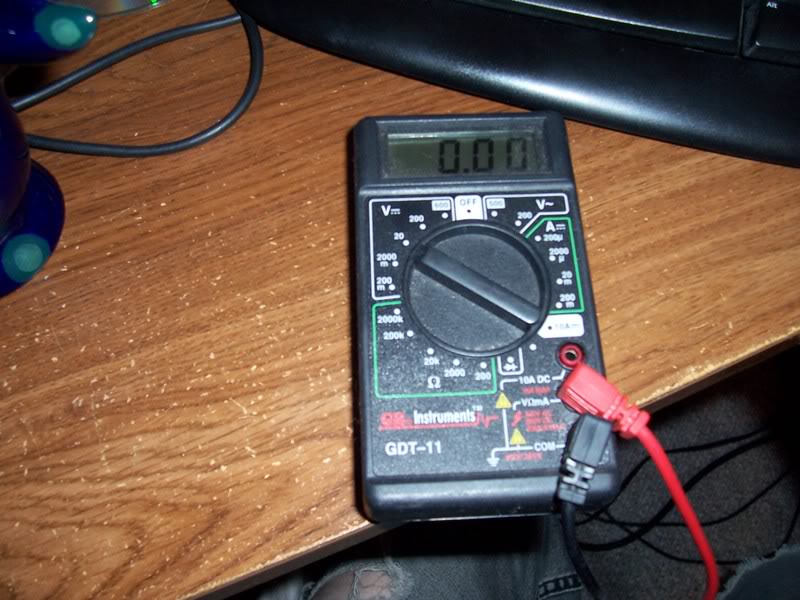

Set the **** like this:
![Name: VM.jpg
Views: 117
Size: 82.1 KB](https://www.gmforum.com/attachments/1992-1999-91/47284d1501306010-p0171-check-engine-traction-off-related-issue-i-think-vm.jpg)
Assuming it looks like that. Make sure you have it on the direct current side set to 20(since it'* a 12-14.4volt system).
If you're still not sure, we'll try to be a little more descript.
You can test by starting the car and putting the positive cable on the positive battery terminal, and the negative cable on any bare metal on the body, or the negative terminal. You should see a reading over 12.x volts. You can check the voltage of the battery with the car off, and then test it with it on to see the difference if you want to reassure yourself.
I'm afraid I can't answer the questions regarding the CEL codes....
![Name: VM.jpg
Views: 117
Size: 82.1 KB](https://www.gmforum.com/attachments/1992-1999-91/47284d1501306010-p0171-check-engine-traction-off-related-issue-i-think-vm.jpg)
Assuming it looks like that. Make sure you have it on the direct current side set to 20(since it'* a 12-14.4volt system).
If you're still not sure, we'll try to be a little more descript.
You can test by starting the car and putting the positive cable on the positive battery terminal, and the negative cable on any bare metal on the body, or the negative terminal. You should see a reading over 12.x volts. You can check the voltage of the battery with the car off, and then test it with it on to see the difference if you want to reassure yourself.
I'm afraid I can't answer the questions regarding the CEL codes....
#3
Senior Member
Certified Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I removed my MAF screen months and months ago before I had the K&N intake. Pretty much immediately I got a Check engine light (the code I scanned later was P0171), and my TC light came on as well. I couldn't figure out how they could be related, but I'm pretty sure it was. I forget the explanation someone gave me on why. I'll have to search...
#4
Member
Posts like a V-Tak
Thread Starter
Join Date: Feb 2007
Location: Chicago
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
![bandit01 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Originally Posted by bonnie94ssei
I removed my MAF screen months and months ago before I had the K&N intake. Pretty much immediately I got a Check engine light (the code I scanned later was P0171), and my TC light came on as well. I couldn't figure out how they could be related, but I'm pretty sure it was. I forget the explanation someone gave me on why. I'll have to search...
#5
Senior Member
Certified Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I got rid of the light by putting the MAF screen back in.
That solved both lights. I knew I had a vacuum leak at the EGR tube, and I thought removing the MAF probably pushed me over the edge. It could have been just the horrible rough idle I had.
This is a quote from the thread I had when I removed the MAF and got the lights. IDK of the accuracy of it or if it was my problem. And come to think about it, IIRC, when I pulled the codes after this happened, one of them may have been something with low voltage.
![Wink](https://www.gmforum.com/gm/images/smilies/icon_wink.gif)
This is a quote from the thread I had when I removed the MAF and got the lights. IDK of the accuracy of it or if it was my problem. And come to think about it, IIRC, when I pulled the codes after this happened, one of them may have been something with low voltage.
The traction control issue happened on my bonne too. To my understanding, VIA Alldata at school, the condition of the light to engage is a problem with the engine dropping below a certain voltage. I used to have something printed that said everything exactly, but it was on the TSB section of it
Sorry I couldn't be of more help, but once I cleaned my MAF, and it stopped idling rough, then it stopped misfiring, which made the volt gauge go back to 14-15 where it usually sits while running, and the light no longer comes back.
It'* tied to the issue of the rough idling / low voltage due to that
Sorry I couldn't be of more help, but once I cleaned my MAF, and it stopped idling rough, then it stopped misfiring, which made the volt gauge go back to 14-15 where it usually sits while running, and the light no longer comes back.
It'* tied to the issue of the rough idling / low voltage due to that
#6
Member
Posts like a V-Tak
Thread Starter
Join Date: Feb 2007
Location: Chicago
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
![bandit01 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
whats IIRC? :? I will know more when I check on the voltage of the alt. I removed my screen a few months ago but I still have the OEM style filter in there. I will work backwords towards replacing the screen after I check on the battery cables and the oxygen sensor.
#7
Senior Member
Certified Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
IIRC = If I Recall Correctly
I still had my OEM airbox when I removed mine too, which was probably the reason the idle suffered. Some don't have issues when removing them though.
I still had my OEM airbox when I removed mine too, which was probably the reason the idle suffered. Some don't have issues when removing them though.
#8
DINOSAURUS BOOSTUS
![](/images/badges/Gearhead.png)
Expert Gearhead
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Hi Bandit01
I've referred your other post here. Let'* recap. You are getting a P0171 and mention following my lead on clearing it up. Since...I've learned more.
The P0171 code is the O2 sensor reading properly. The pcm is adding fuel to the engine at a rate above the expected amount and therefore is telling you the fueling is out of spec.
The MIL you see is because it take 2 consecutive starts with a lean condition for the light to come on and 3 consecutive starts without the problem for the light to go back off.
You mention a little corrosion on one battery cable. Did you remove the boots by the battery to inspect the cables? If not.. this is your first step.
When you cleaned..did you clean the block where the grounding battery cable attaches to it? If not..this is the next step.
Have you removed and cleaned the ground at the back of the block by the oil pressure sender? This is the main ground for the sensors. If not..this is step 3
Have you checked and cleaned the MAF sensor? This sensor is listed as part of the diagnostic tricks. Unplug the sensor and go for a drive..does the CEL come back on? Is the sensor dirty or bad?
Another possibility is to check the connection at the evap purge valve. This is the black square item with two vacuum lines and one connector behind the alternator. Make sure the vacuum line from the TB does NOT connect to the fitting on the evap purge valve that is labeled "CAN".
I've referred your other post here. Let'* recap. You are getting a P0171 and mention following my lead on clearing it up. Since...I've learned more.
The P0171 code is the O2 sensor reading properly. The pcm is adding fuel to the engine at a rate above the expected amount and therefore is telling you the fueling is out of spec.
The MIL you see is because it take 2 consecutive starts with a lean condition for the light to come on and 3 consecutive starts without the problem for the light to go back off.
You mention a little corrosion on one battery cable. Did you remove the boots by the battery to inspect the cables? If not.. this is your first step.
When you cleaned..did you clean the block where the grounding battery cable attaches to it? If not..this is the next step.
Have you removed and cleaned the ground at the back of the block by the oil pressure sender? This is the main ground for the sensors. If not..this is step 3
Have you checked and cleaned the MAF sensor? This sensor is listed as part of the diagnostic tricks. Unplug the sensor and go for a drive..does the CEL come back on? Is the sensor dirty or bad?
Another possibility is to check the connection at the evap purge valve. This is the black square item with two vacuum lines and one connector behind the alternator. Make sure the vacuum line from the TB does NOT connect to the fitting on the evap purge valve that is labeled "CAN".
#9
Member
Posts like a V-Tak
Thread Starter
Join Date: Feb 2007
Location: Chicago
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
![bandit01 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Originally Posted by BillBoost37
Hi Bandit01
I've referred your other post here. Let'* recap. You are getting a P0171 and mention following my lead on clearing it up. Since...I've learned more.
The P0171 code is the O2 sensor reading properly. The pcm is adding fuel to the engine at a rate above the expected amount and therefore is telling you the fueling is out of spec.
The MIL you see is because it take 2 consecutive starts with a lean condition for the light to come on and 3 consecutive starts without the problem for the light to go back off.
I've referred your other post here. Let'* recap. You are getting a P0171 and mention following my lead on clearing it up. Since...I've learned more.
The P0171 code is the O2 sensor reading properly. The pcm is adding fuel to the engine at a rate above the expected amount and therefore is telling you the fueling is out of spec.
The MIL you see is because it take 2 consecutive starts with a lean condition for the light to come on and 3 consecutive starts without the problem for the light to go back off.
You mention a little corrosion on one battery cable. Did you remove the boots by the battery to inspect the cables? If not.. this is your first step.
When you cleaned..did you clean the block where the grounding battery cable attaches to it? If not..this is the next step.
Have you removed and cleaned the ground at the back of the block by the oil pressure sender? This is the main ground for the sensors. If not..this is step 3
When you cleaned..did you clean the block where the grounding battery cable attaches to it? If not..this is the next step.
Have you removed and cleaned the ground at the back of the block by the oil pressure sender? This is the main ground for the sensors. If not..this is step 3
Have you checked and cleaned the MAF sensor? This sensor is listed as part of the diagnostic tricks. Unplug the sensor and go for a drive..does the CEL come back on? Is the sensor dirty or bad?
Another possibility is to check the connection at the evap purge valve. This is the black square item with two vacuum lines and one connector behind the alternator. Make sure the vacuum line from the TB does NOT connect to the fitting on the evap purge valve that is labeled "CAN".
#10
DINOSAURUS BOOSTUS
![](/images/badges/Gearhead.png)
Expert Gearhead
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Having a good day or a bad day.. P0171 is persistant and one or two seconds w/o the light is merely it'* way of antagonizing you.
Honestly.. do all the cables.. after checking that evap.
You shouldn't pull the connectors when the car is running. Don't pull the TPS, only the MAF.
Honestly.. do all the cables.. after checking that evap.
You shouldn't pull the connectors when the car is running. Don't pull the TPS, only the MAF.
