New pads/rotors installed w/pics....56k beware
#1
Senior Member
Posts like a 4 Banger
Thread Starter
Join Date: Oct 2003
Location: SW Indiana
Posts: 133
Likes: 0
Received 0 Likes
on
0 Posts
![tumbleweed is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)

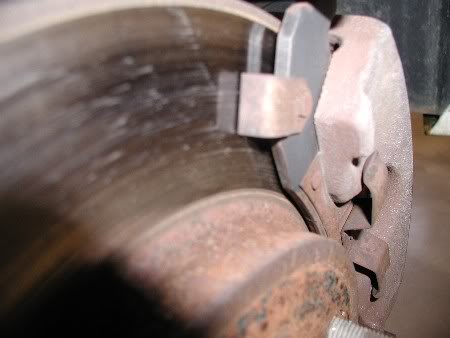

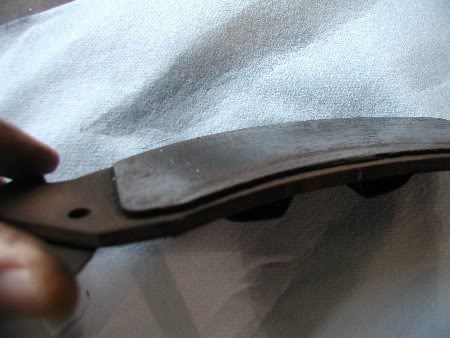

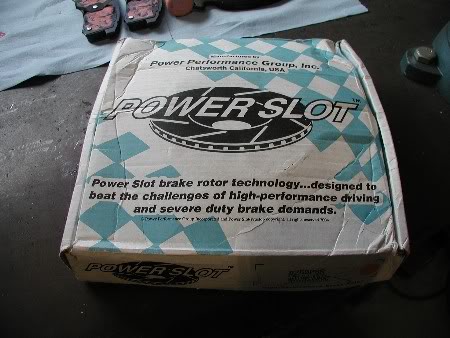

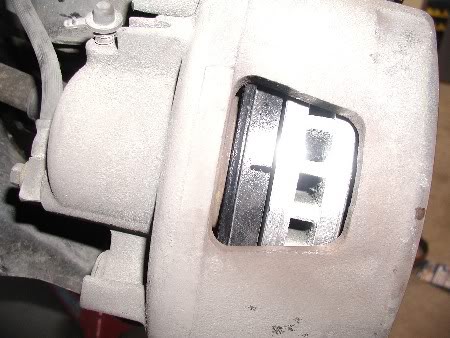

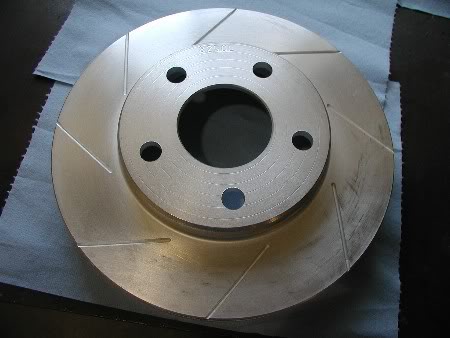

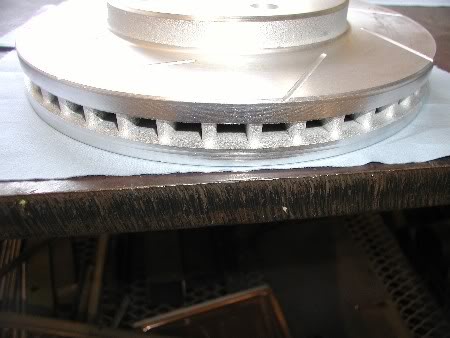

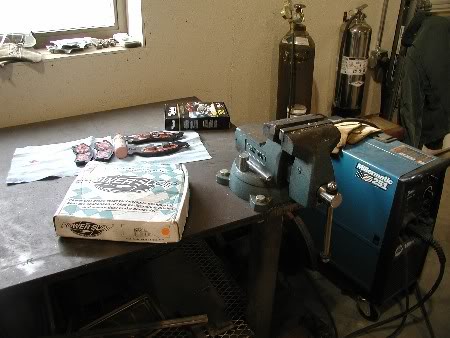

Installed new Power Slot rotors and Raybestos Quiet Stop pads on the '96 SSE today. Car has 196,000 on the clock so this brake set should get me up around 300,000. How'* that for optimism!

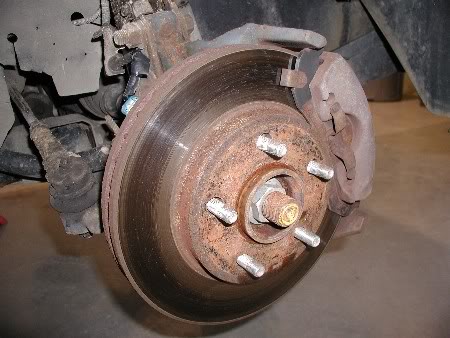

![Name: P1010067.jpg
Views: 144
Size: 38.6 KB](https://www.gmforum.com/attachments/1992-1999-91/37229d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010067.jpg)
![Name: P1010068.jpg
Views: 138
Size: 20.4 KB](https://www.gmforum.com/attachments/1992-1999-91/37230d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010068.jpg)
![Name: P1010070.jpg
Views: 146
Size: 29.5 KB](https://www.gmforum.com/attachments/1992-1999-91/37231d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010070.jpg)

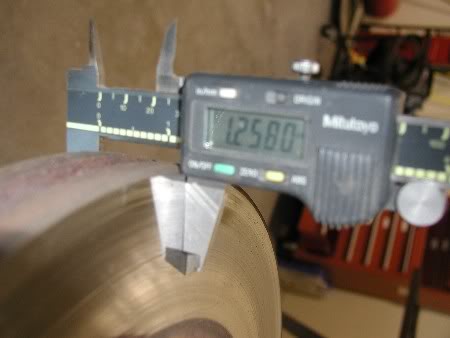

![Name: P1010073.jpg
Views: 135
Size: 18.1 KB](https://www.gmforum.com/attachments/1992-1999-91/37232d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010073.jpg)
![Name: P1010075.jpg
Views: 160

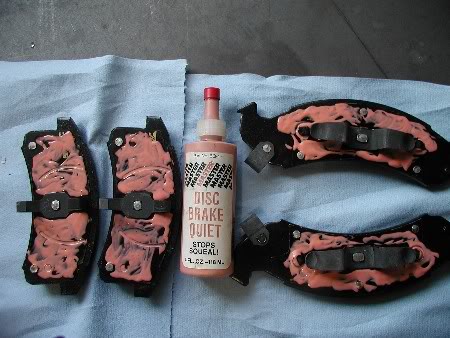

Size: 42.8 KB](https://www.gmforum.com/attachments/1992-1999-91/37233d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010075.jpg)
![Name: P1010076.jpg
Views: 147

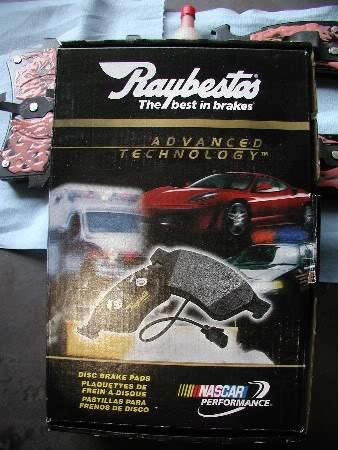

Size: 48.9 KB](https://www.gmforum.com/attachments/1992-1999-91/37234d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010076.jpg)
![Name: P1010078.jpg
Views: 131
Size: 37.1 KB](https://www.gmforum.com/attachments/1992-1999-91/37235d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010078.jpg)

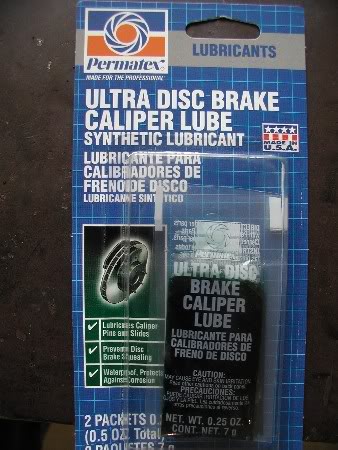

![Name: P1010083.jpg
Views: 129
Size: 46.1 KB](https://www.gmforum.com/attachments/1992-1999-91/37236d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010083.jpg)
![Name: P1010086.jpg
Views: 136

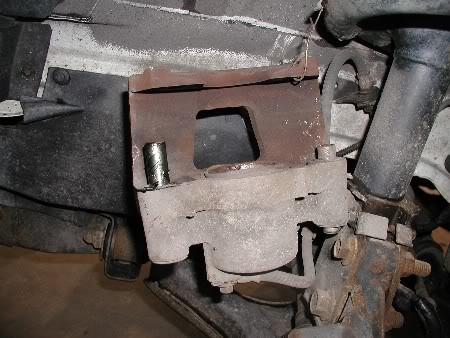

Size: 44.9 KB](https://www.gmforum.com/attachments/1992-1999-91/37237d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010086.jpg)
![Name: P1010088.jpg
Views: 132
Size: 36.3 KB](https://www.gmforum.com/attachments/1992-1999-91/37238d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010088.jpg)
![Name: P1010090.jpg
Views: 139
Size: 38.8 KB](https://www.gmforum.com/attachments/1992-1999-91/37239d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010090.jpg)
![Name: P1010091.jpg
Views: 139
Size: 28.5 KB](https://www.gmforum.com/attachments/1992-1999-91/37240d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010091.jpg)
![Name: P1010092.jpg
Views: 158
Size: 26.4 KB](https://www.gmforum.com/attachments/1992-1999-91/37241d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010092.jpg)
![Name: P1010094.jpg
Views: 126

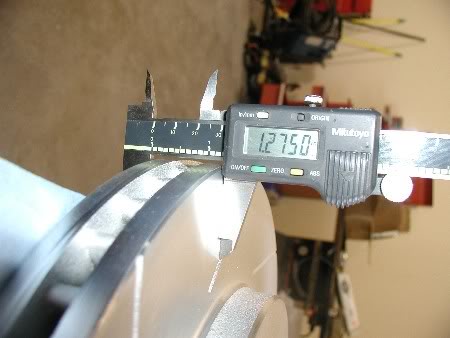

Size: 24.3 KB](https://www.gmforum.com/attachments/1992-1999-91/37242d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010094.jpg)
![Name: P1010098.jpg
Views: 150

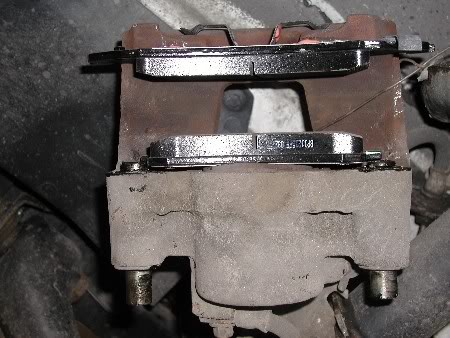

Size: 43.0 KB](https://www.gmforum.com/attachments/1992-1999-91/37243d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010098.jpg)
![Name: P1010099.jpg
Views: 129

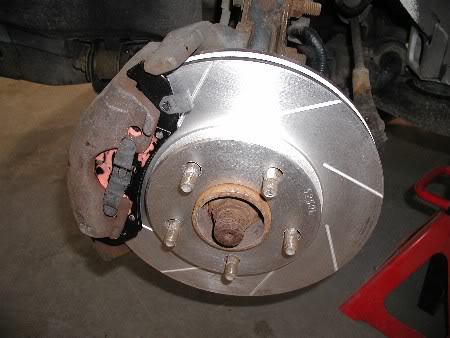

Size: 33.3 KB](https://www.gmforum.com/attachments/1992-1999-91/37244d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010099.jpg)
![Name: P1010102.jpg
Views: 149
Size: 38.8 KB](https://www.gmforum.com/attachments/1992-1999-91/37245d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010102.jpg)
![Name: P1010067.jpg
Views: 144
Size: 38.6 KB](https://www.gmforum.com/attachments/1992-1999-91/37229d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010067.jpg)
![Name: P1010068.jpg
Views: 138
Size: 20.4 KB](https://www.gmforum.com/attachments/1992-1999-91/37230d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010068.jpg)
![Name: P1010070.jpg
Views: 146
Size: 29.5 KB](https://www.gmforum.com/attachments/1992-1999-91/37231d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010070.jpg)
![Name: P1010073.jpg
Views: 135
Size: 18.1 KB](https://www.gmforum.com/attachments/1992-1999-91/37232d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010073.jpg)
![Name: P1010075.jpg
Views: 160
Size: 42.8 KB](https://www.gmforum.com/attachments/1992-1999-91/37233d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010075.jpg)
![Name: P1010076.jpg
Views: 147
Size: 48.9 KB](https://www.gmforum.com/attachments/1992-1999-91/37234d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010076.jpg)
![Name: P1010078.jpg
Views: 131
Size: 37.1 KB](https://www.gmforum.com/attachments/1992-1999-91/37235d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010078.jpg)
![Name: P1010083.jpg
Views: 129
Size: 46.1 KB](https://www.gmforum.com/attachments/1992-1999-91/37236d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010083.jpg)
![Name: P1010086.jpg
Views: 136
Size: 44.9 KB](https://www.gmforum.com/attachments/1992-1999-91/37237d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010086.jpg)
![Name: P1010088.jpg
Views: 132
Size: 36.3 KB](https://www.gmforum.com/attachments/1992-1999-91/37238d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010088.jpg)
![Name: P1010090.jpg
Views: 139
Size: 38.8 KB](https://www.gmforum.com/attachments/1992-1999-91/37239d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010090.jpg)
![Name: P1010091.jpg
Views: 139
Size: 28.5 KB](https://www.gmforum.com/attachments/1992-1999-91/37240d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010091.jpg)
![Name: P1010092.jpg
Views: 158
Size: 26.4 KB](https://www.gmforum.com/attachments/1992-1999-91/37241d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010092.jpg)
![Name: P1010094.jpg
Views: 126
Size: 24.3 KB](https://www.gmforum.com/attachments/1992-1999-91/37242d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010094.jpg)
![Name: P1010098.jpg
Views: 150
Size: 43.0 KB](https://www.gmforum.com/attachments/1992-1999-91/37243d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010098.jpg)
![Name: P1010099.jpg
Views: 129
Size: 33.3 KB](https://www.gmforum.com/attachments/1992-1999-91/37244d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010099.jpg)
![Name: P1010102.jpg
Views: 149
Size: 38.8 KB](https://www.gmforum.com/attachments/1992-1999-91/37245d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010102.jpg)
![Name: P1010105.jpg
Views: 132

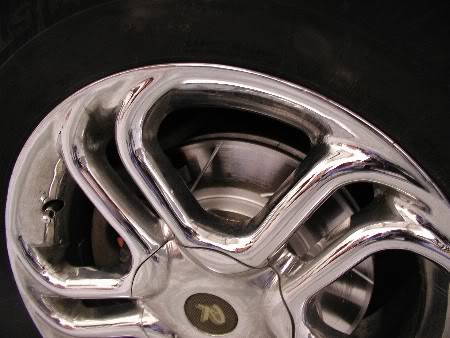

Size: 37.4 KB](https://www.gmforum.com/attachments/1992-1999-91/37246d1501288709-new-pads-rotors-installed-w-pics-56k-beware-p1010105.jpg)
#4
Senior Member
Posts like a 4 Banger
Thread Starter
Join Date: Oct 2003
Location: SW Indiana
Posts: 133
Likes: 0
Received 0 Likes
on
0 Posts
![tumbleweed is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I'm sure the Bendix would have been as good or maybe a better choice for pads. I was just kind of stuck on Quiet Stops and the service from Rock Auto can't be beat. I ordered them online on a Sunday evening and they were on my doorstep Tues. morning.
The rotors are not Cryo treated. Just the regular $87 dudes. There is a very good probability they will outlast the car anyway.
I hope the pics might help someone that is thinking about tackling their first brake job. Sometimes when you look at the pictures it'* easier to say, "man that doesn't look to tough, I could do that".
The rotors are not Cryo treated. Just the regular $87 dudes. There is a very good probability they will outlast the car anyway.
I hope the pics might help someone that is thinking about tackling their first brake job. Sometimes when you look at the pictures it'* easier to say, "man that doesn't look to tough, I could do that".
#5
Senior Member
Posts like a Northstar
Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Likes: 0
Received 0 Likes
on
0 Posts
![Barry is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Originally Posted by tumbleweed
I hope the pics might help someone that is thinking about tackling their first brake job. Sometimes when you look at the pictures it'* easier to say, "man that doesn't look to tough, I could do that".
![Wink](https://www.gmforum.com/gm/images/smilies/wink.gif)
#6
Senior Member
Posts like a Northstar
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Originally Posted by tumbleweed
Installed new Power Slot rotors and Raybestos Quiet Stop pads on the '96 SSE today. Car has 196,000 on the clock so this brake set should get me up around 300,000. How'* that for optimism!
]
]
#7
Senior Member
Posts like a 4 Banger
Thread Starter
Join Date: Oct 2003
Location: SW Indiana
Posts: 133
Likes: 0
Received 0 Likes
on
0 Posts
![tumbleweed is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Originally Posted by Barry
I've bookmarked the your post for the future. Thanks ![Wink](https://www.gmforum.com/gm/images/smilies/wink.gif)
![Wink](https://www.gmforum.com/gm/images/smilies/wink.gif)

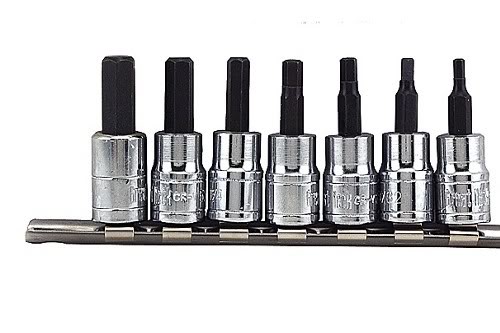

When you get ready to pull your front calipers, make sure you have a 3/8" hex wrench (allen wrench) The caliper mounting bolts have a 3/8" hex head. The socket on the head of the bolt points inward toward the fender liner (away from the tire). There are two mounting bolts on each caliper. I use a 3/8 drive socket type hex wrench like these in the picture. You can buy them individually at auto zone or in a set. I think they are about $5.00 for the single.
![Name: Hes.jpg
Views: 131
Size: 30.2 KB](https://www.gmforum.com/attachments/1992-1999-91/37187d1501288635-new-pads-rotors-installed-w-pics-56k-beware-hes.jpg)
#8
Senior Member
Posts like a 4 Banger
Thread Starter
Join Date: Oct 2003
Location: SW Indiana
Posts: 133
Likes: 0
Received 0 Likes
on
0 Posts
![tumbleweed is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Originally Posted by imidazol
I was hoping you were doing the rears too. I want pictures for those.
If you haven't checked your rear brakes for a while its not a bad idea to pull the drums and check for leaking slave cylinders and wet oily shoes. If your rear brakes are lazy the front ones have to do all the work and that can cause warped rotors up front.
#9
Junior Member
Posts like a Ricer Type-R
Join Date: Dec 2007
Location: Upstate New York
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
![Dan1981 is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Did basically the same thing on my 97 SSEI Bonnie, when doing so found that that the caliper bleeding nut was seized up so i replaced the calipers too friend got me a new pair on his discount for $60 total, should last a bit longer now. I gotta say 175k and STILL running like a Raped Ape!!!! Happy New Year all
#10
Senior Member
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Nice job, and nice pictures.
Thank you for thinking to help others.

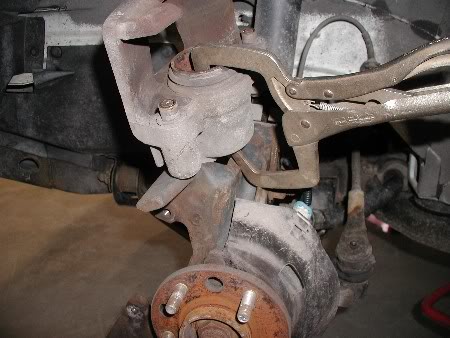

You may have done this, but not pictured it, but at this step in the process,
as you begin to depress the piston back into the bore, I open the caliper bleed screw. This flushes the sediment and old dirty fluid that has accumulated in the caliper out the bleeder and prevents the contamination from being pushed backwards through the valving into the master cylinder reservoir. If this is not done, it is not uncommon to see the master cylinder fail a few months after the front pads are replaced. If you are careful to only open the bleeder valve after a little pressure has been applied to the caliper piston and to close it when the piston is bottomed, but before pressure is released, you will not introduce air that requires you to bleed the brakes. (Although it is not a bad idea to flush the residual, old fluid and replace it with some cleaner fluid from the reservoir. And, with both road wheels off and the front end up, it is a perfect time to bleed the calipers anyway.)
![Very Happy](https://www.gmforum.com/gm/images/smilies/biggrin.gif)
You may have done this, but not pictured it, but at this step in the process,
![Name: P1010078.jpg
Views: 167
Size: 37.1 KB](https://www.gmforum.com/attachments/1992-1999-91/37185d1501288621-new-pads-rotors-installed-w-pics-56k-beware-p1010078.jpg)
as you begin to depress the piston back into the bore, I open the caliper bleed screw. This flushes the sediment and old dirty fluid that has accumulated in the caliper out the bleeder and prevents the contamination from being pushed backwards through the valving into the master cylinder reservoir. If this is not done, it is not uncommon to see the master cylinder fail a few months after the front pads are replaced. If you are careful to only open the bleeder valve after a little pressure has been applied to the caliper piston and to close it when the piston is bottomed, but before pressure is released, you will not introduce air that requires you to bleed the brakes. (Although it is not a bad idea to flush the residual, old fluid and replace it with some cleaner fluid from the reservoir. And, with both road wheels off and the front end up, it is a perfect time to bleed the calipers anyway.)
