Need special GM tool(s) to pull steering wheel?
#1
Senior Member
Posts like a Corvette
Thread Starter
Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Likes: 0
Received 0 Likes
on
0 Posts
![agrazela is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I may need to pull my steering wheel in order to investigate a problem with my turn signal switch (won't click off after a left turn).
According to my 1998 FSM, I need GM "J 38720 Side Screws" (for the puller?), and a "J 1859-03 Steering Wheel Ruler" (for purposes not described in the FSM ?!?).
So, do I really need these special tool(*), or will a rental puller from the local Autozone (or an E-Bay "universal") do the job?
If I do need the special tools, anyone got loaners?
EDIT: looking further into the manual, it seems I'll also need a "J 23653-SIR Lock Plate Compressor." Again, do I really need a special tool, or will an Autozone loaner (or E-Bay "universal") work?
EDIT2: I did find a thread talking about a similar problem to mine, but it didn't say what tools the guy used, what he found, or how (or if) he fixed it:
http://www.bonnevilleclub.com/forum/...ht=turn+signal
According to my 1998 FSM, I need GM "J 38720 Side Screws" (for the puller?), and a "J 1859-03 Steering Wheel Ruler" (for purposes not described in the FSM ?!?).
So, do I really need these special tool(*), or will a rental puller from the local Autozone (or an E-Bay "universal") do the job?
If I do need the special tools, anyone got loaners?
EDIT: looking further into the manual, it seems I'll also need a "J 23653-SIR Lock Plate Compressor." Again, do I really need a special tool, or will an Autozone loaner (or E-Bay "universal") work?
EDIT2: I did find a thread talking about a similar problem to mine, but it didn't say what tools the guy used, what he found, or how (or if) he fixed it:
http://www.bonnevilleclub.com/forum/...ht=turn+signal
#2
Senior Member
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
The parts house puller should do you fine. I've used them with no problems. Just be careful to disarm the airbags properly and handle it with proper care.
#3
![Default](https://www.gmforum.com/images/icons/icon1.gif)

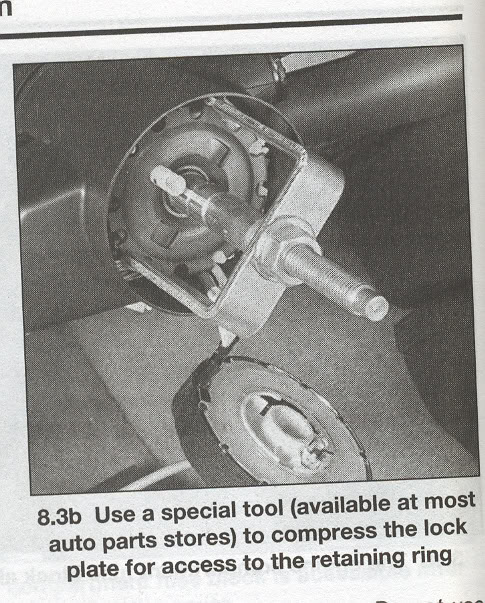

I agree that the regular puller will work fine. There are some other things that will make your life a lot easier. There is a tool to compress the spring loaded lock plate. Once it is compressed, the clip is quite easy to remove, although spring pliers are handy. A budget auto parts store (like Princess Auto in Canada) will have these quite cheap and you will be surprised how often you will use them. I have a picture of the compresser tool, but I don't know how to attach it.
#4
Senior Member
True Car Nut
![Default](https://www.gmforum.com/images/icons/icon1.gif)
Originally Posted by Phill
I have a picture of the compresser tool, but I don't know how to attach it.
Resize your photo to a width of 700 pixels, save it as a jpeg with a file size no larger than 250kb, then open a free account at http://www.photobucket.com Upload your pic, then copy the image link under the pic in Photobucket and paste it into your thread here. It should look like:
Resizing to 600 or 700 pixel width prevents folks having to scroll left and right to read threads containing wider images.
#6
Senior Member
Posts like a 4 Banger
![Default](https://www.gmforum.com/images/icons/icon1.gif)
I anted up the bucks for the plate compressor after trying to pull the snap ring off with a couple of screwdrivers and pliers, snap ring zinged outa the car at warp speed and landed on the front lawn, its still there, somewhere. :? The plate compressor tool was, I think, a Lisle brand and was under $15. Steering wheel puller was from OTC and kinda expensive but I justified it by the number of times I would need it. I know there are cheaper ones out there and if you don't want to add one to you collection, the loaners work fine. And watch out for those airbags, would be a real drag to hear the POP!!!
#7
Senior Member
Certified GM nut
Join Date: Mar 2007
Location: Yuma, AZ.
Posts: 1,937
Likes: 0
Received 0 Likes
on
0 Posts
![GXP_Vince is on a distinguished road](https://www.gmforum.com/images/reputation/reputation_pos.gif)
![Default](https://www.gmforum.com/images/icons/icon1.gif)
yeah be very careful with the whole sterring wheel assemble(airbags ect) also the ingition. I didnt put back the intgition right the first time put the whole thing together then had to take it back apart it sucked.
