For those of whom have had their SuperCharger Cover removed by a friend or just didnt pay attention to detail when removing it... heres some helpful information
1) L67 w/ Cover ON
![Name: SSPX0644.jpg
Views: 88
Size: 85.6 KB](https://www.gmforum.com/attachments/1992-1999-91/28388d1501273437-how-re-install-sc-cover-when-buddy-removes-you-p-sspx0644.jpg)
2) L67 w/ Cover OFF
![Name: SSPX0645.jpg
Views: 94
Size: 82.8 KB](https://www.gmforum.com/attachments/1992-1999-91/28389d1501273437-how-re-install-sc-cover-when-buddy-removes-you-p-sspx0645.jpg)
3) Hole by thumb and Protruding Piece on the bracked go together
![Name: SSPX0647.jpg
Views: 74
Size: 38.9 KB](https://www.gmforum.com/attachments/1992-1999-91/28390d1501273437-how-re-install-sc-cover-when-buddy-removes-you-p-sspx0647.jpg)
4) Pieces put together
![Name: SSPX0648.jpg
Views: 67
Size: 35.6 KB](https://www.gmforum.com/attachments/1992-1999-91/28391d1501273437-how-re-install-sc-cover-when-buddy-removes-you-p-sspx0648.jpg)
5) For easier installation hold to 45* angle when putting pieces in Pic 3 & 4 together
![Name: SSPX0649.jpg
Views: 93
Size: 79.8 KB](https://www.gmforum.com/attachments/1992-1999-91/28392d1501273437-how-re-install-sc-cover-when-buddy-removes-you-p-sspx0649.jpg)
6) If you run your wires over the cover like I do vs under the snout DO NOT forget to slide them back on top lol
![Name: SSPX0650.jpg
Views: 82
Size: 73.6 KB](https://www.gmforum.com/attachments/1992-1999-91/28393d1501273437-how-re-install-sc-cover-when-buddy-removes-you-p-sspx0650.jpg)

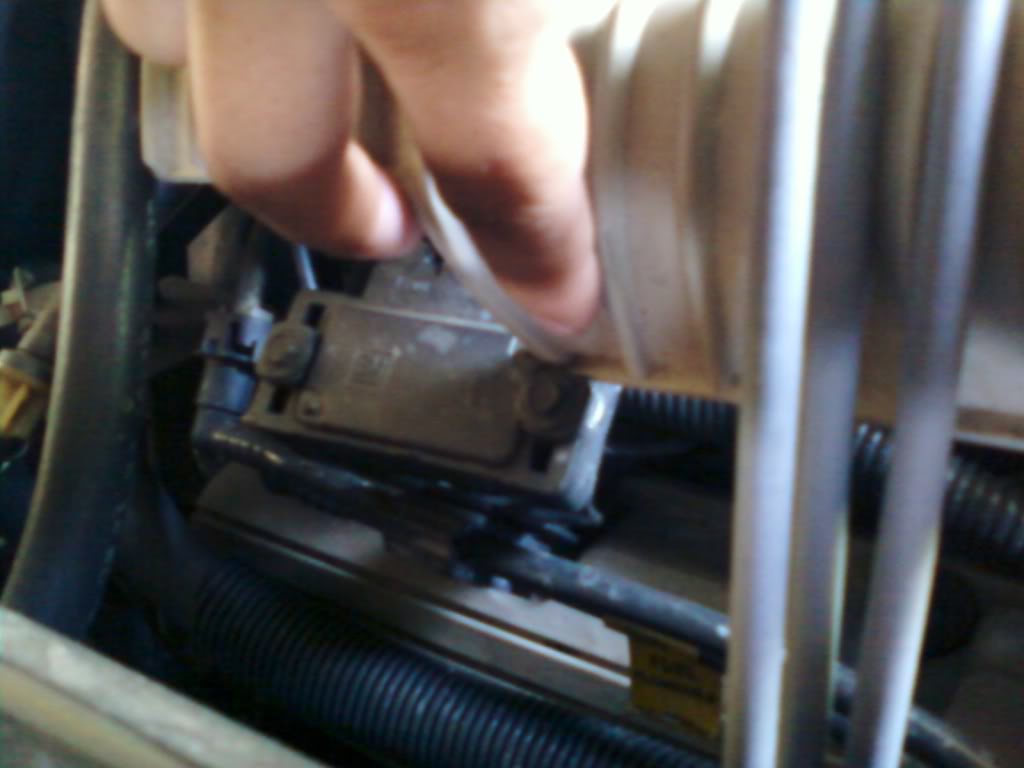

7) The cover will hit this plastic vacuum relay, box, part, thingy
![Name: SSPX0651.jpg
Views: 76
Size: 55.3 KB](https://www.gmforum.com/attachments/1992-1999-91/28394d1501273437-how-re-install-sc-cover-when-buddy-removes-you-p-sspx0651.jpg)

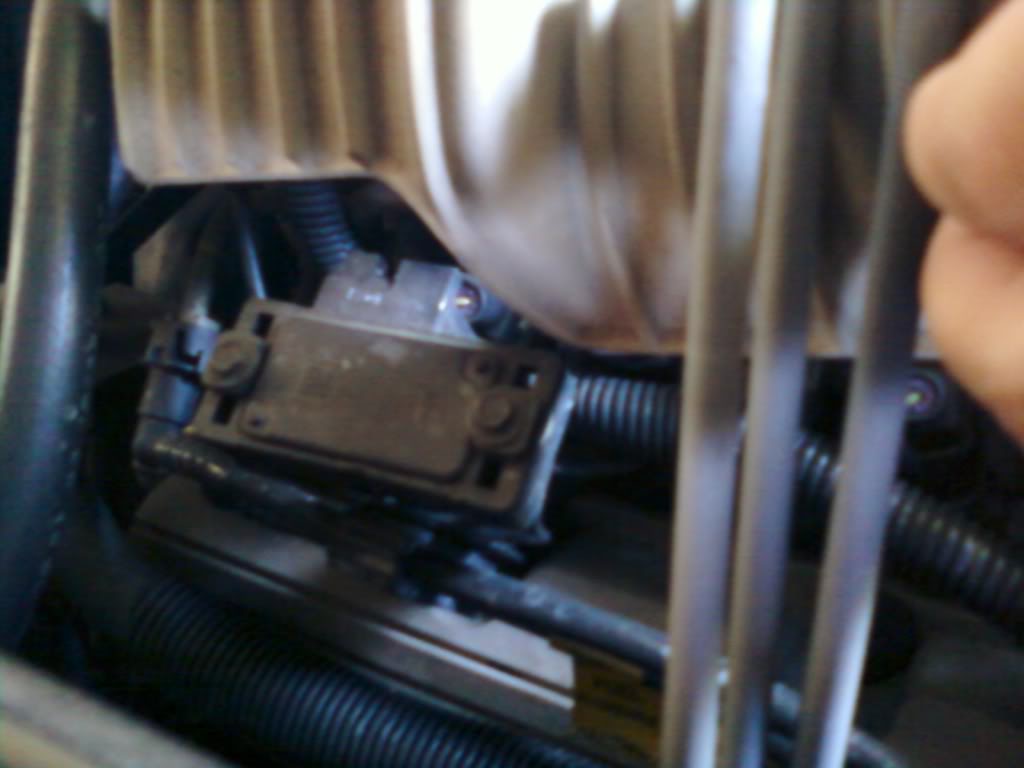

Flexing the sides of the cover together (inward) will allow the cover to slide past it, dont worry, the plastic is very pliable so feel free to move it and flex it to get it to fit flush
![Name: SSPX0652.jpg
Views: 82
Size: 54.8 KB](https://www.gmforum.com/attachments/1992-1999-91/28395d1501273437-how-re-install-sc-cover-when-buddy-removes-you-p-sspx0652.jpg)
9) Finished piece laying flat
![Name: SSPX0653.jpg
Views: 88
Size: 74.2 KB](https://www.gmforum.com/attachments/1992-1999-91/28396d1501273437-how-re-install-sc-cover-when-buddy-removes-you-p-sspx0653.jpg)
If you have any problems for further questions feel free to PM me
good luck
- TL
