1996 Bonneville SSEI Heater Blows cold Air and Hot air!!
#1
Junior Member
Posts like a Ricer Type-R
Thread Starter
Join Date: Apr 2009
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
1996 Bonneville SSEI Heater Blows cold Air and Hot air!!
Ever since the battery went dead in my car the heater hasn't worked right. The outside temperature flashes on the dash for a few seconds and so does the temperature readout on the auto climate control feature when you turn it on. Sometimes the heat works as it should , and other times you cant get it to work no matter what you do. I know it has something to do with the computer or the automatic climate control. Sometimes if it is not working, you can shut the car off and wait a couple minutes and then restart it and it will work. This is about to drive me nuts!! Anybody had this problem? I have tried killing the power to the computer in an effort to reset it, but that didn't work. Thanks in advance
Moved to 92-99 section -Todd
Moved to 92-99 section -Todd
#5
Sounds like you have a crack in your airmix actuator gear.
Probably a small crack which would explain the intermittent problem. It will get worse and eventually stay on full cold or full hot depending on the default settings.
So your next step is going to pull out your glove box liner. Should only be but a few screws holding in the glove box liner.

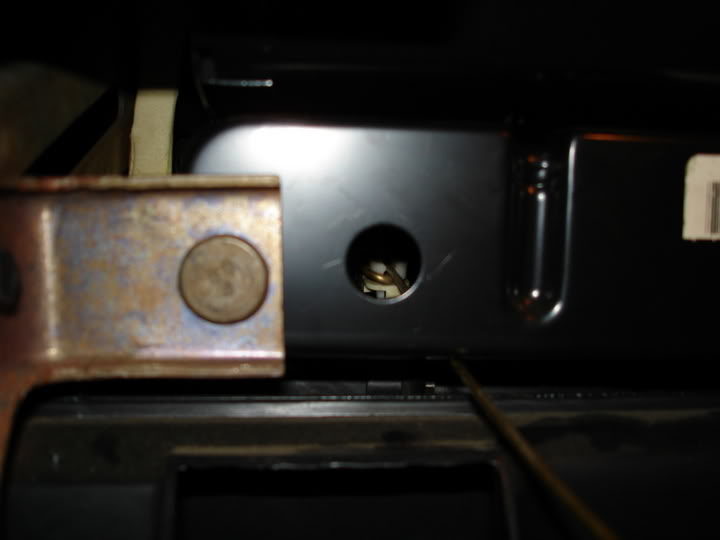

Now look for the small hole on the left of the dash support. Shine a light down there and turn on the car and move the temp control from all the way cold to hot and then back again. Do you see the arm moving?
If not than:
You will have to check this manually for airmix gear condition.
Look through the small hole on the left of the dash support shine a light down there and you will find the top of the airmix actuator. Look to where the metal blend door arm clips in the white airmix arm. Get yourself a long skinny screw driver and pop off the metal blend door arm from the airmix arm. Once the two are separated grab hold of the white arm and see if you can move it freely from left to right. If you can than you for sure have a crack in the gear and this has to be replaced.
Let us know what you find.
Probably a small crack which would explain the intermittent problem. It will get worse and eventually stay on full cold or full hot depending on the default settings.
So your next step is going to pull out your glove box liner. Should only be but a few screws holding in the glove box liner.
Now look for the small hole on the left of the dash support. Shine a light down there and turn on the car and move the temp control from all the way cold to hot and then back again. Do you see the arm moving?
If not than:
You will have to check this manually for airmix gear condition.
Look through the small hole on the left of the dash support shine a light down there and you will find the top of the airmix actuator. Look to where the metal blend door arm clips in the white airmix arm. Get yourself a long skinny screw driver and pop off the metal blend door arm from the airmix arm. Once the two are separated grab hold of the white arm and see if you can move it freely from left to right. If you can than you for sure have a crack in the gear and this has to be replaced.
Let us know what you find.
#7
Long read but will help to:
https://www.gmforum.com/t278411/
here is the full directions on how to replace the actuator if needed:
http://trialsnuts.com/ecc.pdf
here is how you recalibrate the arm of the airmix actuator once replaced:
https://www.gmforum.com/t278411/
here is the full directions on how to replace the actuator if needed:
http://trialsnuts.com/ecc.pdf
here is how you recalibrate the arm of the airmix actuator once replaced:
when you do replace the air mix actuator,
This will help you with calibration. Start by turning the temp to the maximum heat setting.
Wait until the actuator arm moves all the way to the right. Move the airmix door all the way to the right, hold it there, and then snap down the metal connecting rod to connect the actuator arm and airmix door arm.
Next turn the temperature to the maximum cool setting.
Watch the action of the actuator arm, connecting rod, and airmix door arm as a whole for smooth, quiet motion throughout the full range. Verify that the airmix door moves all the way to the left.
Then set your temperature to the desired setting. Turn off the ignition and restart the car. Either let it idle for a few minutes or take it for a test drive to verify that the ECC has stopped blinking. If it has, then you are set to enjoy air at the correct temperature again!
This will help you with calibration. Start by turning the temp to the maximum heat setting.
Wait until the actuator arm moves all the way to the right. Move the airmix door all the way to the right, hold it there, and then snap down the metal connecting rod to connect the actuator arm and airmix door arm.
Next turn the temperature to the maximum cool setting.
Watch the action of the actuator arm, connecting rod, and airmix door arm as a whole for smooth, quiet motion throughout the full range. Verify that the airmix door moves all the way to the left.
Then set your temperature to the desired setting. Turn off the ignition and restart the car. Either let it idle for a few minutes or take it for a test drive to verify that the ECC has stopped blinking. If it has, then you are set to enjoy air at the correct temperature again!
#9
When the battery is disconnected sometimes the gear in the air mix actuator meshes incorrectly with the other gear and brakes when you reconnect the battery. It cycles back and forth in normal operation upon start up of the car. When the gear brakes the A/C controller reads a fault and puts out a visual on the display making the display blink every time you start the car.
Tech tip on avoiding this in the future would be to turn off the A/C system before disconnecting the battery. This way when you reconnect the battery the air mix actuator will already be in the correct position.
